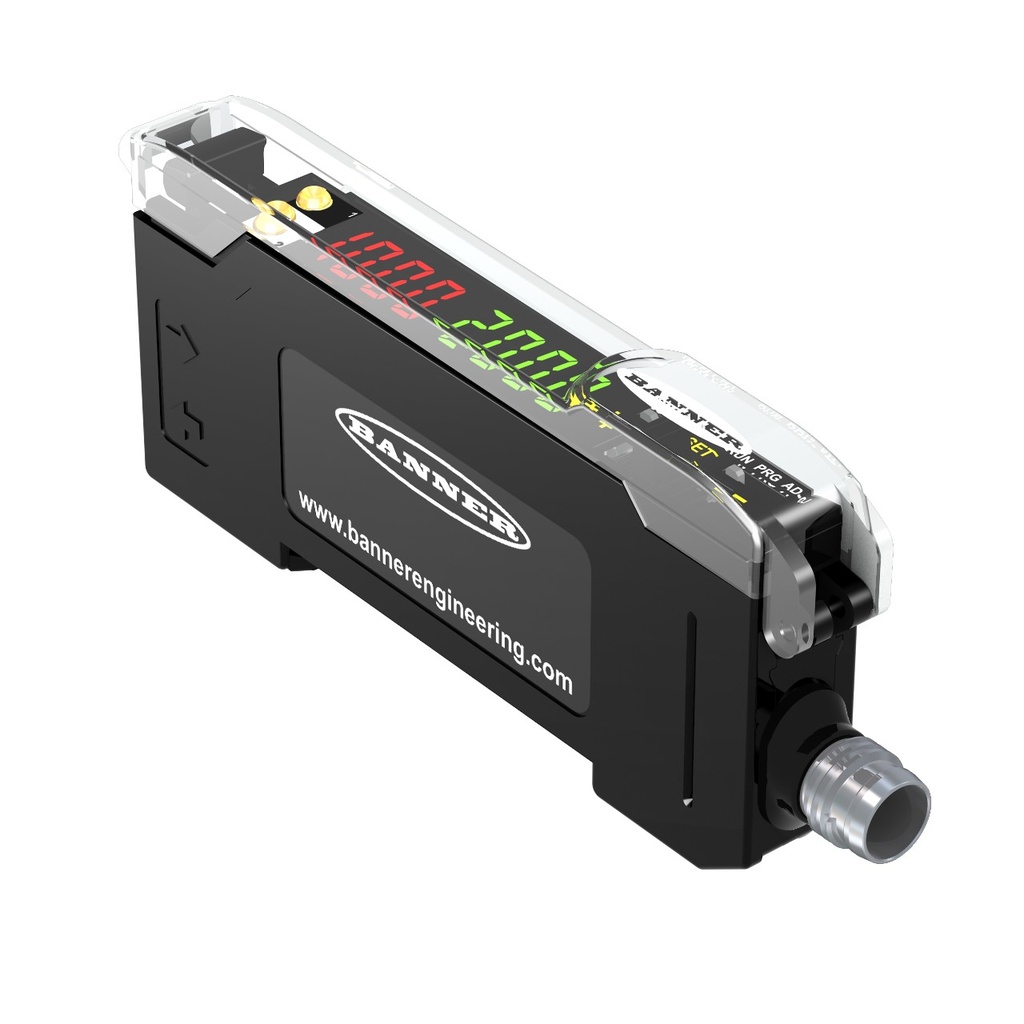

Representative photo. Please check item description for details.

DF-G3 IR Beam High Power Dual Display Fiber Amplifier (DF-G3IR-NI-Q7)

https://www.branom.com/web/image/product.template/60829/image_1920?unique=c26756c
(0 review)

Features:

  • DF-G3 IR Beam High Power Dual Display Fiber Amplifier
  • Range: Depends on fiber
  • Input 10-30 V dc
  • Outputs: 1 NPN and 4-20 mA Analog
  • Connection: Pico M8 5-pin Integral Connector
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 500 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP50
  • Repeatability (µs): 100 to 180
  • Housing Style: DIN Rail
  • Max Relative Humidity: 90% @ 60 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • Analog Output: 4 to 20 mA
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8
  • Number of Pins: 5
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Analog & Discrete
  • Min Response Time: .5 ms
  • Output Type (Specific): Analog & Discrete
  • Fiber Type: Glass Only
  • Color LED - Amplifiers: Infrared
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 1
  • Fiber Termination Type: T5 Termination
  • Feature: Crosstalk Avoidance: Yes
  • Indicator Type: Dual Digital Displays

$ 283.00 283.0 USD $ 283.00

$ 283.00

Not Available For Sale
