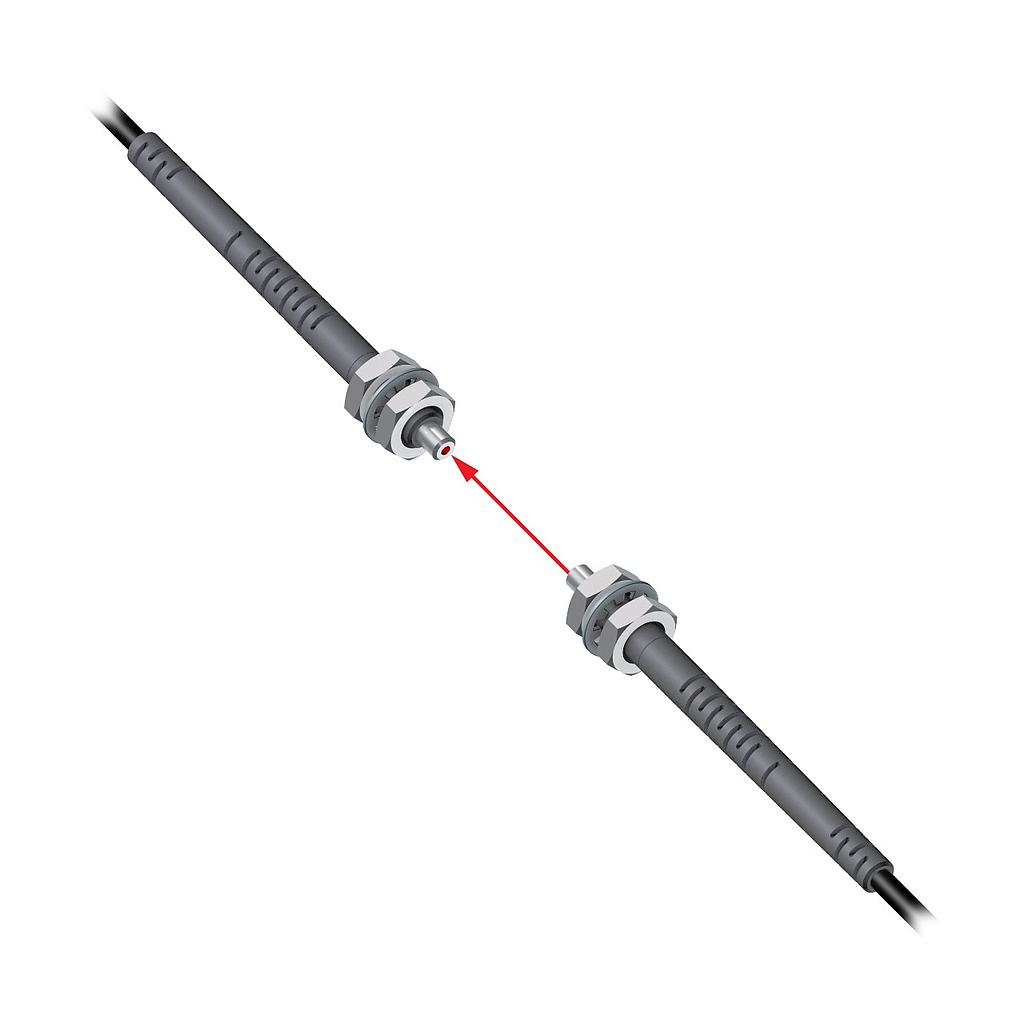

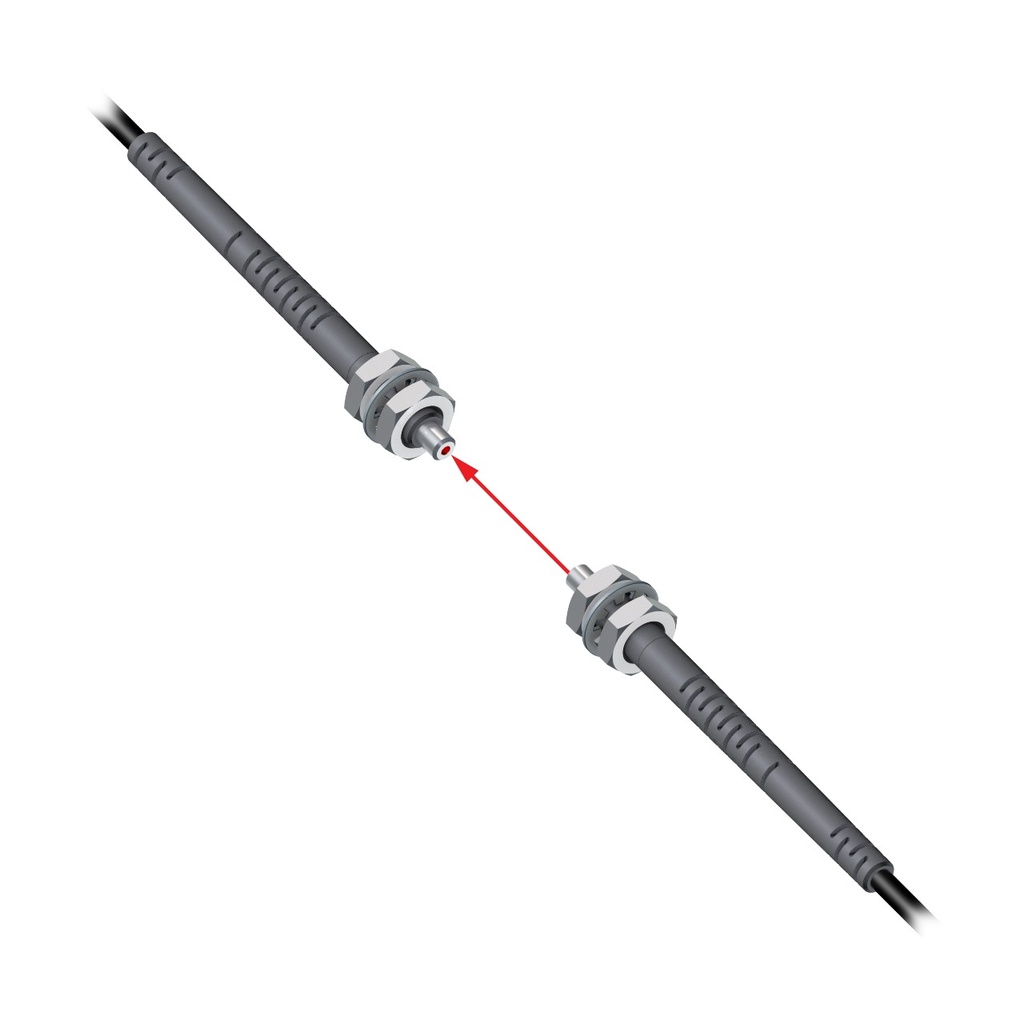

Plastic Fiber, Opposed Mode (PIT46U-VL)

https://www.branom.com/web/image/product.template/60702/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber, Opposed Mode
  • Core Dia.: 1 mm
  • Fiber Length 2 m
  • Thread M4
  • Flex Relief
  • Free cut
  • Vantage Line
  • Max Operating Temperature: 70 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Thread
  • Tariff Fiber Meters: 4 fbm
  • Measured Max Distance: 558 mm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: M2.6
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Thread
  • Termination: Free Cut
  • Sensing End Material (Specific): Nickel-Plated Brass
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: No
  • Feature: Flex Relief: Yes
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: M4
  • Fiber Length: 2 m
  • Fiber Optic Type: Plastic
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Max Range: DF-G3: > 3m to <= 5m
  • Min Hinged Door Size: 25 mm
  • Min Repeat Bending Endurance: 1000
  • Max Distance: DF-G1: 558 mm
  • Max Distance: DF-G3: 4335 mm
  • Max Distance: DF-G2: 904 mm
  • Minimum Bend Radius: 25 mm

$ 45.00 45.0 USD $ 45.00

$ 45.00

Not Available For Sale

    This combination does not exist.

    Contact Us
