Plastic Fiber, Opposed Mode (PIR1X323T-VL)
Representative photo. Please check item description for details.

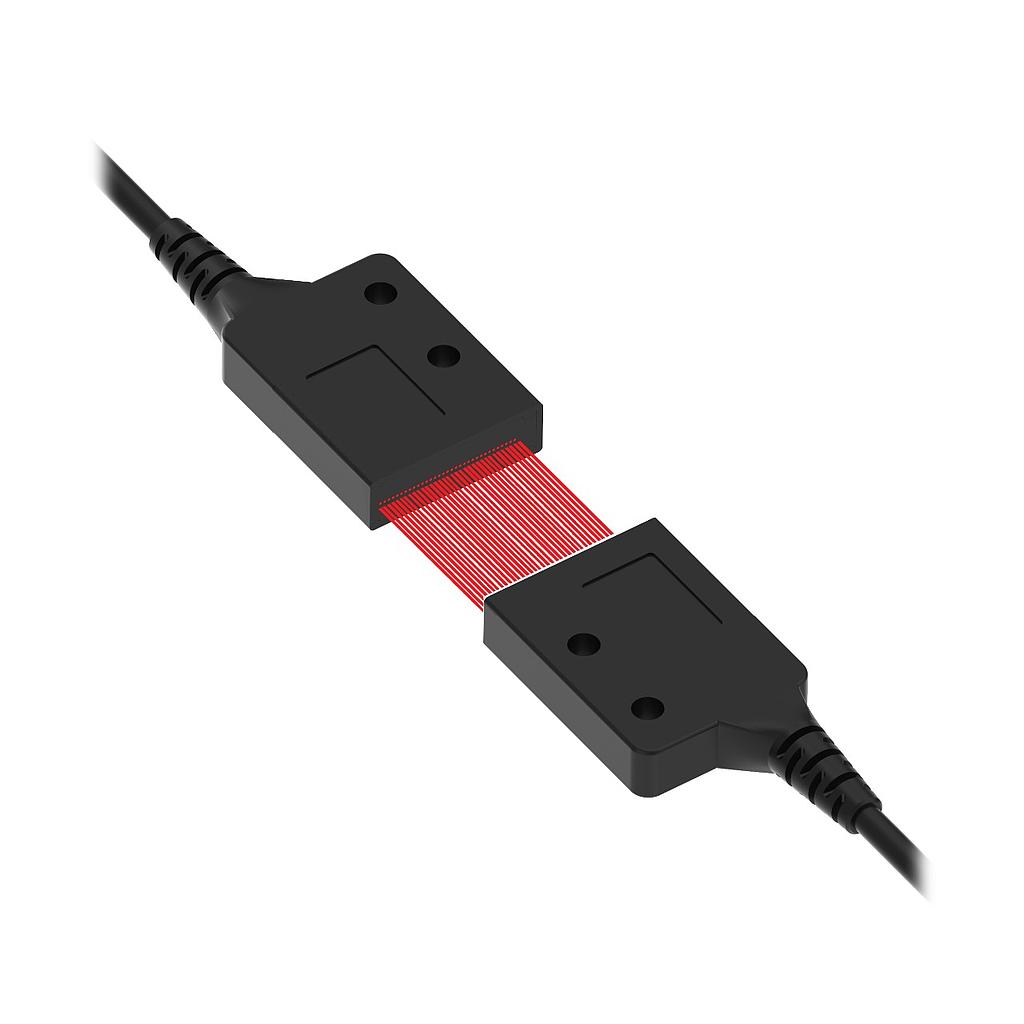

Plastic Fiber, Opposed Mode (PIR1X323T-VL)

https://www.branom.com/web/image/product.template/60190/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber, Opposed Mode
  • Core Dia.: 32 x 0.25 mm
  • Fiber Length 1 m
  • Rectangle W/Flex Relief
  • Vantage Line Terminated for use in Plastic Fiber Sensors
  • Max Operating Temperature: 70 °C
  • Housing Style: Rectangular
  • Sensing Mode (Detailed): Array
  • Sensing Mode (General): Opposed
  • Array Length: 14.5 mm
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Rectangle
  • Tariff Fiber Meters: 64 fbm
  • Measured Max Distance: 664 mm
  • Min Bend Radius: 60 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 19.0 x 25.0 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Array
  • Termination: Terminated
  • Sensing End Material (Specific): Polyethylene
  • Feature: Integrated Lens: Yes
  • Core Diameter: 32 x 0.3 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: No
  • Feature: Flex Relief: Yes
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 19.0 x 25.0 mm
  • Fiber Length: 1 m
  • Fiber Optic Type: Plastic
  • Sensing End Segment 2: Array
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Max Range: DF-G3: > 5m
  • Min Hinged Door Size: 60 mm
  • Min Repeat Bending Endurance: 1000
  • Max Distance: DF-G1: 664 mm
  • Max Distance: DF-G3: 5161 mm
  • Max Distance: DF-G2: 1076 mm
  • Minimum Bend Radius: 60 mm

$ 171.00 171.0 USD $ 171.00

$ 171.00

Not Available For Sale

    This combination does not exist.
