Description
Features:

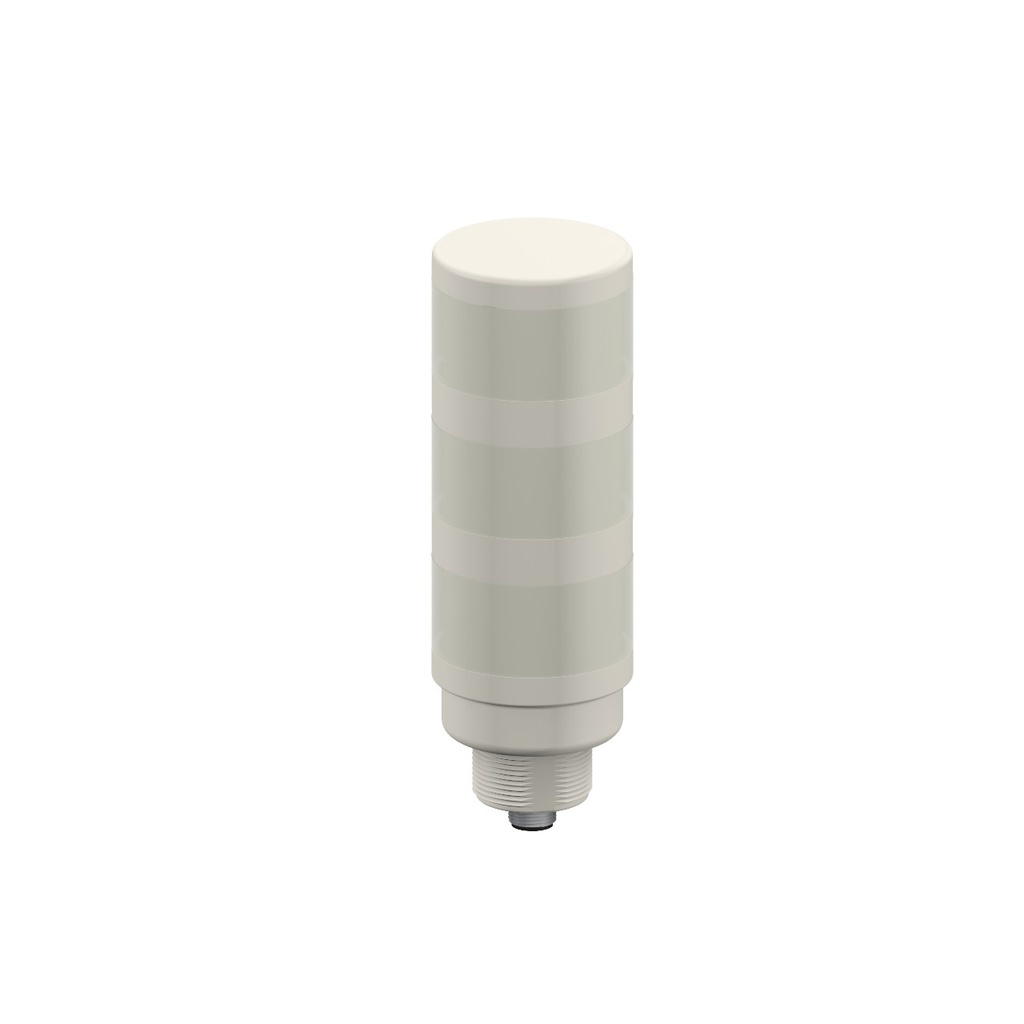

- Tower Light
- Gray Housing: 3-Color Tower Light
- Gray Housing
- Voltage: 18-30 V dc
- Housing: Polycarbonate
- Input: PNP
- Colors: Blue Orange Violet
- Euro 4-pin Quick-Disconnect
- Power: AC or DC
- Feature: Display: No
- Max Current Color: 45 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Ingress Protection: IP67
- Housing Style: Base Mount - Tower
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: ABS
- Feature: Indication: Yes
- Color Option 3: Violet
- Supply Voltage: 18-30 VDC/24 VAC
- Color Option 2: Orange
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 4.5
- Animation Option 3: Solid On
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Blue
- Animation Option 2: Solid On
- Color 1 - Wavelength/Color Temp/Coordinates: 470 nm
- Housing Color: Gray
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Number of Colors / Segments: 3
- Color 3 - Wavelength/Color Temp/Coordinates: 0.20; 0.08
- Lumens Color 2: 15.5
- Lumens Color 3: 2.5
- Color 2 - Wavelength/Color Temp/Coordinates: 608 nm
- Number of Input Pins/Conductors: 4
- Input Type: Bimodal (PNP/NPN)
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 10 ms
- Storage Temp: -40 to 70 °C
- Number of Tower Light Segments: 3
- Connection Type: Integral QD
- NEMA / UL: NEMA/UL 13
