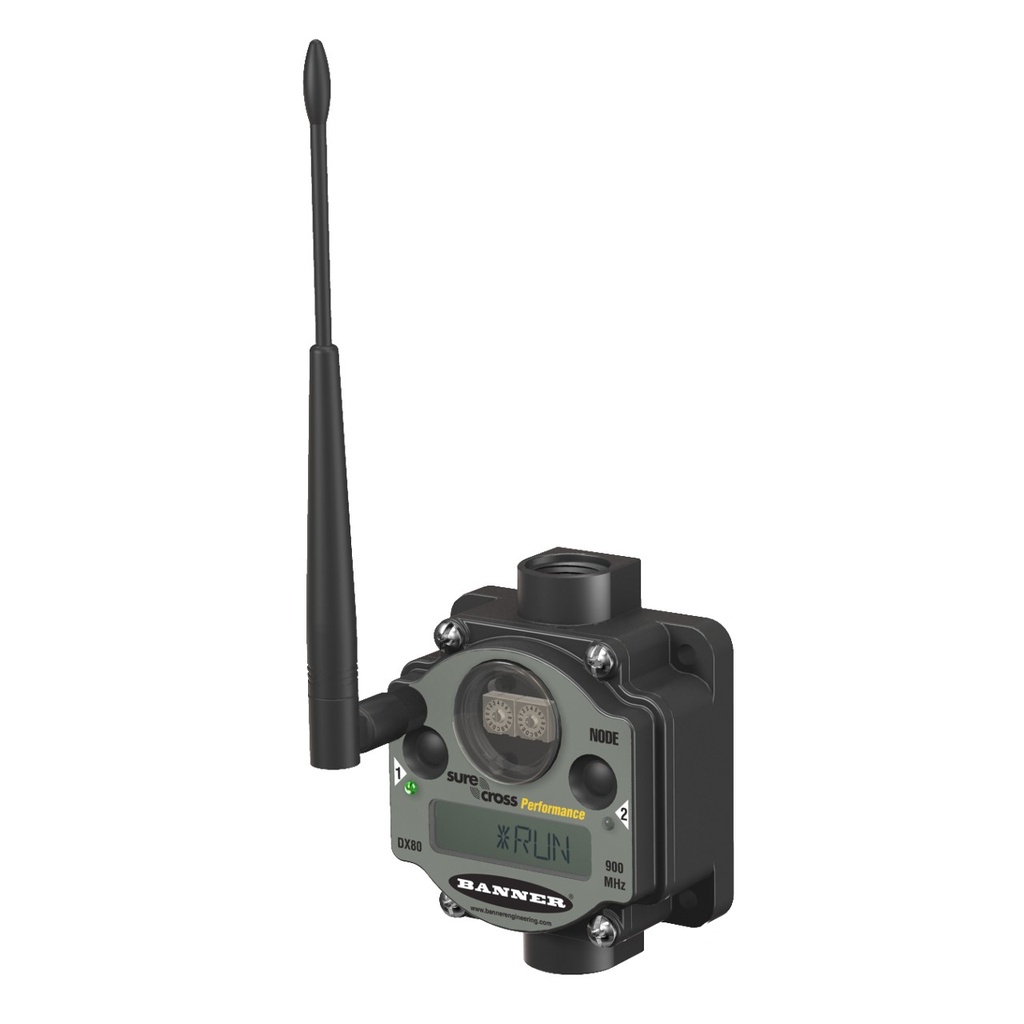

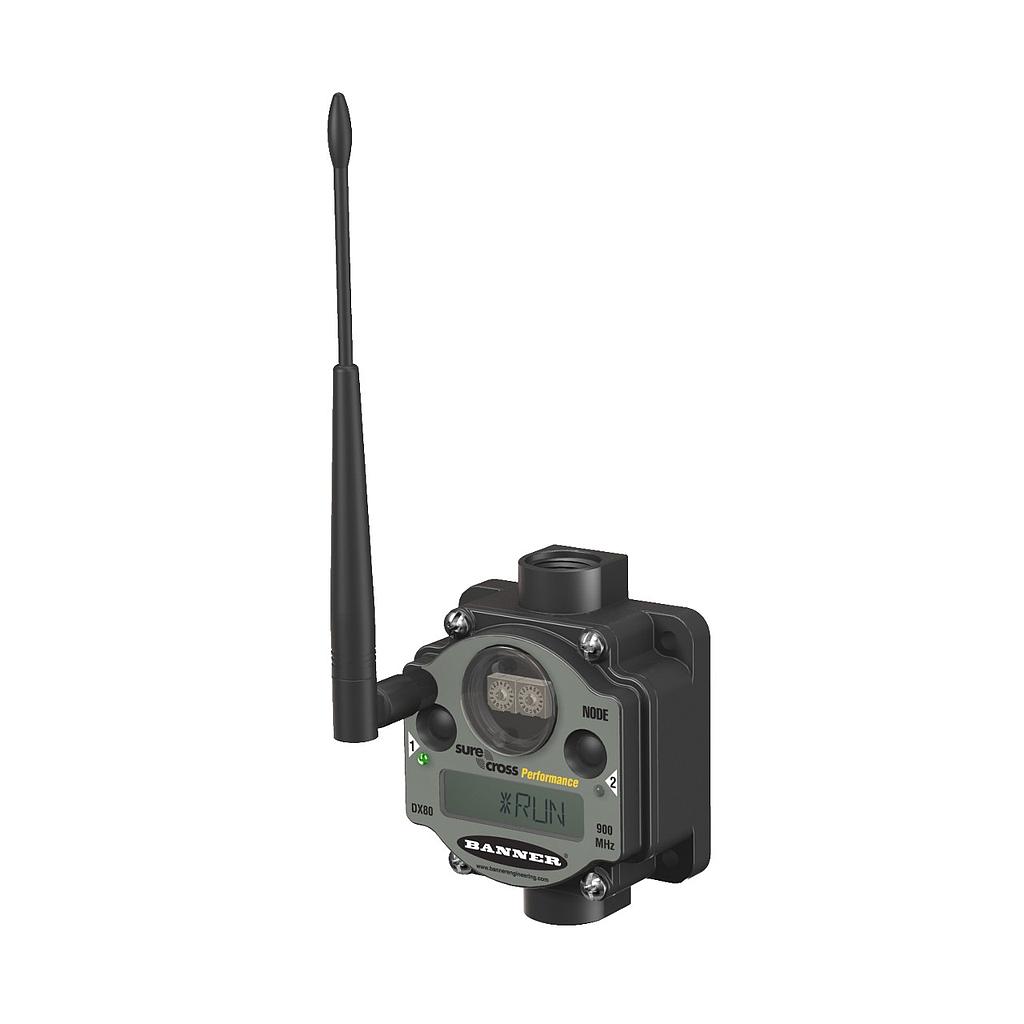

PM Series Node - LCD for Diagnostics (DX80N9X6S-PM8)

https://www.branom.com/web/image/product.template/59905/image_1920?unique=c26756c
(0 review)

Features:

  • PM Series Node
  • LCD for Diagnostics
  • 900 MHz IP67, NEMA 6
  • Inputs: Six Sourcing/PNP discrete
  • Outputs: Six Sourcing/PNP discrete
    • Power: DC
  • Feature: Discrete Outputs: Yes
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 85 °C
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP20
  • Housing Style: Enclosed Terminals
  • Device Type: Node
  • Feature: RS-232: No
  • Feature: RS-485: No
  • Feature: Has EtherNet/IP: No
  • Feature: Modbus/TCP: No
  • Feature: Hazardous Area: No
  • Feature: Modbus RTU: No
  • Feature: Wireless: Yes
  • Input/Output: Discrete
  • Relative Humidity: 95%
  • Feature: LCD Display: Yes
  • Output Details: 6 PNP Discrete
  • Feature: Point-to-Point Topology: Yes
  • Feature: Point-to-Multipoint Topology: Yes
  • Input Details: (6) PNP Discrete
  • Feature: Discrete Inputs: Yes
  • Wireless Radio Frequency: 900 MHz
  • Feature: Tree Topology: No
  • Feature: Star Topology: Yes
  • NEMA / UL: NEMA 1

$ 641.00 641.0 USD $ 641.00

$ 641.00

Not Available For Sale

    This combination does not exist.
