DX80G9M6S-PM2C;PM Series Gateway

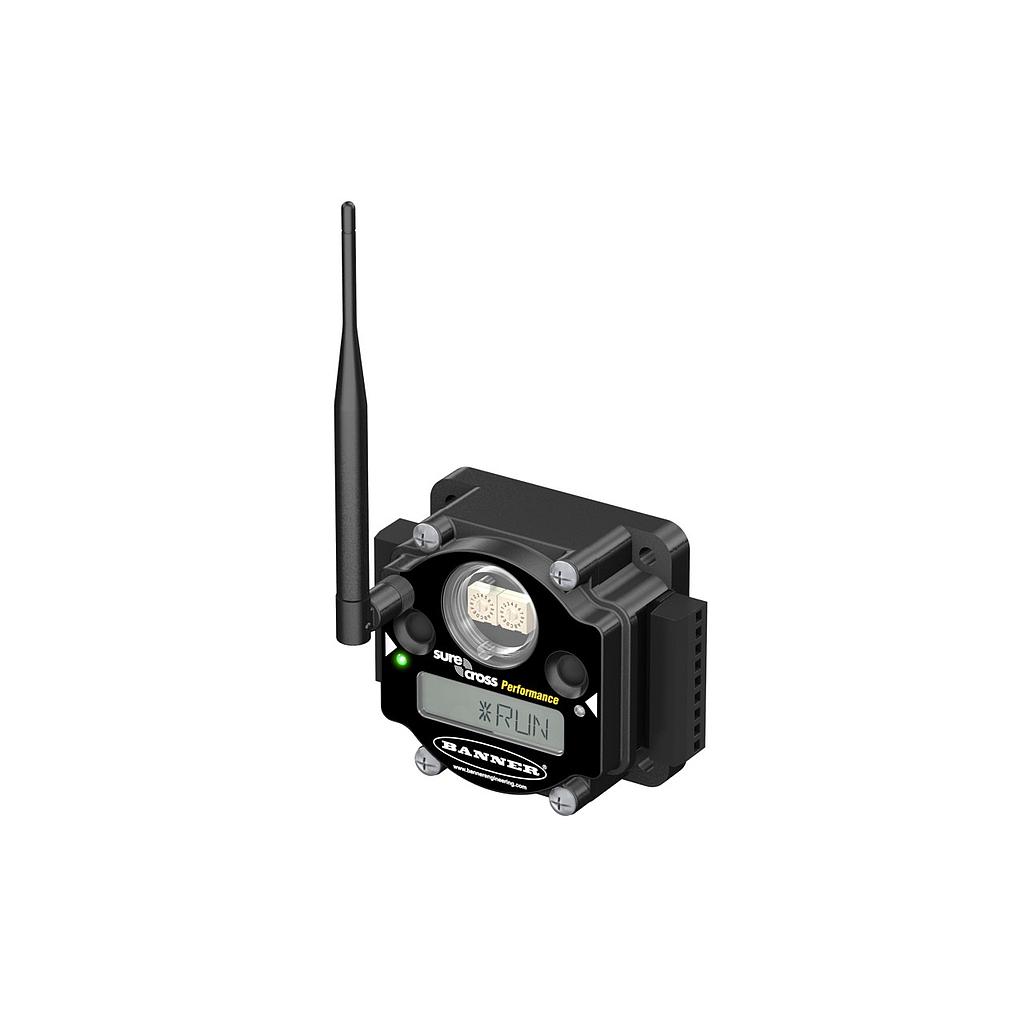

Representative photo. Please check item description for details.

DX80G9M6S-PM2C;PM Series Gateway

https://www.branom.com/web/image/product.template/59899/image_1920?unique=c26756c
(0 review)

Features:

    PM Series Gateway -LCD Selectable I/O Mapping; 900 MHz, IP20 /NEMA 1; Inputs:Four selectable NPN/PNP discrete, two 0-20mA; Outputs: Four PNP discrete, two 0-20mA; External Terminals
    • Power: DC
  • Feature: Discrete Outputs: Yes
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 85 °C
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP20
  • Housing Style: External Terminals
  • Device Type: Gateway
  • Feature: RS-232: No
  • Feature: RS-485: Yes
  • Feature: Has EtherNet/IP: No
  • Feature: Modbus/TCP: No
  • Feature: Hazardous Area: Yes
  • Feature: Modbus RTU: Yes
  • Feature: Wireless: Yes
  • Input/Output: Analog & Discrete
  • Relative Humidity: 95%
  • Feature: LCD Display: Yes
  • Output Details: 4 Sourcing Discrete, 2 0-20 mA Analog
  • Feature: Point-to-Point Topology: Yes
  • Feature: Point-to-Multipoint Topology: Yes
  • Input Details: (4) Selectable Discrete; (2) 0-20 mA Analog
  • Feature: Discrete Inputs: Yes
  • Wireless Radio Frequency: 900 MHz
  • Feature: Tree Topology: No
  • Feature: Star Topology: Yes
  • Feature: Analog Input(s): Yes
  • Hazardous/Intrinsically Safe Classification: Class I, Division 2/Zone 2; ATEX Zone 2
  • Feature: Analog Output(s): Yes
  • NEMA / UL: NEMA 1

$ 641.00 641.0 USD $ 641.00

$ 641.00

Not Available For Sale

    This combination does not exist.
