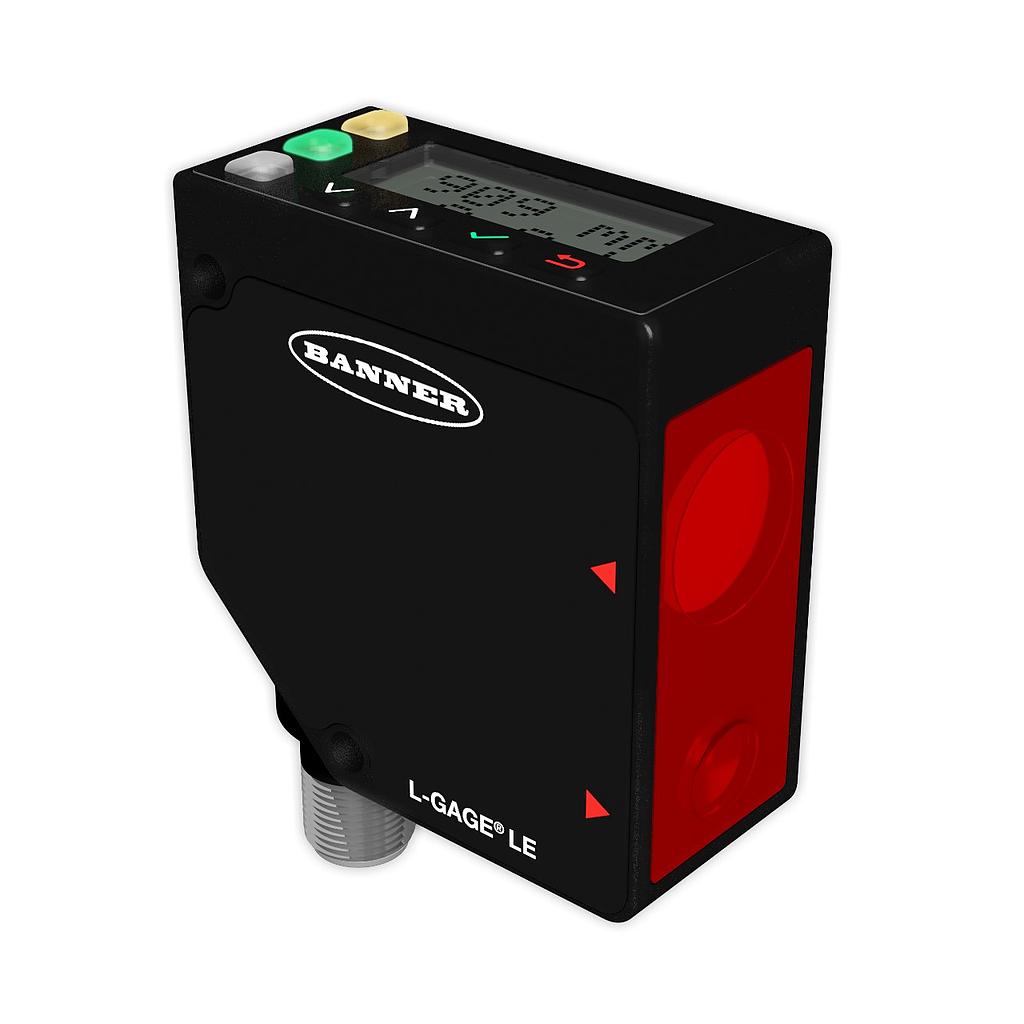

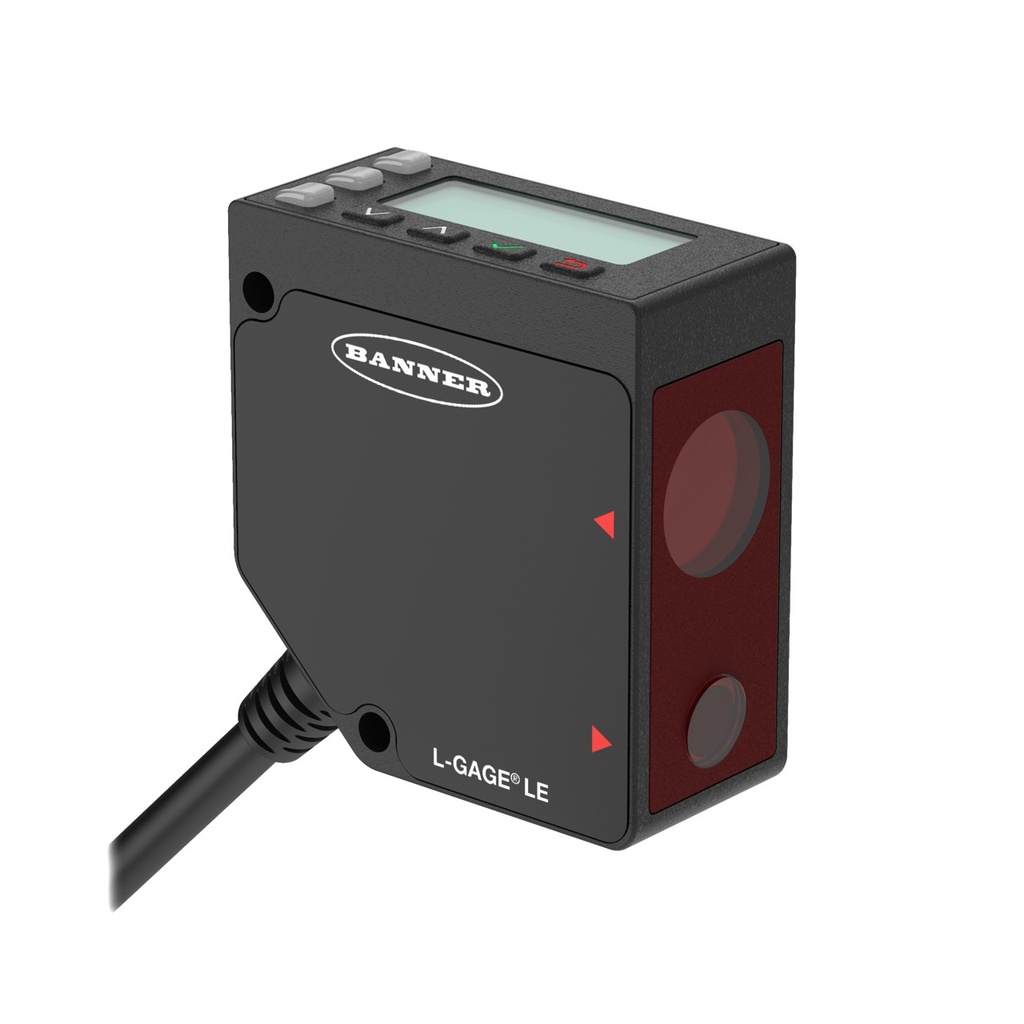

Laser Displacement Sensor (LE550UQP)

(0 review)

Features:

Laser Displacement Sensor
Range: 100-1000 mm
Input:12-30 V dc
Output: Analog: 0-10 V
Discrete: NPN/PNP configurable
Pigtail Quick-Disconnect
Max Off-State Leakage Current (µA): <200 µA @ 30 VDC (NPN) / <10 µA @ 30 VDC (PNP)
Min Operating Temperature: -20 °C
Max Operating Temperature: 55 °C
Power/Current Consumption (exclusive of load): 70 mA @ 24 V dc
Power Supply: 12-30 VDC
Temperature Effect (mm/°C): #ERROR
Delay at Power-Up: 2000 ms
Ingress Protection: IP67
Sensing Beam: Visible Red Laser
Sensing Beam Wavelength: 650
Housing Style: Rectangular
Max Sensing Distance: 1000 mm
Sensing Mode (Detailed): Triangulation
Sensing Mode (General): Proximity
Device Type: Sensor
Housing Material_: Zinc Alloy Die-Cast
Feature: RS-232: No
Feature: RS-485: No
RS-422: No
Laser Classification: Class 2
Analog Output: 0 to 10 VDC
Feature: IO Link: No
Feature: Wireless: No
Feature: Quick Disconnect: Yes
Quick Disconnect Type: M12
Max Op. Relative NC Humidity: 90% @ 55 °C
Feature: Chemical Resistant: No
Storage Temp: -30 to 65 °C
Number of Pins: 5
Adjustments: Push Button; Remote Teach
Feature: Timing (Hold/Delay): Yes
Input/Output: Analog & Discrete
Min Response Time: 2 ms
Vibration: MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock: IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Output Saturation Voltage PNP Outputs: < 3 V @ 100 mA
Analog Resolution/Discrete Repeatability: 100 mm to 600 mm: < 0.5; 600 mm to 1000 mm: < 1
Max Discrete (Switched) Output (mA): 100
Min Sensing Distance: 100 mm
Min Window Size: 10 mm
Remote Teach and Laser Control Input Impedence: 18 kΩ min. (65 kΩ min at 5 V dc)
Discrete (Switched) Outputs: 1 NPN/PNP Configurable
Max Measurement Range: 500-1000 mm
Output Protection: Protected against continuous overload and short circuit
Profibus: No
Feature: Remote Teach: Yes
Output Saturation Voltage NPN Outputs: <1.6 V @ 100 mA
Analog Voltage Output Rating: 2.5 kΩ min. load impedance
Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
Spot Size (@ Reference Distance): 4.9 mm x 12.1 mm @ 1 m
Connection Type: Pigtail QD
NEMA / UL: NEMA 6
Cord/Cable Length: 0.15 m
Feature: Common Ethernet Protocol: No
Feature: Health/Marginal Signal Output: Yes
Feature: Laser Control: Yes
Feature: PC Configurable: No
Indicator Type: LCD/LED
Max Ambient Light: 10000 lux
Warm-Up Time: 10 min
Discrete Output Hysteresis: Auto Adjust
Alarm Output (mA): 100
Analog Linearity: Lesser of Accuracy or 0.5% FS (±4.5 mm)

$ 894.00 894.0 USD $ 894.00

$ 894.00

This combination does not exist.

Add to cart Buy now

Features:

Laser Displacement Sensor
Range: 100-1000 mm
Input:12-30 V dc
Output: Analog: 0-10 V
Discrete: NPN/PNP configurable
Pigtail Quick-Disconnect
Max Off-State Leakage Current (µA): <200 µA @ 30 VDC (NPN) / <10 µA @ 30 VDC (PNP)
Min Operating Temperature: -20 °C
Max Operating Temperature: 55 °C
Power/Current Consumption (exclusive of load): 70 mA @ 24 V dc
Power Supply: 12-30 VDC
Temperature Effect (mm/°C): #ERROR
Delay at Power-Up: 2000 ms
Ingress Protection: IP67
Sensing Beam: Visible Red Laser
Sensing Beam Wavelength: 650
Housing Style: Rectangular
Max Sensing Distance: 1000 mm
Sensing Mode (Detailed): Triangulation
Sensing Mode (General): Proximity
Device Type: Sensor
Housing Material_: Zinc Alloy Die-Cast
Feature: RS-232: No
Feature: RS-485: No
RS-422: No
Laser Classification: Class 2
Analog Output: 0 to 10 VDC
Feature: IO Link: No
Feature: Wireless: No
Feature: Quick Disconnect: Yes
Quick Disconnect Type: M12
Max Op. Relative NC Humidity: 90% @ 55 °C
Feature: Chemical Resistant: No
Storage Temp: -30 to 65 °C
Number of Pins: 5
Adjustments: Push Button; Remote Teach
Feature: Timing (Hold/Delay): Yes
Input/Output: Analog & Discrete
Min Response Time: 2 ms
Vibration: MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock: IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Output Saturation Voltage PNP Outputs: < 3 V @ 100 mA
Analog Resolution/Discrete Repeatability: 100 mm to 600 mm: < 0.5; 600 mm to 1000 mm: < 1
Max Discrete (Switched) Output (mA): 100
Min Sensing Distance: 100 mm
Min Window Size: 10 mm
Remote Teach and Laser Control Input Impedence: 18 kΩ min. (65 kΩ min at 5 V dc)
Discrete (Switched) Outputs: 1 NPN/PNP Configurable
Max Measurement Range: 500-1000 mm
Output Protection: Protected against continuous overload and short circuit
Profibus: No
Feature: Remote Teach: Yes
Output Saturation Voltage NPN Outputs: <1.6 V @ 100 mA
Analog Voltage Output Rating: 2.5 kΩ min. load impedance
Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
Spot Size (@ Reference Distance): 4.9 mm x 12.1 mm @ 1 m
Connection Type: Pigtail QD
NEMA / UL: NEMA 6
Cord/Cable Length: 0.15 m
Feature: Common Ethernet Protocol: No
Feature: Health/Marginal Signal Output: Yes
Feature: Laser Control: Yes
Feature: PC Configurable: No
Indicator Type: LCD/LED
Max Ambient Light: 10000 lux
Warm-Up Time: 10 min
Discrete Output Hysteresis: Auto Adjust
Alarm Output (mA): 100
Analog Linearity: Lesser of Accuracy or 0.5% FS (±4.5 mm)
