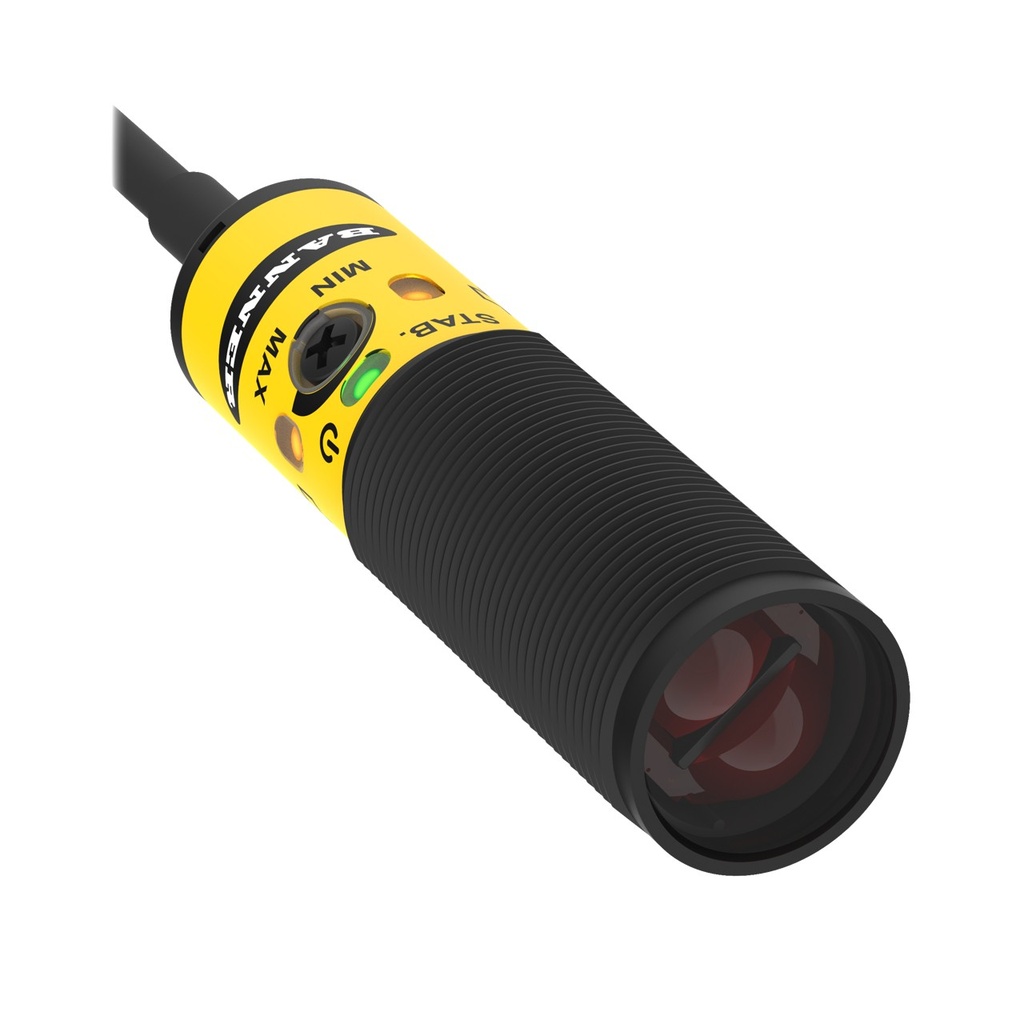

Representative photo. Please check item description for details.

S18-2 Series: Receiver with pot (S18-2VPRS-Q5)

https://www.branom.com/web/image/product.template/57085/image_1920?unique=c26756c
(0 review)

Features:

  • S18-2 Series: Receiver with pot
  • Range: variable to 25 m
  • Input: 10-30 V dc
  • Outputs: complementary PNP
  • Connection: Euro M12 4-pin 150 mm PVC Pigtail
  • Lens Material: Acrylic
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 170
  • Sensing Beam: Visible Red LED
  • Housing Style: Barrel
  • Max Sensing Distance: 25000 mm
  • Sensing Mode (Detailed): Receiver
  • Max Relative Humidity: 95% @ 50 °C
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Feature: Intrinsically Safe: No
  • Indicator Type: LED
