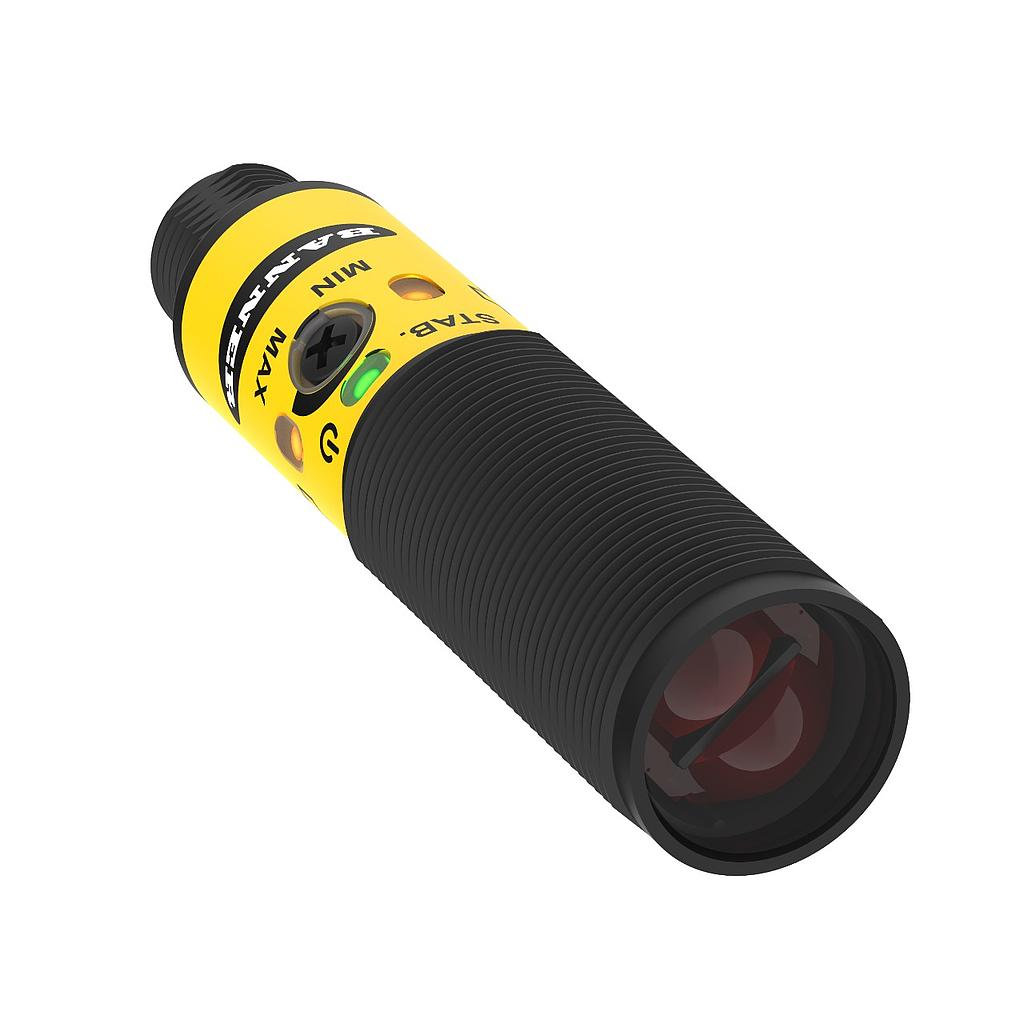

S18-2 Series: Receiver with pot (S18-2VNRS-Q8)

https://www.branom.com/web/image/product.template/57079/image_1920?unique=c26756c
(0 review)

Features:

  • S18-2 Series: Receiver with pot
  • Range: variable to 25 m
  • Input: 10-30 V dc
  • Outputs: complementary NPN
  • Connection: Euro M12 4-pin Integral Connector
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 170
  • Sensing Beam: Visible Red LED
  • Housing Style: Barrel
  • Max Sensing Distance: 25000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 50 °C
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12 (Euro)
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 1.5 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Barrel Diameter: 18
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Integral QD
  • Indicator Type: LED

$ 56.00 56.0 USD $ 56.00

$ 56.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • S18-2 Series: Receiver with pot
    • Range: variable to 25 m
    • Input: 10-30 V dc
    • Outputs: complementary NPN
    • Connection: Euro M12 4-pin Integral Connector
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 170
    • Sensing Beam: Visible Red LED
    • Housing Style: Barrel
    • Max Sensing Distance: 25000 mm
    • Sensing Mode (Detailed): Receiver
    • Sensing Mode (General): Opposed
    • Max Relative Humidity: 95% @ 50 °C
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M12 (Euro)
    • Feature: Chemical Resistant: No
    • Opposed Mode Emitter/Receiver: Receiver
    • Feature: Water Detection: No
    • Number of Pins: 4
    • Output Response Time: 1.5 ms
    • Operation: Light/Dark Operate
    • Adjustments: Potentiometer
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: No
    • Barrel Diameter: 18
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection: Integral QD
    • Indicator Type: LED
