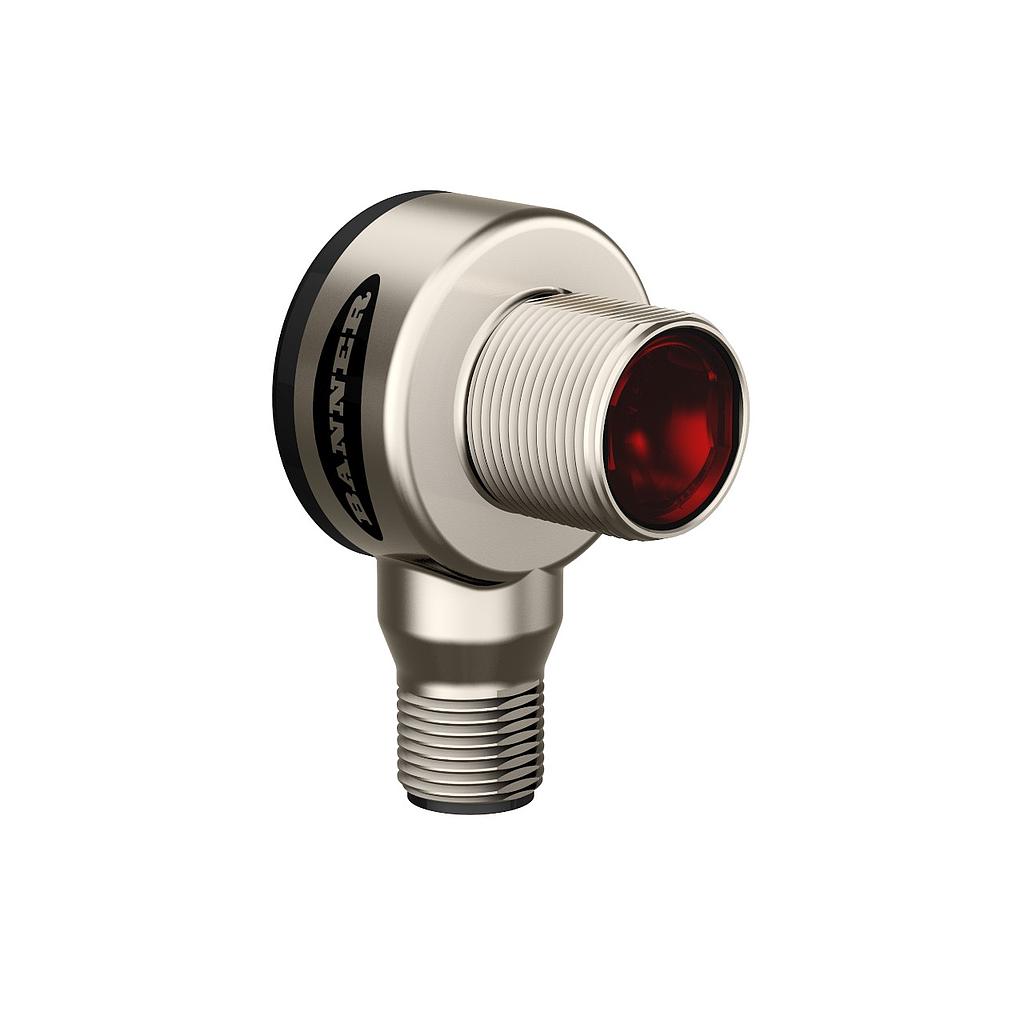

TM18: IR Fixed Field Background Suppression (TM18VP6FF100IRQ8)

https://www.branom.com/web/image/product.template/57005/image_1920?unique=c26756c
(0 review)

Features:

  • TM18: IR Fixed Field Background Suppression
  • Range: 100 mm
  • Input: 10-30 V dc
  • Outputs: PNP Complementary
  • Euro-Style Quick-Disconnect-
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67/69
  • Repeatability (µs): 185
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 870
  • Housing Style: Barrel
  • Max Sensing Distance: 100 mm
  • Sensing Mode (Detailed): Background Suppression (Fixed)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Zinc Die-Cast with Nickel-Plating
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 3 ms ON/1.5 ms OFF
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED
