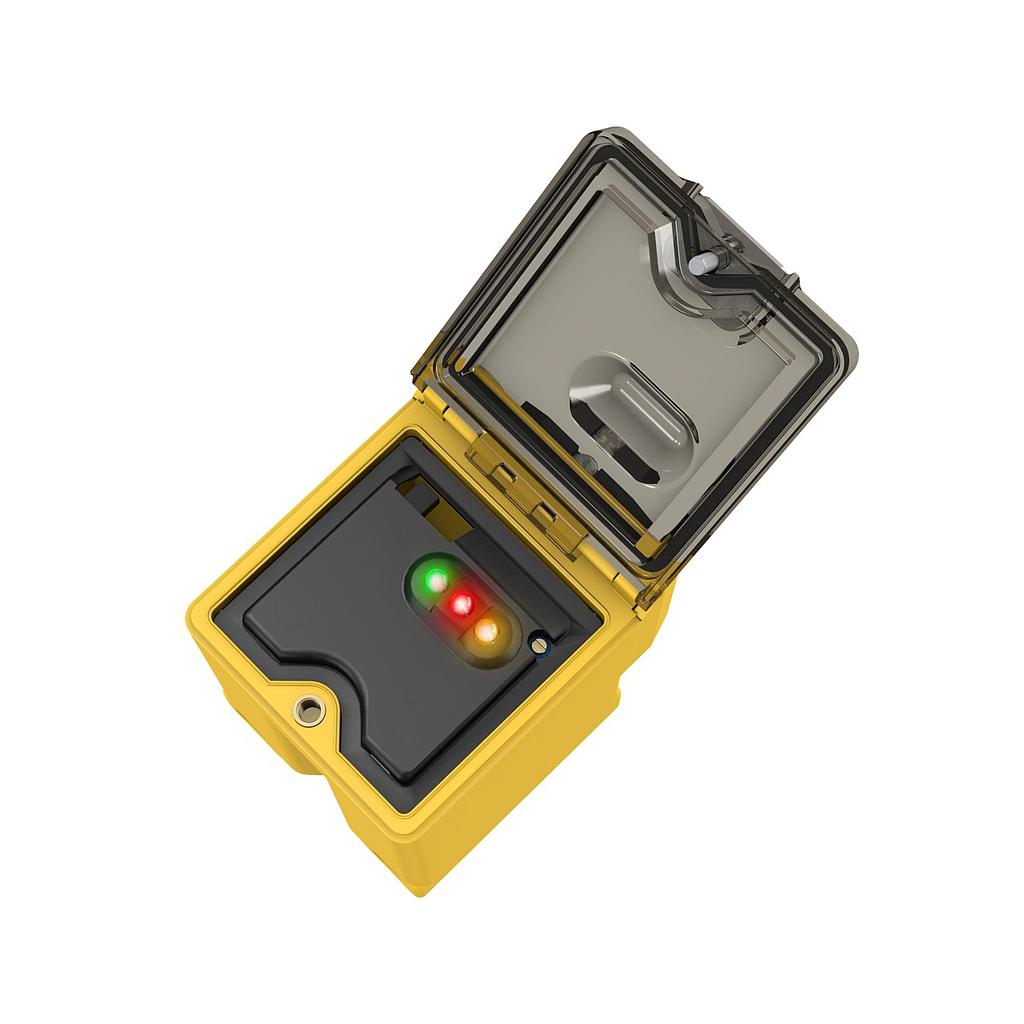

Representative photo. Please check item description for details.

Q45 Series: Polarized Retro (Q45VR3LPQ-86418)

https://www.branom.com/web/image/product.template/56961/image_1920?unique=c26756c
(0 review)

Features:

  • Q45 Series: Polarized Retro
  • Range: 0.15 to 6 m
  • Input: 12-250 V dc / 24-250 V ac
  • Output: SPDT Electromechanical Relay
  • Mini 5-pin Integral Connector: 45LM58 added, switches
  • OFF,OFF,OFF,ON,ON,OFF,OFF,OFF
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 12-250 VDC or 24-250 VAC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 500
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 680
  • Housing Style: Rectangular
  • Max Sensing Distance: 6000 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 7/8 in. (Mini)
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 15 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): Yes
  • Feature: Encapsulated: No
  • Input/Output: E/M Relay
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6P
  • Indicator Type: LED
