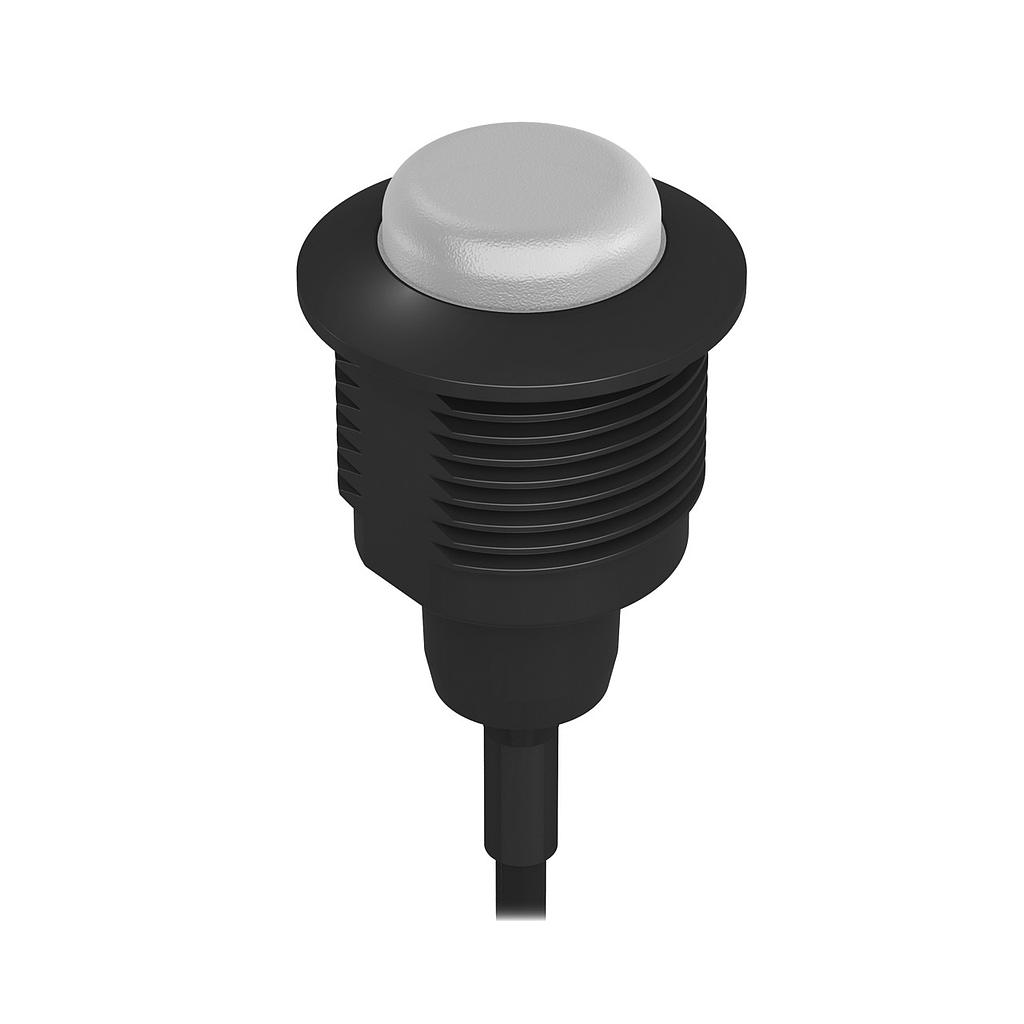

Representative photo. Please check item description for details.

S22 EZ Light - 22 mm - IP67 (S22LBXXP)

https://www.branom.com/web/image/product.template/56701/image_1920?unique=c26756c
(0 review)

Features:

  • S22 EZ Light
  • 22 mm
  • IP67
  • Single Color: Blue
  • 10-30 V dc PNP Input
  • 4-wire 2 m Cable
    • Power: DC
  • Feature: Display Lighting: No
  • Max Current Color: 25 mA
  • Power Source: VDC
  • Ingress Protection: IP67/69
  • Housing Style: Barrel Mount - Flat Window
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 26.0 x 35.3 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 10-30 VDC
  • Feature: Quick Disconnect: No
  • Lumens Color 1: 0.6
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Blue
  • Color 1 - Wavelength/Color Temp/Coordinates: 470 nm
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Single Color On
  • Animation Option 1: Solid On
  • Number of Colors / Segments: 1
  • Product Size (mm): 22 mm
  • Number of Input Pins/Conductors: 4
  • Input Type: PNP
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M22 x 1.5
  • Max Input Response Time (ms): 1 ms
  • Feature: Chemical Resistant: No
  • Connection: Cable
  • NEMA / UL: NEMA/UL 4X/13
  • Max Input Response Time: 1 ms

$ 42.00 42.0 USD $ 42.00

$ 42.00

Not Available For Sale
