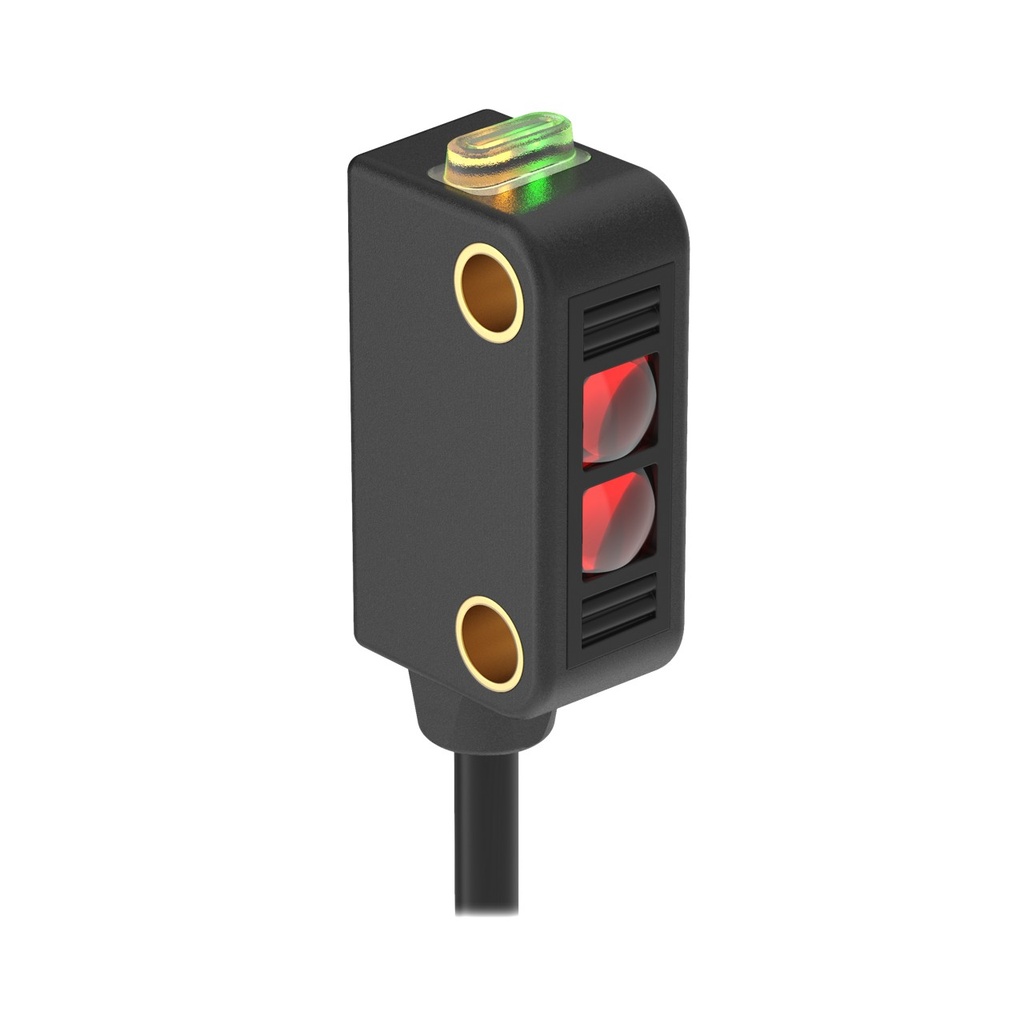

Representative photo. Please check item description for details.

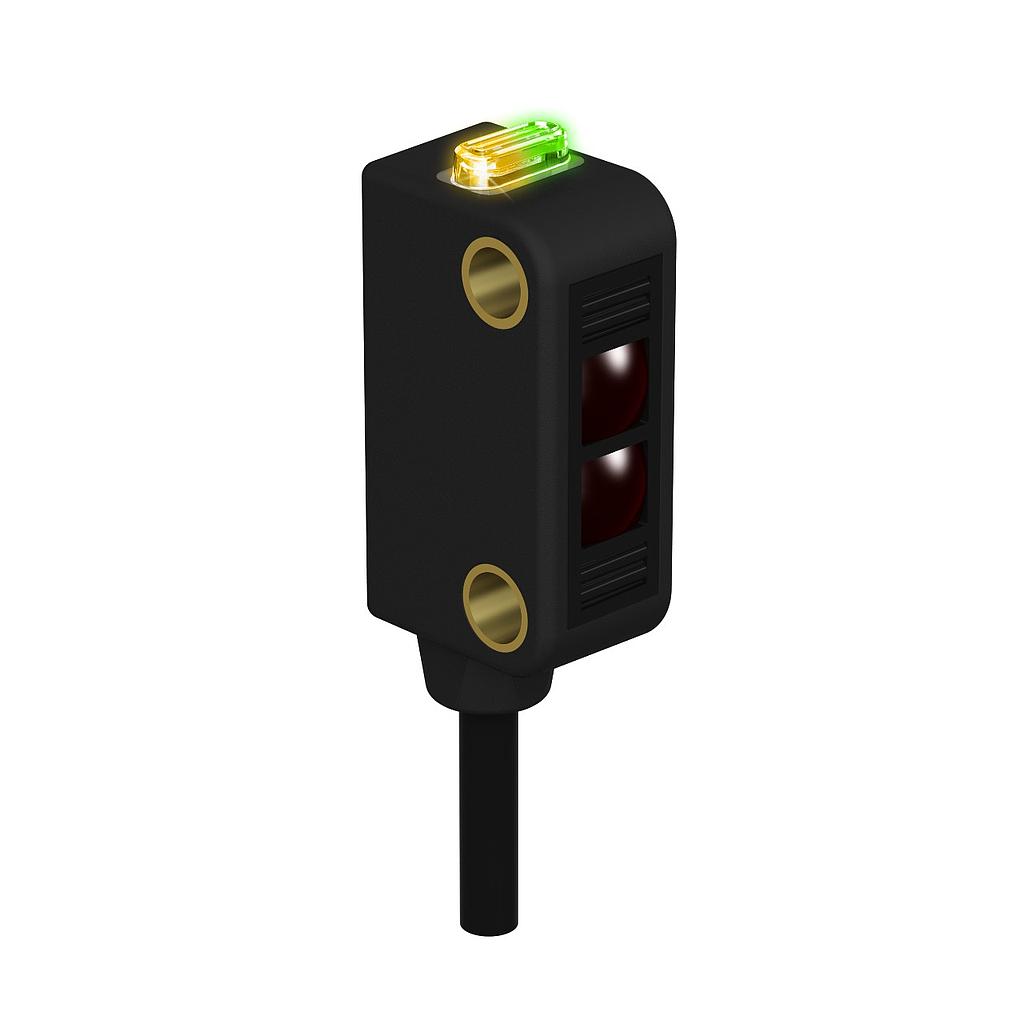

WORLD-BEAM DQ12 Series: Receiver (DQ12RB6R)

https://www.branom.com/web/image/product.template/56519/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM DQ12 Series: Receiver
  • Range: 3 m
  • Input: 10-30V dc
  • Output: DO (Dark Operate) Bipolar: 1 NPN
  • 1 PNP
  • 2 m (6.5 ft) Cable
  • Black Housing
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Polycarbonate
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 120 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 125
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 645
  • Housing Style: Rectangular
  • Max Sensing Distance: 3000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Polyamide
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 1.3 ms ON/0.7 ms OFF
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • Cord/Cable Length: 2 m
  • Indicator Type: LED
