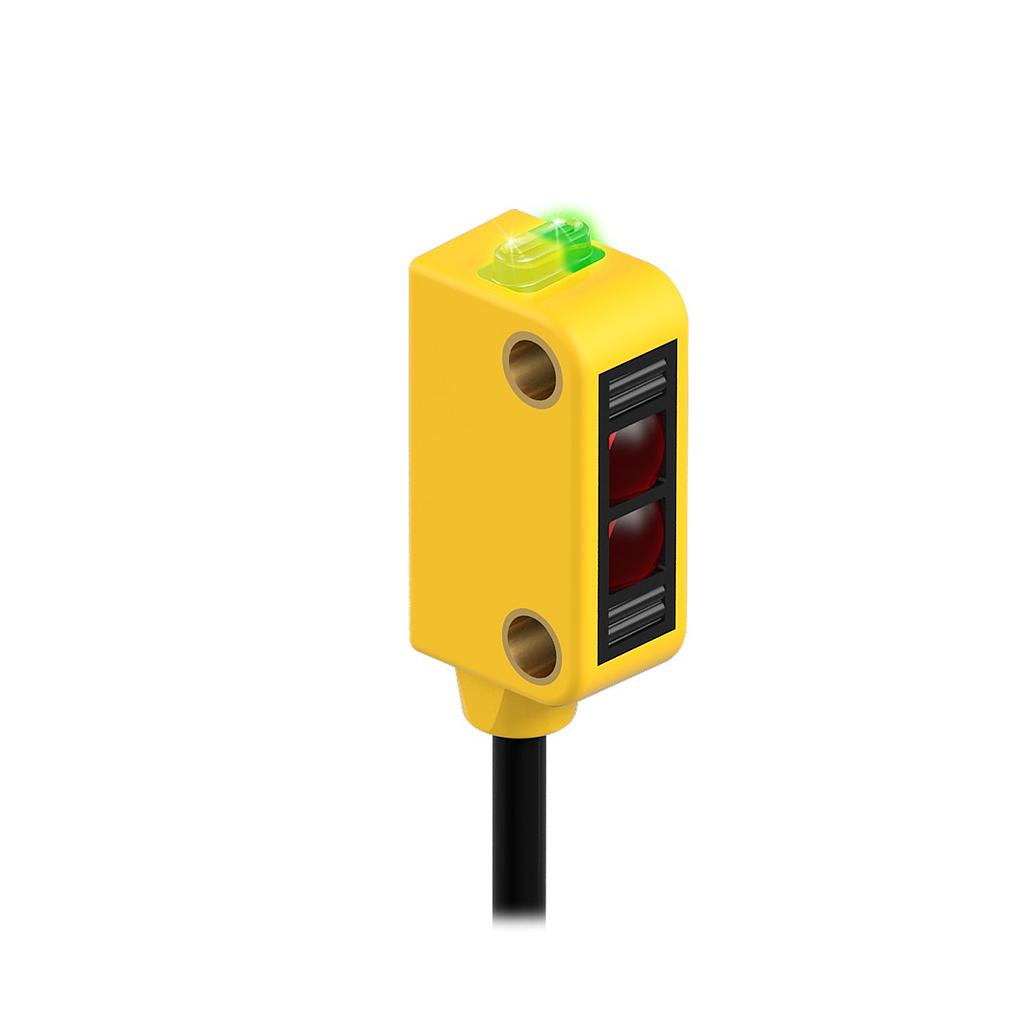

Representative photo. Please check item description for details.

WORLD-BEAM Q12 Series: Fixed-Field (Q12AB6FF15Q5-85763)

https://www.branom.com/web/image/product.template/56513/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM Q12 Series: Fixed-Field
  • Range: 15 mm
  • Input 10-30 V dc
  • Output: LO (Light Operate) Bipolar: 1 NPN
  • 1 PNP
  • Euro (M12) 4-pin 0.38 m (15 in) PVC Connector Pigtail
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Polycarbonate
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 120 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 175
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 640
  • Housing Style: Rectangular
  • Max Sensing Distance: 15 mm
  • Sensing Mode (Detailed): Background Suppression (Fixed)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.85 ms ON/OFF
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Small Visible Spot: LED
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • Indicator Type: LED

$ 142.00 142.0 USD $ 142.00

$ 142.00

Not Available For Sale

    This combination does not exist.
