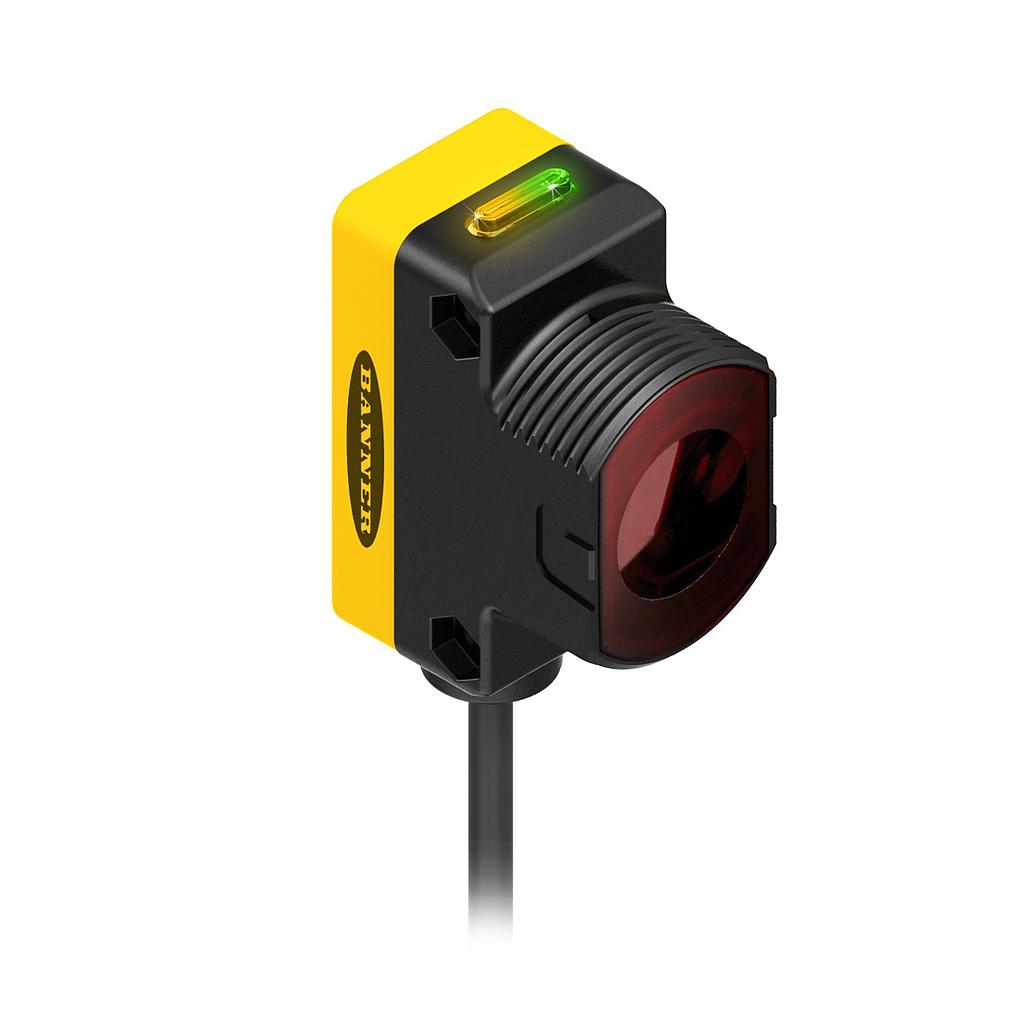

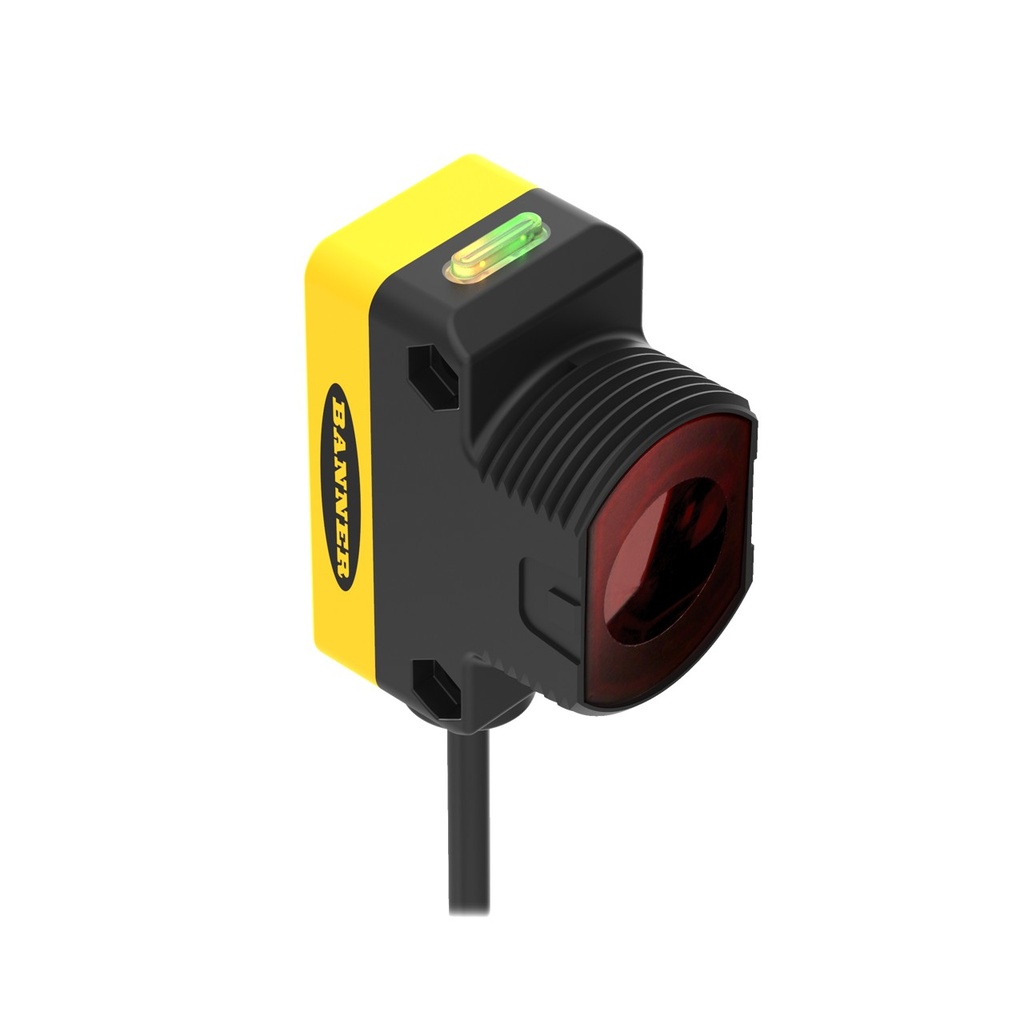

WORLD-BEAM QS30 Series: Receiver (QS30BR-85446)

https://www.branom.com/web/image/product.template/56325/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS30 Series: Receiver
  • Range: 60 m
  • Input: 10-30 V dc, B frequency, Output: Bipolar: 1 NPN
  • 1 PNP
  • 9 m (30 ft) Cable
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular w/M30 Mount
  • Max Sensing Distance: 60000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 5 ms
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 9 m
  • Indicator Type: LED

$ 177.00 177.0 USD $ 177.00

$ 177.00

Not Available For Sale
