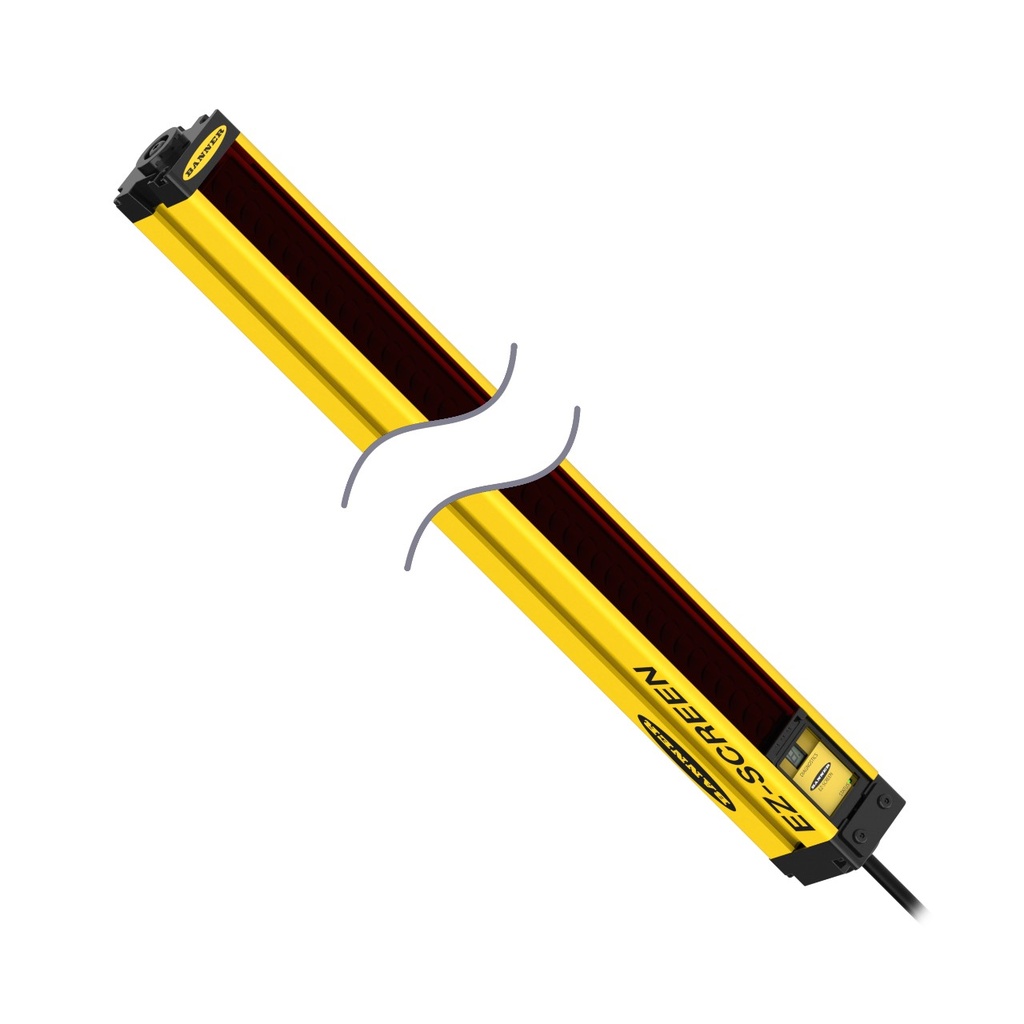

SLS Emitter (SLSE30-1200P4NT)

https://www.branom.com/web/image/product.template/56317/image_1920?unique=c26756c
(0 review)

Features:

  • SLS Emitter
  • 30 mm Resolution, Range: 0.1 to 18 m (4 in. to 60 ft)
  • Height: 1200 mm (47.2 in.) Response Time: (Tr) 23 ms
  • No TEST, No GND, M12 4-pin 300 mm Pigtail QD Connector
  • Supply Current: 100 mA max.
  • Min Operating Temperature: 0 °C
  • Max Operating Temperature: 55 °C
  • Ingress Protection: IP65
  • Housing Material_: Aluminum/Acrylic/Zinc
  • Operating Voltage: 24 VDC +/- 15%
  • Physical Dimensions: 36 x 45.2 mm
  • PL Rating: Ple
  • Vibration: 10-55 Hz at 0.35 mm
  • SIL Rating: SIL3; CL3
  • Recovery Time: 25-152 / 81-495
  • Feature: ESD Safe: No
  • Feature: Test Input: No
  • Overall Length: 1270 mm
  • System Type: Emitter
  • Operating Distance: 0.1 - 18 m
  • Response Time: 23
  • Effective Aperture Angle: Type 4
  • Feature: Reduced Resolution: No
  • Feature: Low-Profile: No
  • Feature: End-to-End Sensing: Yes
  • Number of Pins (Receiver/Emitter): 4
  • Defined Area Height: 1200 mm
  • Feature: Auxiliary Output: No
  • Electrical Safety Class: III
  • Shock: 10 g @ 16 ms
  • Feature: Short Protection: Yes
  • External Monitoring Device: None
  • Feature: Fixed Blanking: No
  • Safety Level: Type 4
  • Feature: Integral Muting: No
  • Scan Code: Selectable
  • Trip/Latch Output: N/A
  • Finish Material: Yellow Polyester
  • Short Protection: Yes
