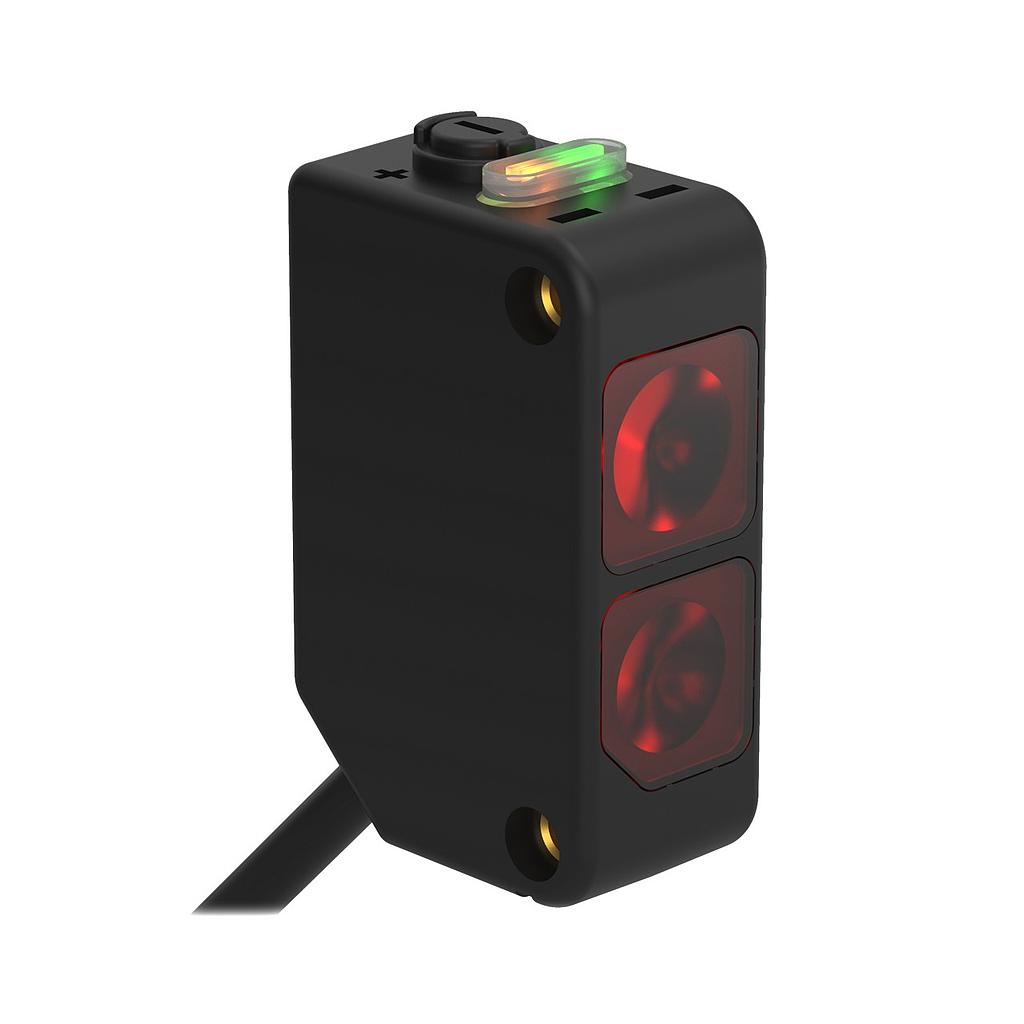

Representative photo. Please check item description for details.

WORLD-BEAM Q20 Series: Long Range Diffuse (Q20PDXLQ5-85213)

https://www.branom.com/web/image/product.template/55193/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM Q20 Series: Long Range Diffuse
  • Sunlight Enhanced (IR)
  • Range: 1500 mm
  • Input 10-30 V dc
  • Output: Complementary Solid State PNP
  • Euro 6 in Quick Disconnect Pigtail
  • Indicator Light Mounting Bracket
  • Bracket Mounting SMBQ20U
  • Right Angle
  • Fits 1/2 in NPSM pipe
  • Color: Gray
  • Assembled Kit
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: N/A
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 155
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular
  • Max Sensing Distance: 1500 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.8 ms
  • Operation: Light/Dark Operate
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 231.00 231.0 USD $ 231.00

$ 231.00

Not Available For Sale

    This combination does not exist.

    Contact Us
