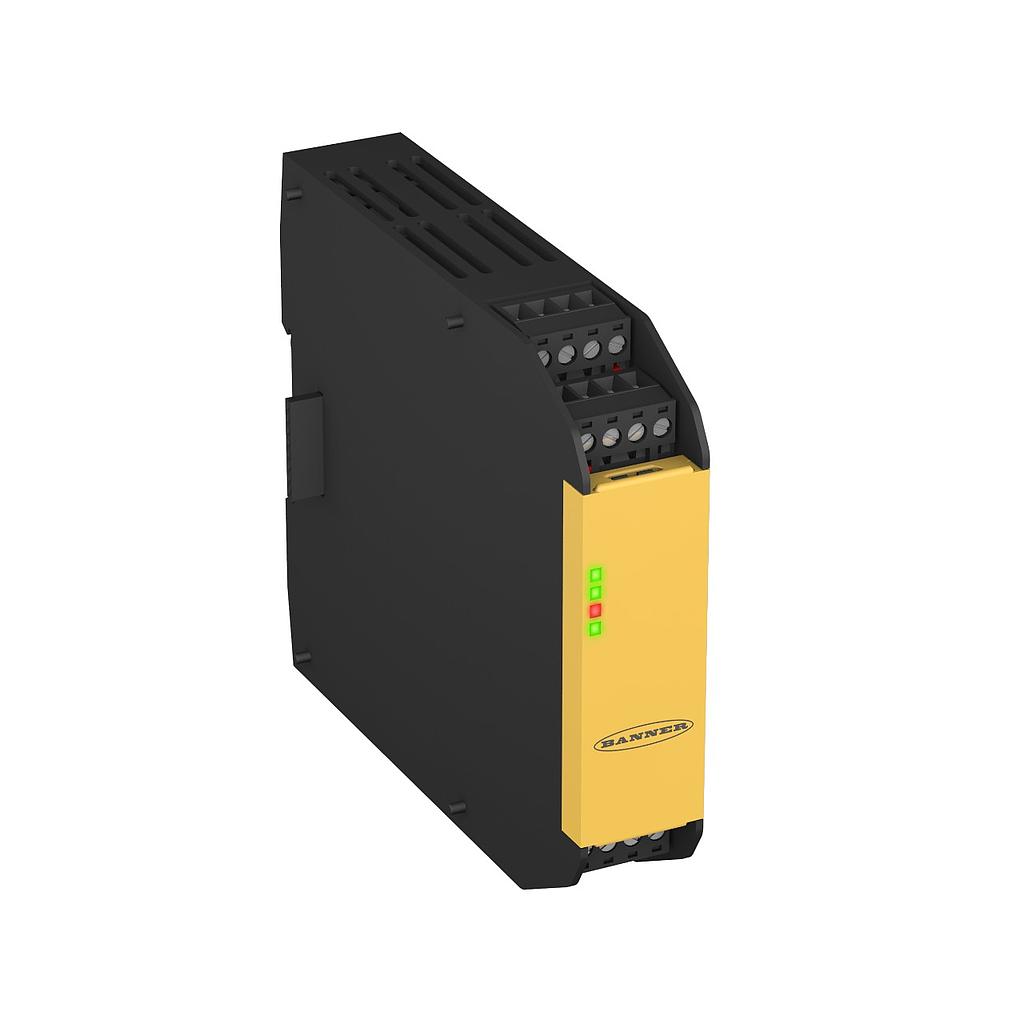

Safety Controller Expansion Module: Dual Relay Output Module (XS2RO)

https://www.branom.com/web/image/product.template/55078/image_1920?unique=c26756c
(0 review)

Features:

  • Safety Controller Expansion Module: Dual Relay Output Module
  • Safety Outputs: 4 NO, 6 Amps
  • Aux Outputs: 2 NC, 2.5 Amps
  • Used with XS26-2 Safety Controllers
  • Max Operating Temperature: 55 °C
  • Power Consumption: 0.15 A (outputs on)
  • Ingress Protection: IP20
  • Device Type: Safety Controller
  • Safe Output Rating: Relay - 4 NO: 6A; 2 NC: 2.5A
  • Safety Module Type: Output Module
  • Independently Controlled Safe Outputs: 2
  • PL Rating: e
  • SISTEMA: PFHd = 7.6 x 10-10
  • Relative Humidity: 90% @ 50 °C
  • Vibration: 9-150 Hz at 1g occasional/0.5g continuous
  • Feature: LCD Display: No
  • SIL Rating: 3
  • Safety Category Rating: 4
  • Terminal Type: Screw
  • Response Time: Other
  • Non Safe Output Configuration: 2 separate NC
  • Electrical Life: 50,000 @ full resistive load
  • Feature: Expandable: Yes
  • Feature: Gate Switch (NC/NC) Input: No
  • Feature: Gate Switch (NC/NO) Input: No
  • Feature: Gate Switch (OSSD) Input: No
  • Feature: Light Curtains/Scanner with EDM Input: No
  • Feature: Light Curtains/Scanner without EDM Input: No
  • Feature: In-Series Diagnostics: No
  • Mechanical Life: 40 mil

$ 559.00 559.0 USD $ 559.00

$ 559.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • Safety Controller Expansion Module: Dual Relay Output Module
    • Safety Outputs: 4 NO, 6 Amps
    • Aux Outputs: 2 NC, 2.5 Amps
    • Used with XS26-2 Safety Controllers
    • Max Operating Temperature: 55 °C
    • Power Consumption: 0.15 A (outputs on)
    • Ingress Protection: IP20
    • Device Type: Safety Controller
    • Safe Output Rating: Relay - 4 NO: 6A; 2 NC: 2.5A
    • Safety Module Type: Output Module
    • Independently Controlled Safe Outputs: 2
    • PL Rating: e
    • SISTEMA: PFHd = 7.6 x 10-10
    • Relative Humidity: 90% @ 50 °C
    • Vibration: 9-150 Hz at 1g occasional/0.5g continuous
    • Feature: LCD Display: No
    • SIL Rating: 3
    • Safety Category Rating: 4
    • Terminal Type: Screw
    • Response Time: Other
    • Non Safe Output Configuration: 2 separate NC
    • Electrical Life: 50,000 @ full resistive load
    • Feature: Expandable: Yes
    • Feature: Gate Switch (NC/NC) Input: No
    • Feature: Gate Switch (NC/NO) Input: No
    • Feature: Gate Switch (OSSD) Input: No
    • Feature: Light Curtains/Scanner with EDM Input: No
    • Feature: Light Curtains/Scanner without EDM Input: No
    • Feature: In-Series Diagnostics: No
    • Mechanical Life: 40 mil
