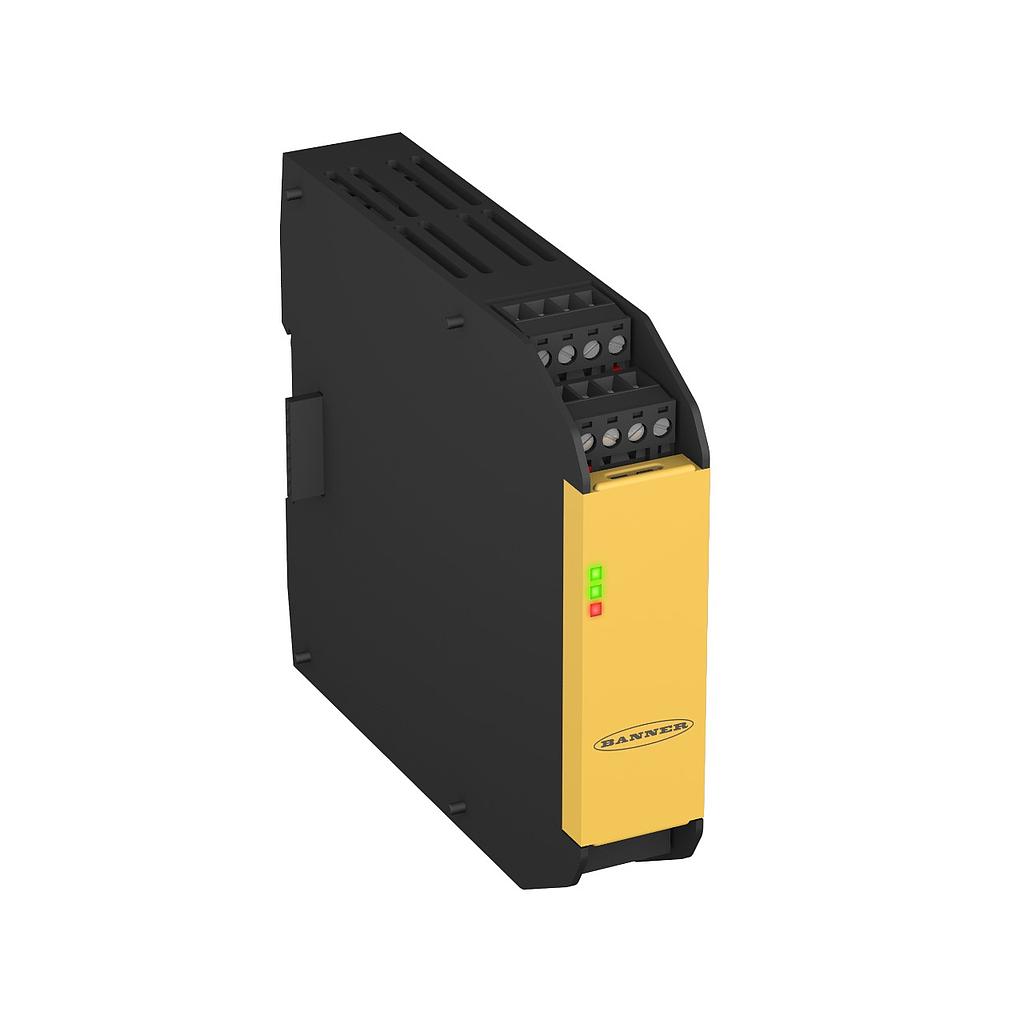

Safety Controller Expansion Module: Relay Output Module (XS1RO)

https://www.branom.com/web/image/product.template/55077/image_1920?unique=c26756c
(0 review)

Features:

  • Safety Controller Expansion Module: Relay Output Module
  • Safety Outputs: 2 NO, 6 Amps
  • Aux Outputs: 1 NC, 2.5 Amps
  • Used with XS26-2 Safety Controllers
  • Max Operating Temperature: 55 °C
  • Power Consumption: 0.125 A (outputs on)
  • Ingress Protection: IP20
  • Device Type: Safety Controller
  • Safe Output Rating: Relay - 2 NO: 6A; 1 NC: 2.5A
  • Safety Module Type: Output Module
  • Independently Controlled Safe Outputs: 1
  • PL Rating: e
  • SISTEMA: PFHd = 7.6 x 10-10
  • Relative Humidity: 90% @ 50 °C
  • Vibration: 9-150 Hz at 1g occasional/0.5g continuous
  • Feature: LCD Display: No
  • SIL Rating: 3
  • Safety Category Rating: 4
  • Terminal Type: Screw
  • Response Time: Other
  • Non Safe Output Configuration: 1 NC
  • Electrical Life: 50,000 @ full resistive load
  • Feature: Expandable: Yes
  • Feature: Gate Switch (NC/NC) Input: No
  • Feature: Gate Switch (NC/NO) Input: No
  • Feature: Gate Switch (OSSD) Input: No
  • Feature: Light Curtains/Scanner with EDM Input: No
  • Feature: Light Curtains/Scanner without EDM Input: No
  • Feature: In-Series Diagnostics: No
  • Mechanical Life: 40 mil
