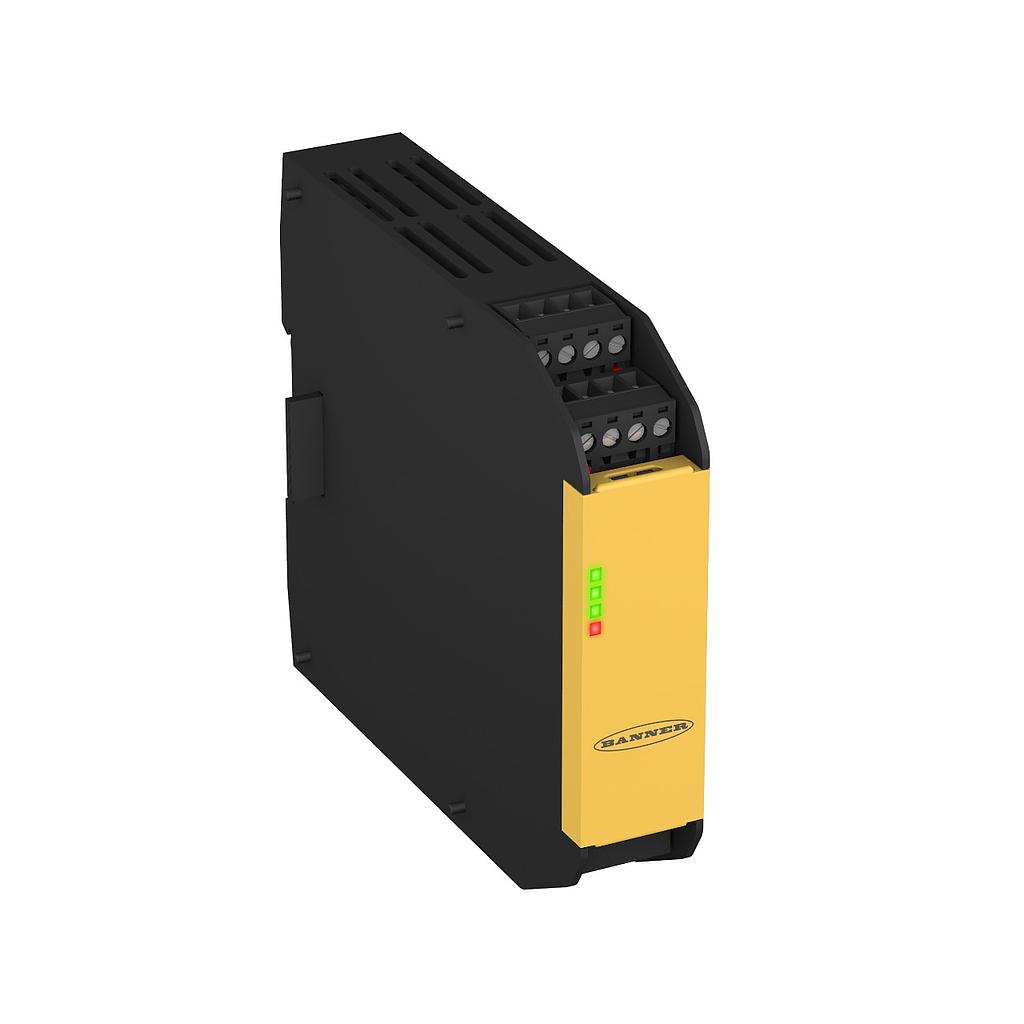

Safety Controller Expansion Module: Solid State Output Module (XS2SO)

https://www.branom.com/web/image/product.template/55075/image_1920?unique=c26756c
(0 review)

Features:

  • Safety Controller Expansion Module: Solid State Output Module
  • 2 pairs of PNP Safety Outputs (.75 Amp each)
  • Used with XS26-2 Safety Controllers
  • Max Operating Temperature: 55 °C
  • Power Consumption: 3.075 A (external load maximum)
  • Ingress Protection: IP20
  • Device Type: Safety Controller
  • Safe Output Rating: OSSD 0.75 A max. @ 24 VDC
  • Supply Voltage: 24 VDC +/- 20%
  • Safety Module Type: Output Module
  • Independently Controlled Safe Outputs: 4
  • PL Rating: e
  • SISTEMA: PFHd = 5.8 x 10-10
  • Relative Humidity: 90% @ 50 °C
  • Vibration: 9-150 Hz at 1g occasional/0.5g continuous
  • Feature: LCD Display: No
  • SIL Rating: 3
  • Safety Category Rating: 4
  • Terminal Type: Screw
  • Response Time: Other
  • Non Safe Output Configuration: Up to 4 PNP
  • Feature: Expandable: Yes
  • Feature: Gate Switch (NC/NC) Input: No
  • Feature: Gate Switch (NC/NO) Input: No
  • Feature: Gate Switch (OSSD) Input: No
  • Feature: Light Curtains/Scanner with EDM Input: No
  • Feature: Light Curtains/Scanner without EDM Input: No
  • Feature: In-Series Diagnostics: No

$ 350.00 350.0 USD $ 350.00

$ 350.00

Not Available For Sale
