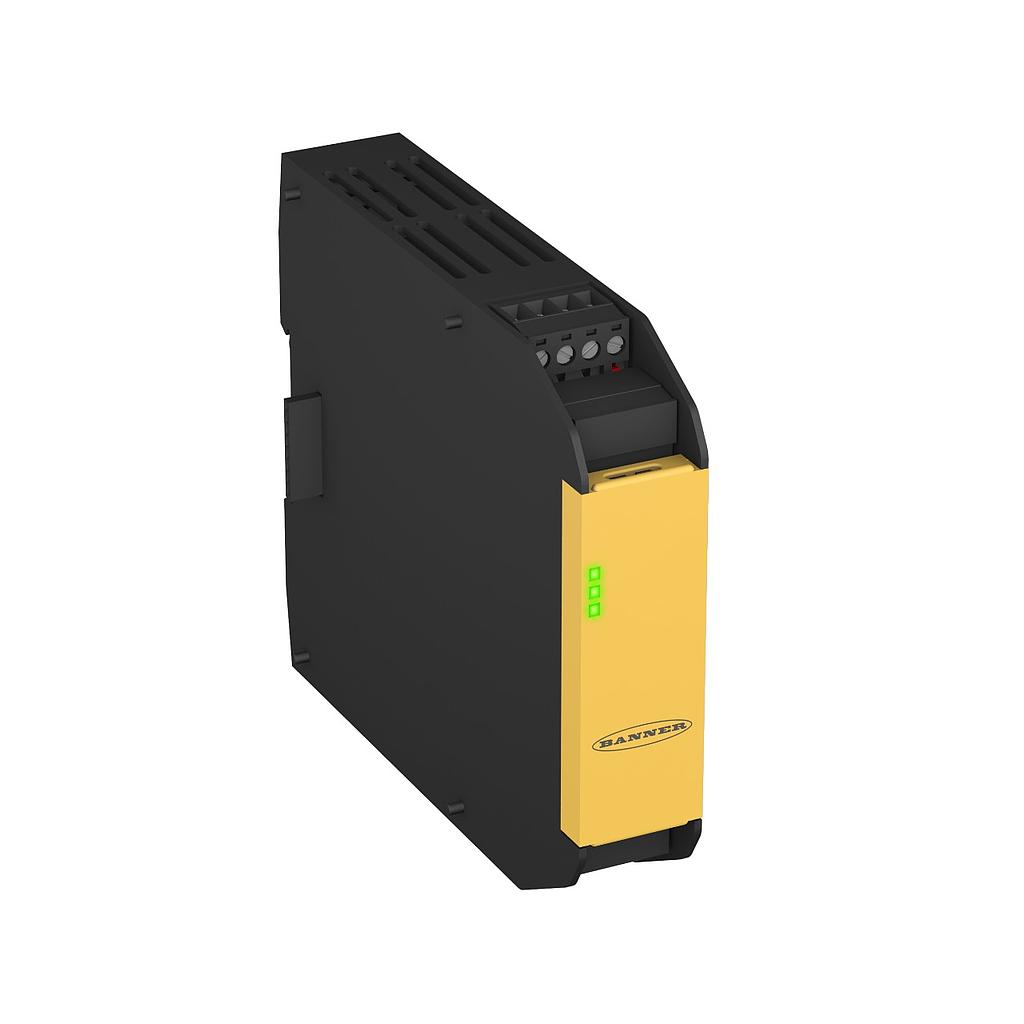

Representative photo. Please check item description for details.

Safety Controller Expansion Module: 8 Terminal Input Module (XS8SI)

https://www.branom.com/web/image/product.template/55074/image_1920?unique=c26756c
(0 review)

Features:

  • Safety Controller Expansion Module: 8 Terminal Input Module
  • 2 convertible inputs
  • Removable Screw Terminals
  • Used with XS26-2 Safety Controllers
  • Max Operating Temperature: 55 °C
  • Power Consumption: 0.07 A (no load); 0.23 A (full load)
  • Ingress Protection: IP20
  • Device Type: Safety Controller
  • Safety Module Type: Input Module
  • Feature: Two-Hand Controls: Yes
  • PL Rating: e
  • THC Rating: IIIC
  • Non Safe Output Rating: 80 mA @ 24 V dc (individual) maximum; overcurrent protected
  • Safety Input - Dual Channel (Solid-State): 50 mA @ 15 - 30 VDC
  • SISTEMA: PFHd = 4 x 10-10
  • Relative Humidity: 90% @ 50 °C
  • Vibration: 9-150 Hz at 1g occasional/0.5g continuous
  • Feature: LCD Display: No
  • SIL Rating: 3
  • Safety Category Rating: 4
  • Input Configuration: Configurable
  • Terminal Type: Screw
  • Input Operation: Simultaneous or Concurrent
  • Number of Safe Inputs: 8
  • Safety Input - Reset: 5-50 mA @ 24 VDC
  • Safety Mat: Yes
  • Input Resistance: 150 Ω max. per lead
  • Recovery Time: 250 ms (typical) / 400 ms (max)
  • Response Time: Other
  • Non Safe Output Configuration: Up to 2 PNP
  • Number of Stored Colors: 8
  • Safety Input - Single Channel: 5-50 mA @ 24 VDC
  • Number of Convertible Inputs: 2
  • Feature: E-Stops/Rope Pulls: Yes
  • Feature: Expandable: Yes
  • Feature: Gate Switch (NC/NC) Input: Yes
  • Feature: Gate Switch (NC/NO) Input: Yes
  • Feature: Gate Switch (OSSD) Input: Yes
  • Feature: Light Curtains/Scanner with EDM Input: Yes
  • Feature: Light Curtains/Scanner without EDM Input: Yes
  • Feature: Motor Speed: No
  • Feature: Muting: Yes
  • Safety Input - Dual Channel (Dry Contact): 5-50 mA @ 24 VDC
  • Feature: Safety Mat: Yes
  • Feature: In-Series Diagnostics: No

$ 350.00 350.0 USD $ 350.00

$ 350.00

Not Available For Sale
