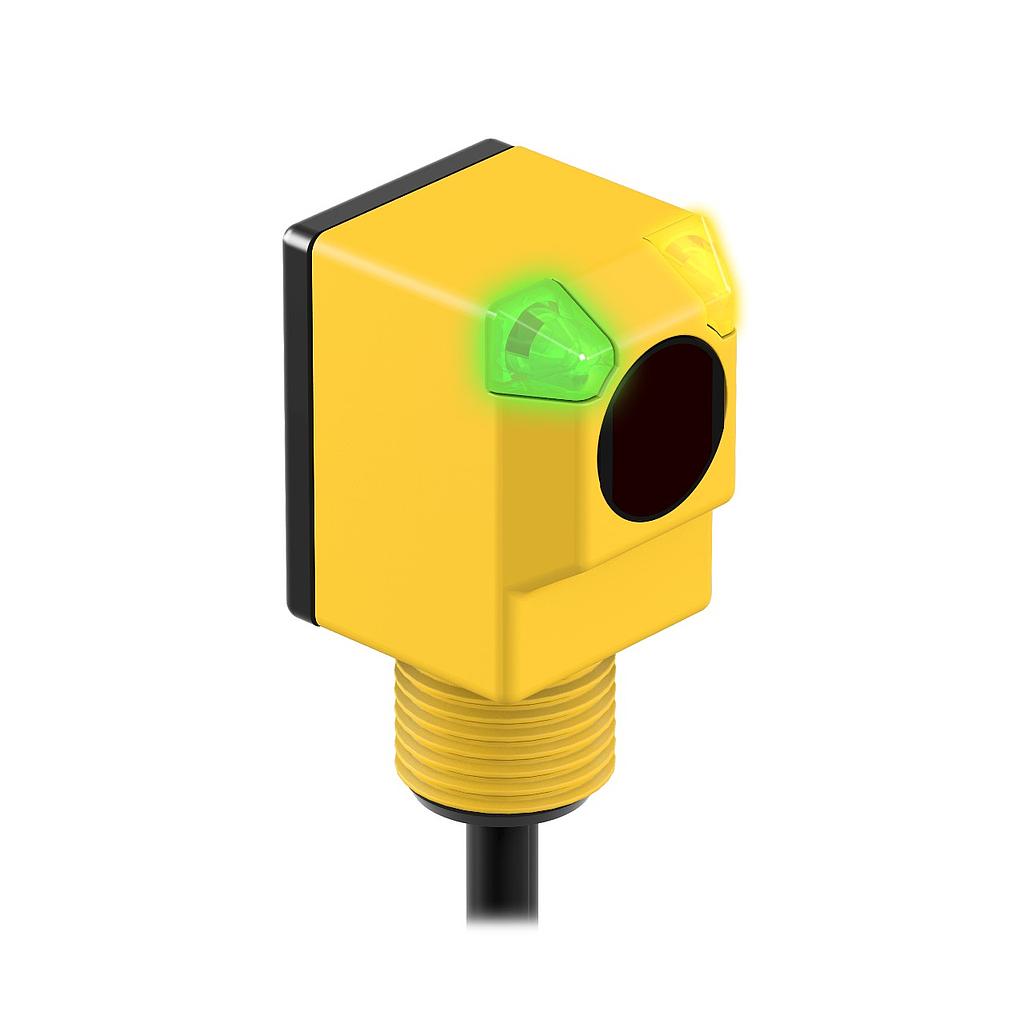

EZ-BEAM Q25 Series: Polarized Retro (Q25RW3LP W/15)

https://www.branom.com/web/image/product.template/54722/image_1920?unique=c26756c
(0 review)

Features:

  • EZ-BEAM Q25 Series: Polarized Retro
  • Range: 2 m
  • Input: 20-250 V ac
  • Output: SPST Solid-state Dark Operate
  • 4.5 m (15 ft) cable
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 20-250 VAC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP69
  • Repeatability (µs): 4000
  • Sensing Beam: Visible Red LED
  • Housing Style: Rectangular
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: Yes
  • Feature: Ecolab Certified: Yes
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 16 ms
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Solid-State AC Switch
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Other
  • NEMA / UL: NEMA 6P
  • Indicator Type: LED
