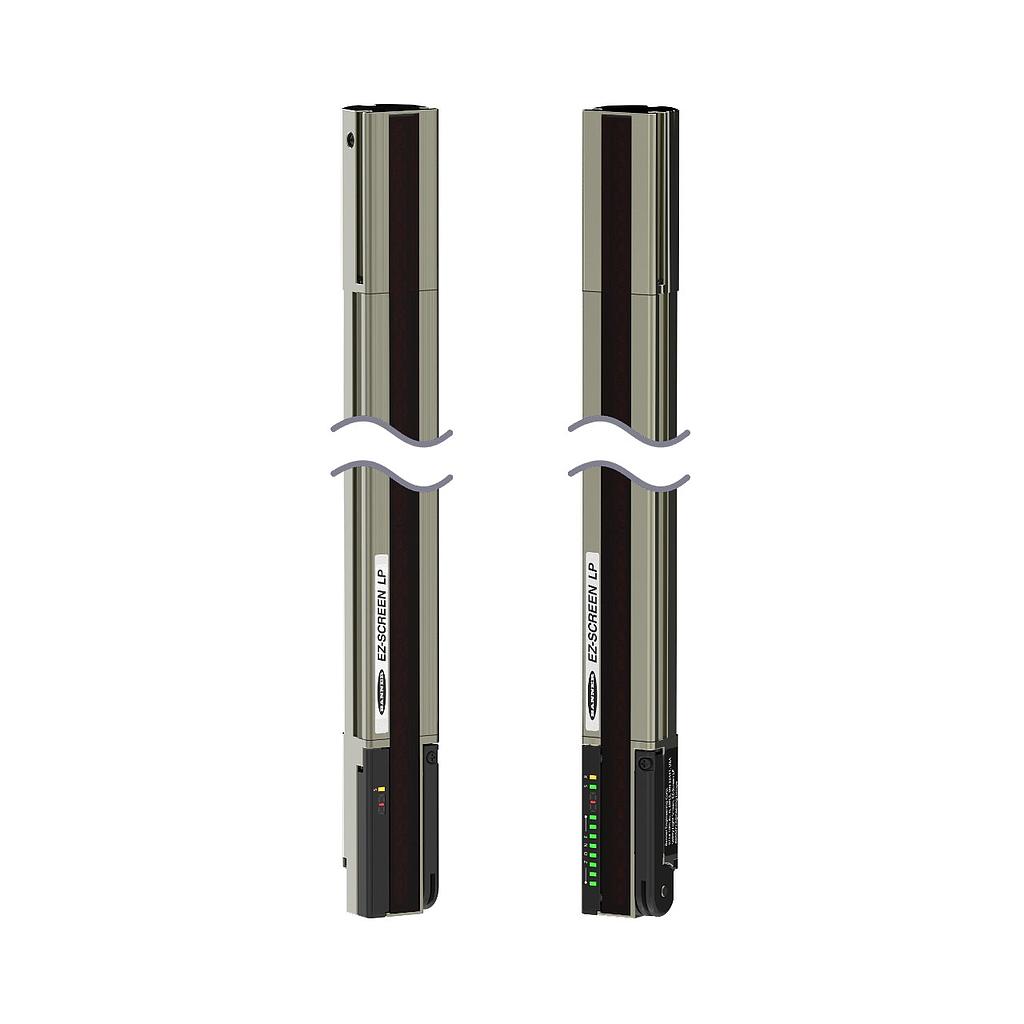

SLPCP14-690N EZS LP PAIR 14mm X 690mm CASCADE (SLPCP14690N)

https://www.branom.com/web/image/product.template/54581/image_1920?unique=c26756c
(0 review)

Features:

  • SLPCP14-690N EZS LP PAIR 14mm X 690mm CASCADE
  • Supply Current: 210 mA max.
  • Min Operating Temperature: 0 °C
  • Max Operating Temperature: 55 °C
  • Ingress Protection: IP65
  • Housing Material_: Aluminum/Acrylic/Zinc
  • Operating Voltage: 24 VDC +/- 15%
  • Physical Dimensions: 28 x 26 mm
  • Feature: Cascade: Yes
  • PL Rating: Ple
  • Vibration: 10-55 Hz at 0.35 mm
  • SIL Rating: SIL3; CL3
  • Recovery Time: 33-220 / 109-800
  • Feature: ESD Safe: Yes
  • Feature: Test Input: Yes
  • OSSD Rating: 24 VDC @ 0.5 A/ea.
  • Overall Length: 690 mm
  • System Type: Emitter/Receiver Pair
  • Operating Distance: 0.1 - 7 m
  • Response Time: 19.5
  • Effective Aperture Angle: Type 4
  • Feature: Reduced Resolution: Yes
  • Feature: End-to-End Sensing: No
  • Defined Area Height: 690 mm
  • Feature: Auxiliary Output: Yes
  • Electrical Safety Class: III
  • Shock: 10 g @ 16 ms
  • Feature: Short Protection: Yes
  • External Monitoring Device: 1 or 2 Channel
  • Feature: Fixed Blanking: Yes
  • Safety Level: Type 4
  • Feature: Integral Muting: No
  • Scan Code: Selectable
  • Trip/Latch Output: Selectable
  • Finish Material: Nickel Plated
  • Short Protection: Yes
