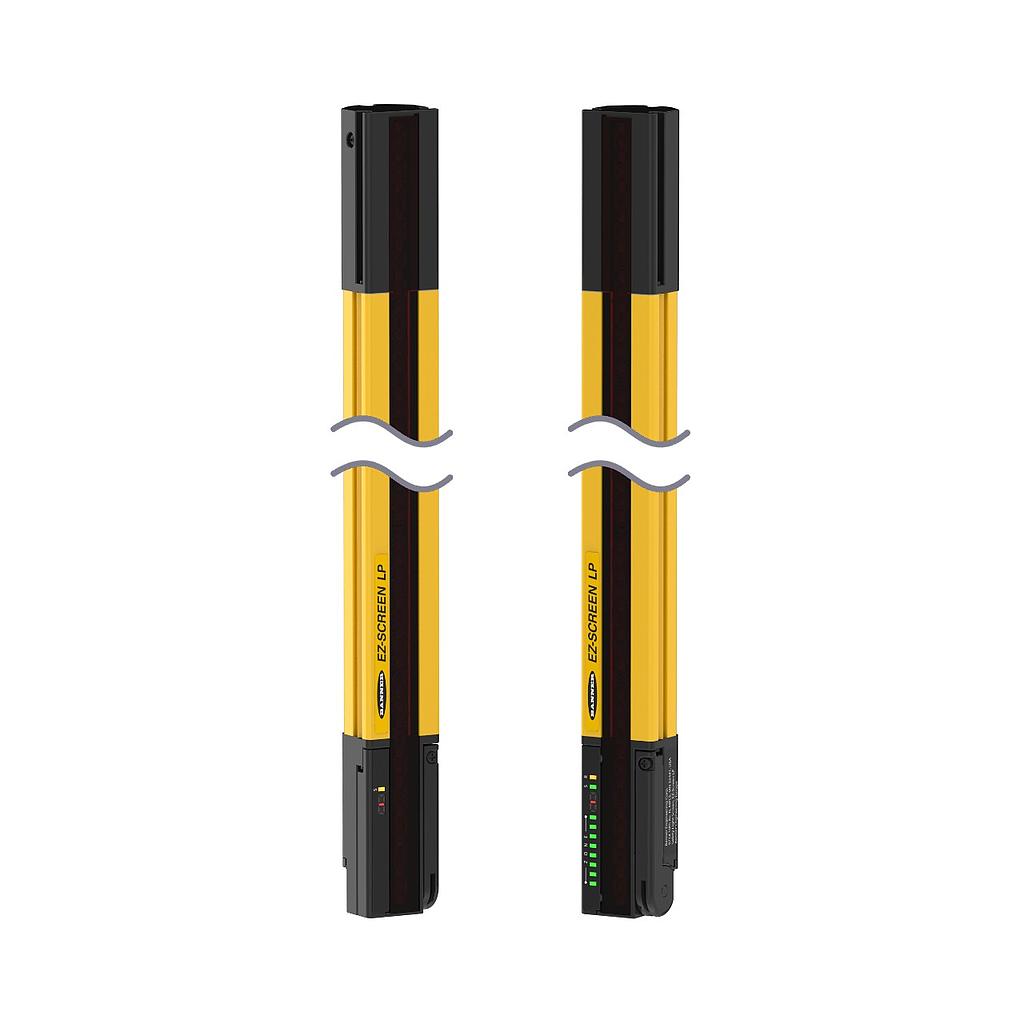

EZ-SCREEN Low Profile Pair , SLPP14-1250

(0 review)

Features:

Defined Area Height Range: > 950 - <= 1300 mm

Feature: Low Profile: Yes

Supply Current: 210 mA max.

Min Operating Temperature: 0 °C

Max Operating Temperature: 55 °C

Ingress Protection: IP65

Housing Material_: Aluminum

Operating Voltage: 24 VDC +/- 15%

Physical Dimensions: 28 x 26 mm

PL Rating: e

Vibration: 10-55 Hz at 0.35 mm

SIL Rating: SIL3; CL3

Recovery Time: 33-220 ms / 109-800 ms

Feature: ESD Safe: No

Feature: Test Input: Yes

OSSD Rating: 24 VDC @ 0.5 A each

System Type: Emitter/Receiver Pair

Operating Distance: 0.1 - 7 m

Response Time: 31.5 ms

Effective Aperture Angle: Type 4 Per IEC 61496-2

Feature: Reduced Resolution: Yes

Feature: End-to-End Sensing: No

Feature: Fault Output: Yes

Defined Area Height: 1250 mm

Feature: Auxiliary Output: Yes

Electrical Safety Class: III

Shock: 10g at 16ms (6000 cycles)

Feature: Short Protection: Yes

External Monitoring Device: 1 or 2 Channel

Feature: Fixed Blanking: Yes

Safety Level: Type 3

Feature: Integral Muting: No

Scan Code: Selectable

Trip/Latch Output: Selectable

Housing Finish: Yellow Polyester

Max Operating Range: > 4 to <= 8 m

Connector Type: Removable Disconnect

Finish Material: Yellow Polyester

$ 4,974.00 4974.0 USD $ 4,974.00

$ 4,974.00

This combination does not exist.

Add to cart Buy now
