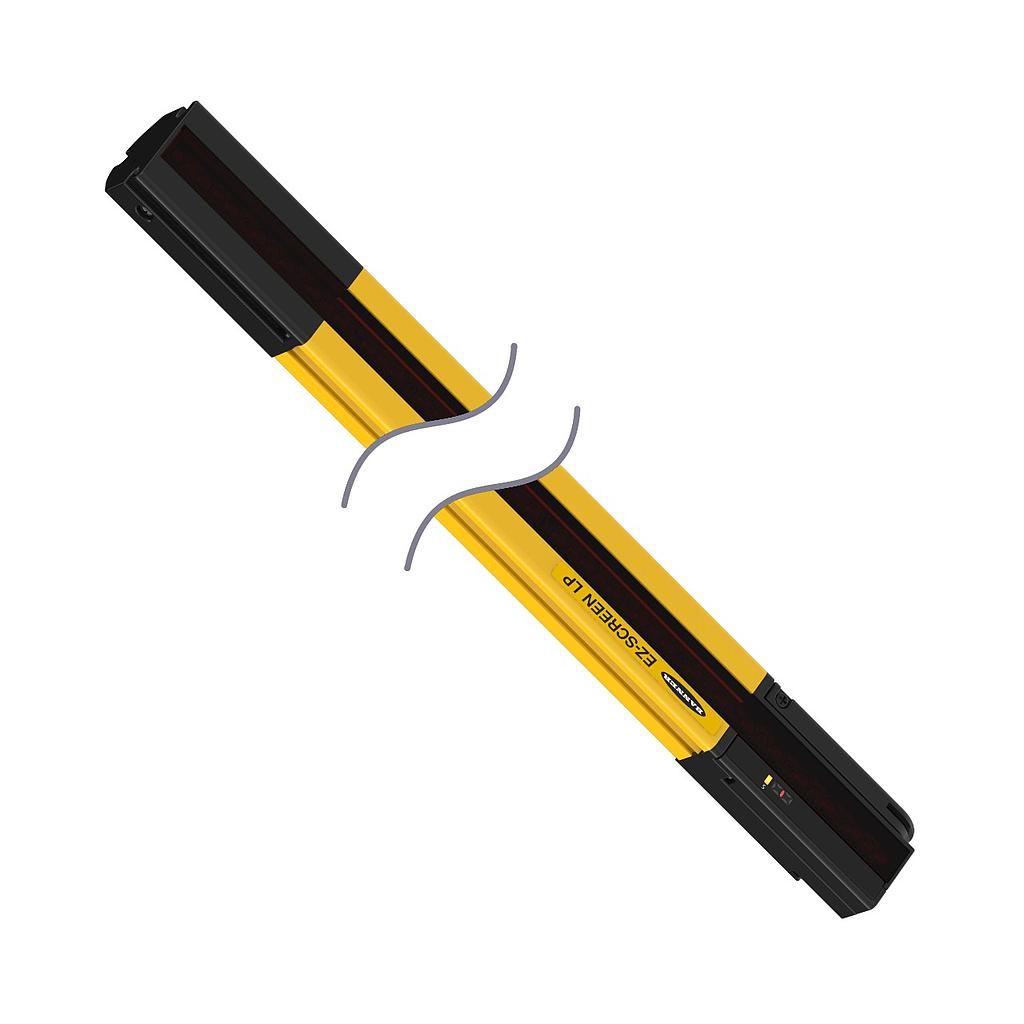

EZ-SCREEN Low Profile Emitter, SLPE25-550P8

(0 review)

$ 947.00 947.0 USD $ 947.00

This combination does not exist.

Add to cart Buy now

Description

Features:

Defined Area Height Range: > 350 - <= 650 mm

Feature: Low Profile: Yes

Supply Current: 60 mA max.

Min Operating Temperature: 0 °C

Max Operating Temperature: 55 °C

Ingress Protection: IP65

Housing Material_: Aluminum

Operating Voltage: 24 VDC +/- 15%

Physical Dimensions: 28 x 26 mm

PL Rating: e

Vibration: 10-55 Hz at 0.35 mm

SIL Rating: SIL3; CL3

Recovery Time: 25-152 / 81-495 ms

Feature: ESD Safe: No

Feature: Test Input: Yes

System Type: Emitter

Operating Distance: 0.1 - 7 m

Response Time: 11 ms

Effective Aperture Angle: Type 4 Per IEC 61496-2

Feature: Reduced Resolution: Yes

Feature: End-to-End Sensing: No

Number of Pins (Receiver/Emitter): 8

Feature: Fault Output: Yes

Defined Area Height: 550 mm

Feature: Auxiliary Output: No

Electrical Safety Class: III

Shock: 10g at 16ms (6000 cycles)

Feature: Short Protection: Yes

External Monitoring Device: None

Feature: Fixed Blanking: No

Safety Level: Type 3

Feature: Integral Muting: No

Scan Code: Selectable

Trip/Latch Output: N/A

Housing Finish: Yellow Polyester

Max Operating Range: > 4 to <= 8 m

Connector Type: M12 Pigtail (Yellow)

Finish Material: Yellow Polyester
