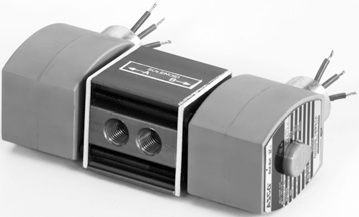

Representative photo. Please check item description for details.
8340 Series Air-Only Solenoid Valve
Features
- Air-only design for cylinder control
- Up to eight single and dual solenoid valves, in any combination, can be manifolded
- Sub-base constructions have separate cylinder connections and common pressure and exhaust connections at each end. Can be assembled in the field by simply inserting tie rods through holes in base
- Group-mounted constructions have common pressure connections at each end and separate cylinder and exhaust connections
- Can be factory assembled or grouped in the field with strong snap-on clamps, supplied
Features
- Air-only design for cylinder control
- Up to eight single and dual solenoid valves, in any combination, can be manifolded
- Sub-base constructions have separate cylinder connections and common pressure and exhaust connections at each end. Can be assembled in the field by simply inserting tie rods through holes in base
- Group-mounted constructions have common pressure connections at each end and separate cylinder and exhaust connections
- Can be factory assembled or grouped in the field with strong snap-on clamps, supplied
Specifications
| 8340 Series Air-Only Sol Valve | |
|---|---|
| Product Specifications | [G001] Single Valve | Single Solenoid, [G002] Single Valve | Dual Solenoid, [A003] Group Mounted | Single Solenoid, [A008] Group Mounted | Dual Solenoid, [A004] Sub-Base Mounted | Single Solenoid, [A005] Sub-Base Mounted | Dual Solenoid |
| Solenoid Option | None, [EF] Explosionproof (G001), [EF] Explosionproof (G002), [J] Junction Box (G001), [OF] Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, [HB] Class H - Intermediate Power (A003, G001, G003), [HT] Class H - High Temperature (A005), [KP] Class F - Intermediate Power - Screw Terminals, [SD] Class F - Intermediate Power - DIN Connection, [SP] Class F - Intermediate Power - Spade Terminals, [SS] Class H - Intermediate Power - Spade Terminals, [SV] Class H - Intermediate Power - DIN Connection |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Seat/Disc/Etc. Material | None, [V] FKM |
| Optional Mounting Bracket | Without, [MB] Mounting Bracket |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Optional Manual Operator | Without |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 1/4 in |
| Valve: Orifice | 5/64in |
| Valve: Body Material | Aluminum |
| Valve: Disc Material | PE |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Core Springs | Stainless Steel |
| Valve: Shading Coil | Copper |
| Valve: Seal Material | NBR |
| Valve: Enclosure Type | Redhat II - Watertight, Redhat II - Explosionproof & Watertight, Redhat - Type I, Redhat - Explosionproof |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Function | 4-Way Single Solenoid, 4-Way Dual Solenoid |
| Valve: Media | Air-Inert Gas |
| Valve: Brand | Asco |
| Valve: Min Temperature °F | 32 |
| Valve: Max Temperature °F | 125 |
| Valve: Flow Factor (Cv) | 0.10 |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
