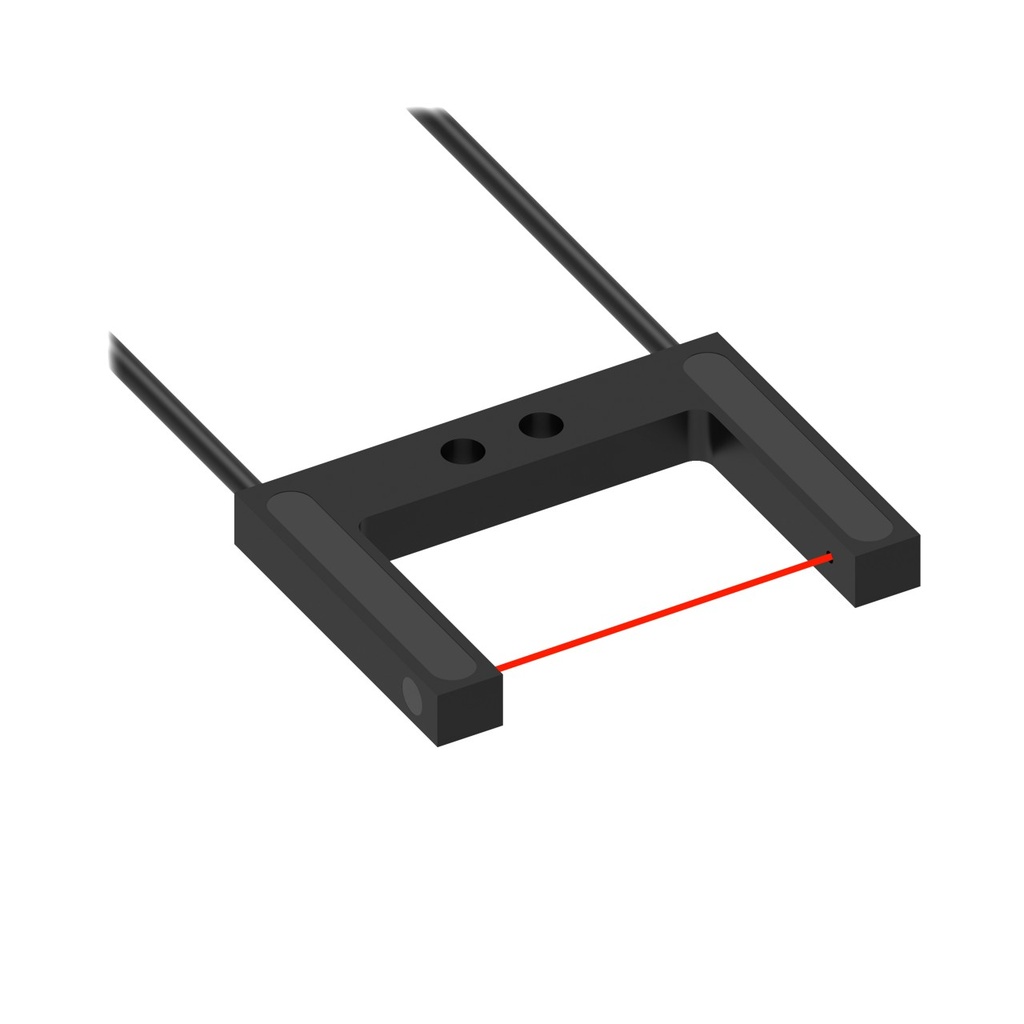

Plastic Fiber, Opposed Mode (PDIS48UM32)
Representative photo. Please check item description for details.

Plastic Fiber, Opposed Mode (PDIS48UM32)

https://www.branom.com/web/image/product.template/203908/image_1920?unique=c26756c
(0 review)

Features:

    Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 2.4 m; Slot; Free cut
    • Max Operating Temperature: 70 °C
  • Housing Style: Slot
  • Sensing Mode (Detailed): Slot
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Slot
  • Tariff Fiber Meters: 4.8 fbm
  • Min Bend Radius: 2 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 37.9 x 32.0 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Slot
  • Termination: Free Cut
  • Sensing End Material (Specific): Polyethylene
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 37.9 x 32.0 mm
  • Fiber Length: 2.438 m
  • Fiber Optic Type: Plastic
  • Beam Exit: Right Angle
  • Feature: Liquid Level: No
  • Min Hinged Door Size: 2 mm
  • Min Repeat Bending Endurance: 1000
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Slot Width: 32 mm
  • Minimum Bend Radius: 2 mm

$ 229.00 229.0 USD $ 229.00

$ 229.00

Not Available For Sale

    This combination does not exist.
