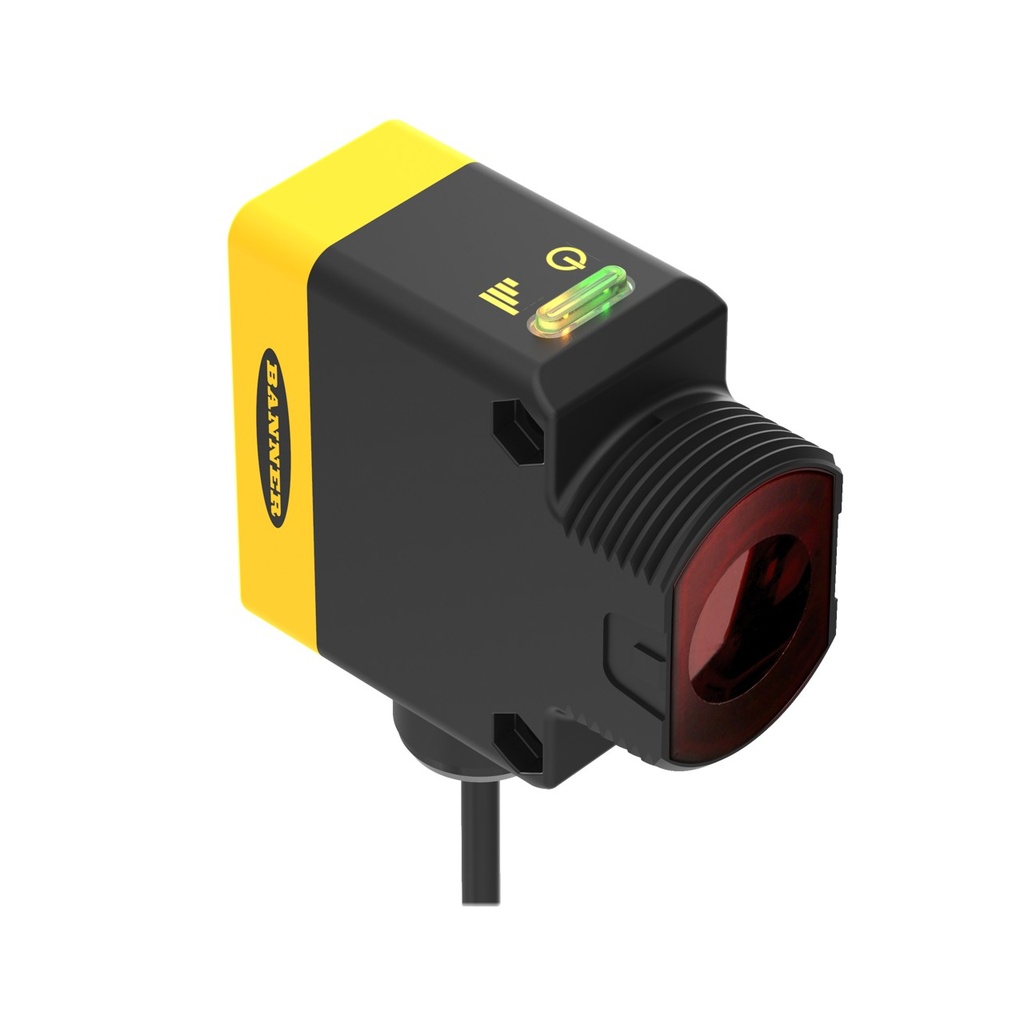

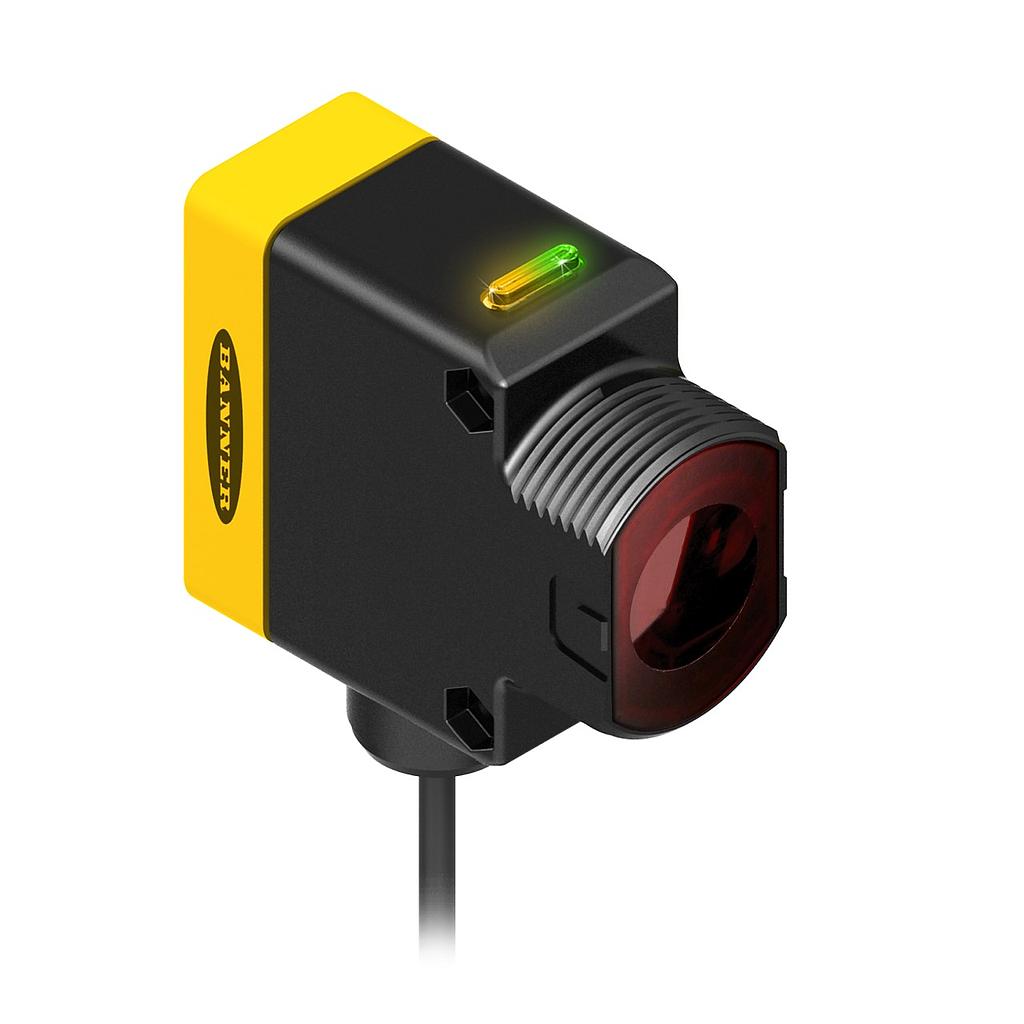

WORLD-BEAM QS30 Series: H2O SHP Receiver (QS30RRXSH2OQ5)

https://www.branom.com/web/image/product.template/52982/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS30 Series: H2O SHP Receiver
  • Range: 8 m
  • Input: 10-30 V dc
  • Output: DO
  • Bipolar: 1 NPN
  • 1 PNP
  • Euro 5-pin 6 in Pigtail QD
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 5000
  • Sensing Beam: Long Infrared (Water Detection)
  • Housing Style: Rectangular w/M30 Mount
  • Max Sensing Distance: 8000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: Yes
  • Number of Pins: 5
  • Output Response Time: 10 ms
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA PW12
  • Cord/Cable Length: 0.15 m
  • Indicator Type: Bargraph

$ 286.00 286.0 USD $ 286.00

$ 286.00

Not Available For Sale
