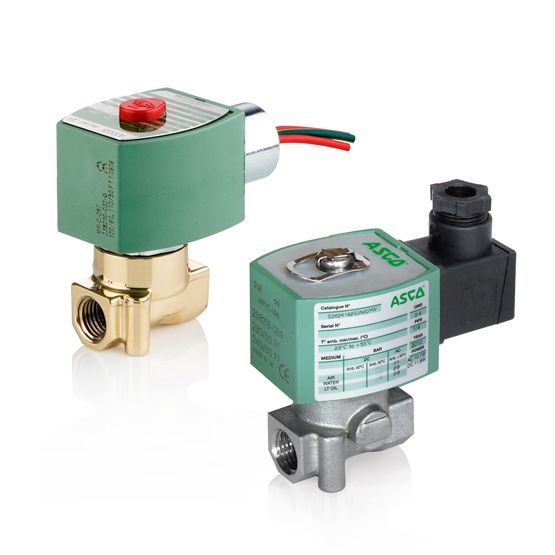

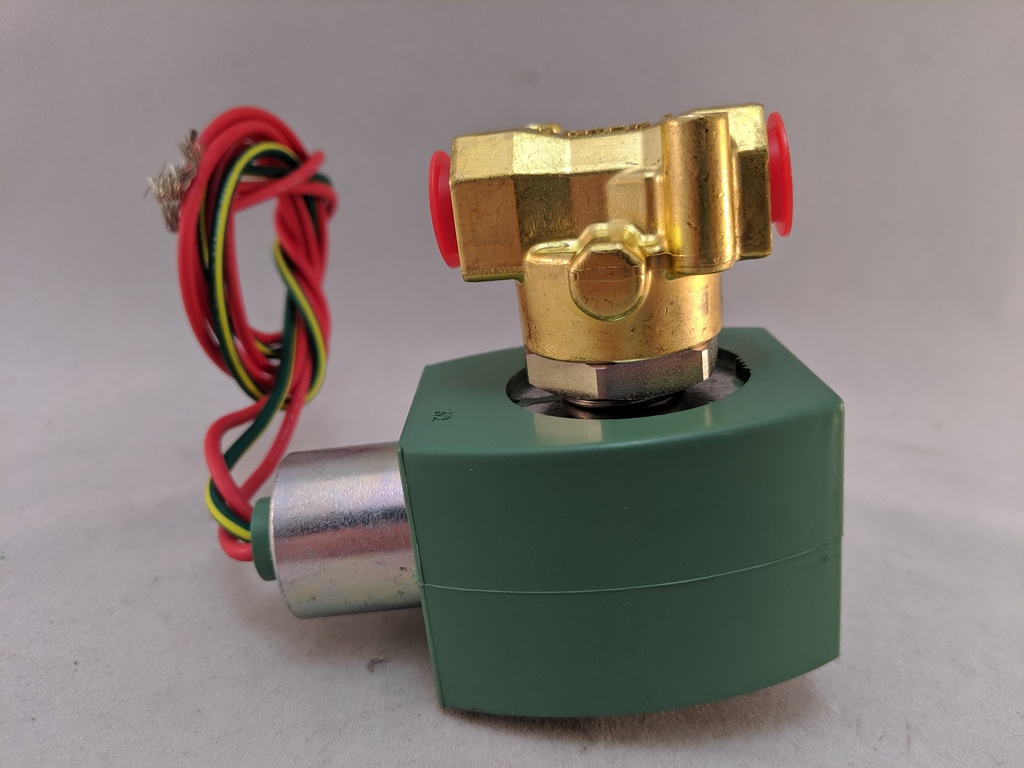

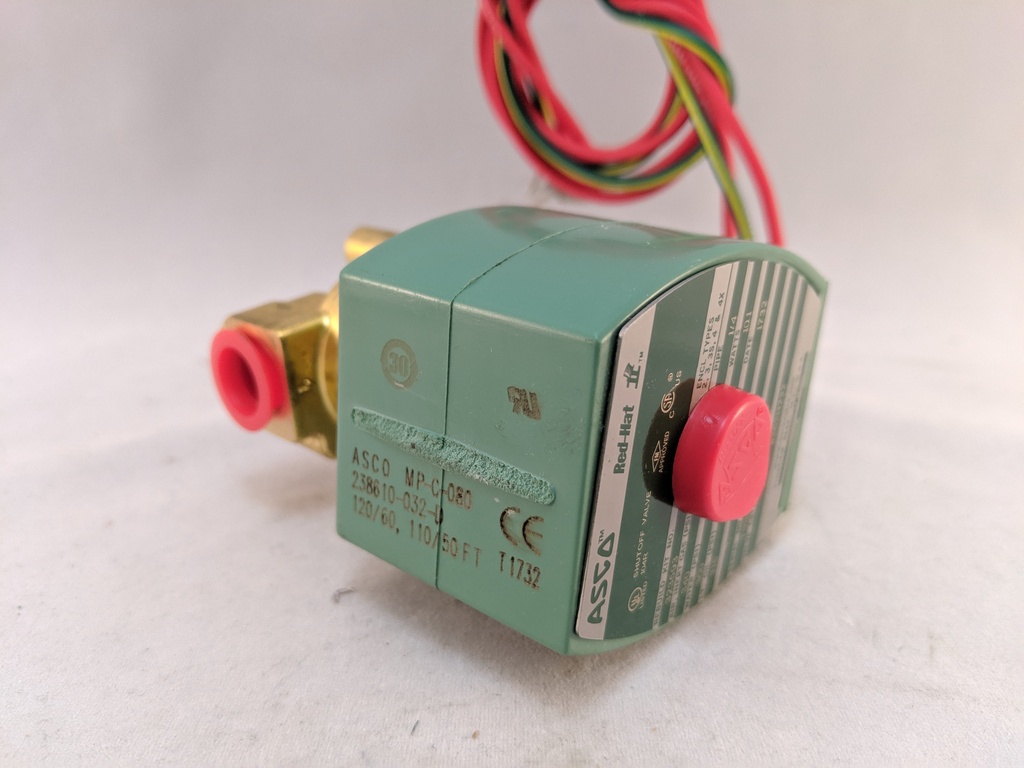

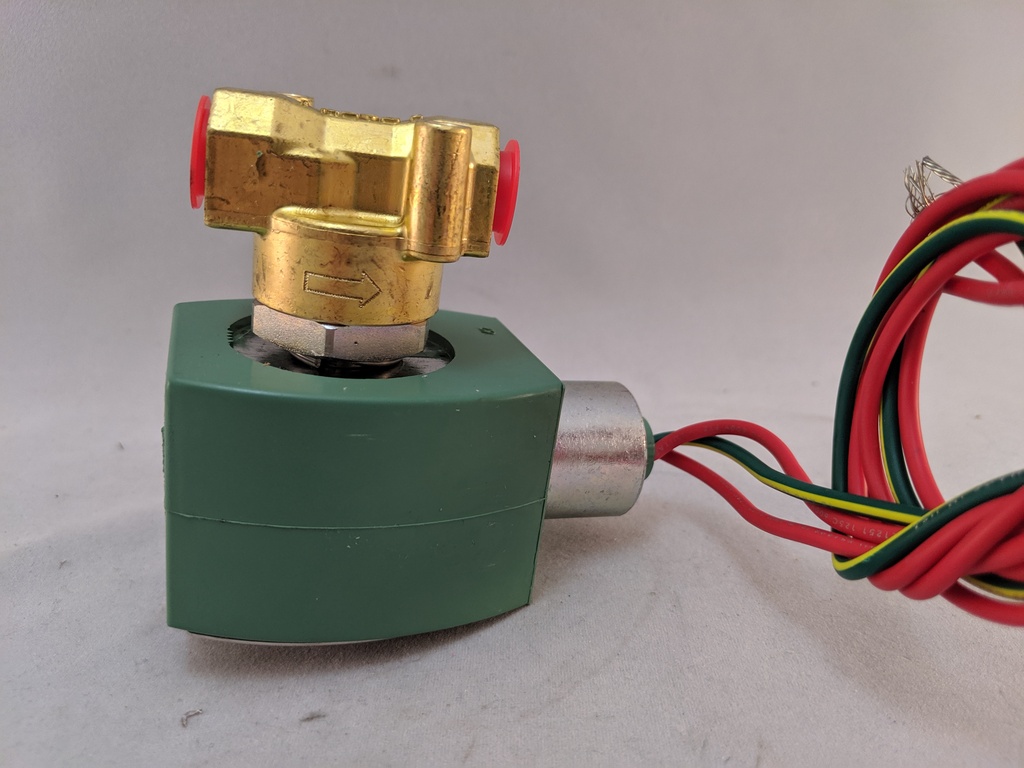

262 Series 2-Way Solenoid Valve, 1/4" NPT, 120 VAC, Brass, 2 Way-2/2 NC
The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 0.35 / 0.30
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid - Direct Acting
- Media: Air, Inert Gas, Water, Light Oil
- Product Weight: 0.55 lbs
- Order Code: 22021
- Kit Number: 323593
- Coil Class: FT
- Coil Number: 238610-032-D
- Min to Max Ambient Temperature: -13 - 131 °F
- Min to Max Fluid Temperature: -13 - 180 °F
- Orifice Size: 1/8 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 10.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/4 X 1/8 2NC BRASS 10.1/F AC
- Holding Current (VA): 25
- Seating Elastomer: NBR
- Mounting Direction: Any:
The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 0.35 / 0.30
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid - Direct Acting
- Media: Air, Inert Gas, Water, Light Oil
- Product Weight: 0.55 lbs
- Order Code: 22021
- Kit Number: 323593
- Coil Class: FT
- Coil Number: 238610-032-D
- Min to Max Ambient Temperature: -13 - 131 °F
- Min to Max Fluid Temperature: -13 - 180 °F
- Orifice Size: 1/8 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 10.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/4 X 1/8 2NC BRASS 10.1/F AC
- Holding Current (VA): 25
- Seating Elastomer: NBR
- Mounting Direction: Any:
Specifications
| Valve: Actuation | Solenoid |
| Valve: Type | Automated |
