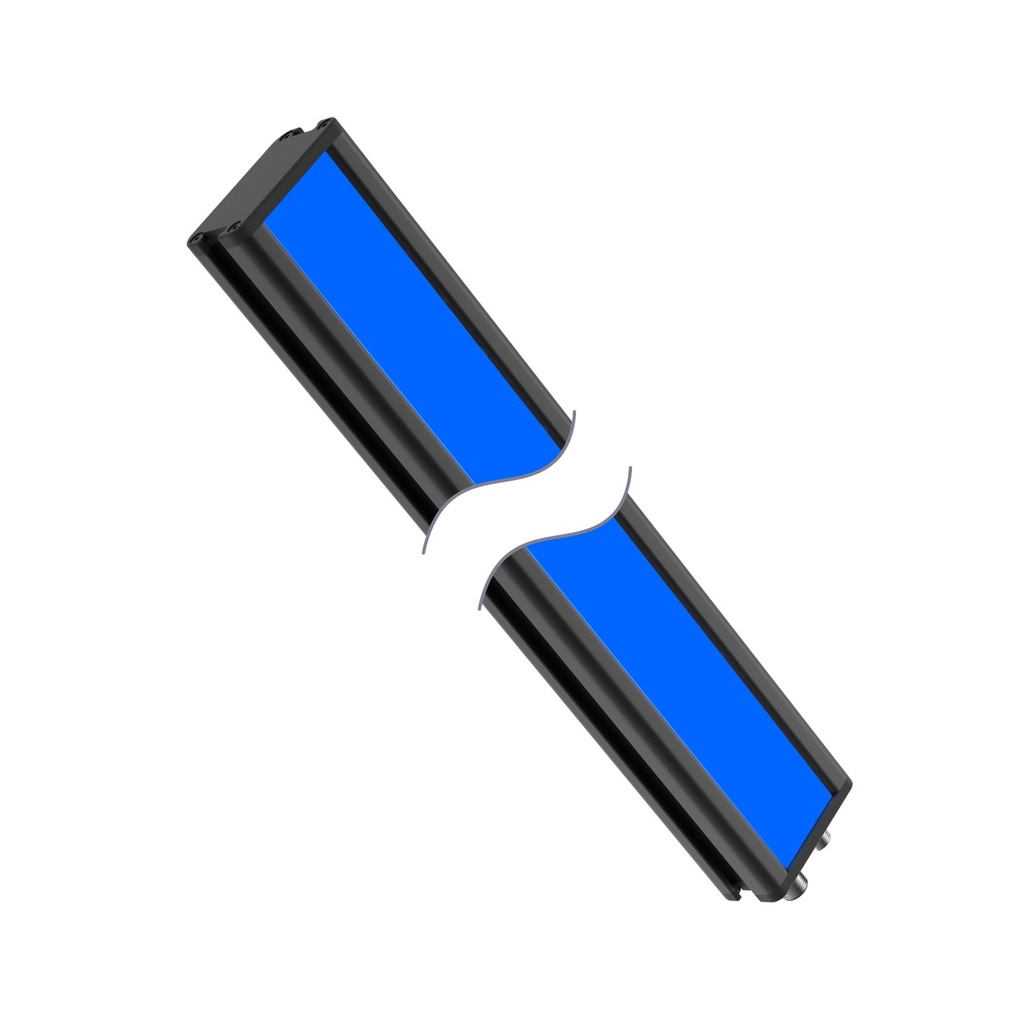

LINEAR ARRAY BLU ACRY DIFF 1FT DIMMABLE ACTIVE LOW (LEDBLA290XD6-PLQ)

https://www.branom.com/web/image/product.template/52717/image_1920?unique=c26756c
(0 review)

Features:

  • LINEAR ARRAY BLU ACRY DIFF 1FT DIMMABLE ACTIVE LOW
  • Power: DC
  • Max Current Color: 1000 mA
  • Max Operating Temperature: 50 °C
  • Housing Style: Linear Strip
  • Device Type: Bar Light
  • Housing Material_: Anodized Aluminum
  • Physical Dimensions: 332.6 x 59.4 x 32.6 mm
  • Supply Voltage: 24 V DC
  • Feature: Quick Disconnect: Yes
  • Color Technology: Standard LED
  • Number of Input Pins/Conductors: 5
  • Color: Blue
  • QD Type/Cable Length: M12; requires mating cordset
  • Lens Focusing Angle/Field of View: 6.5°
  • Intensity Adjustment: Potentiometer and Analog
  • Connection Type: Integral QD
  • Lens Focusing Angle (°)/Field of View: 6.5°

$ 1,150.00 1150.0 USD $ 1,150.00
