AVENTICS CH01 Series Throttle Valve, 1 mm Bore Diam, G 1/8 Internal Thread Pilot, Aluminum

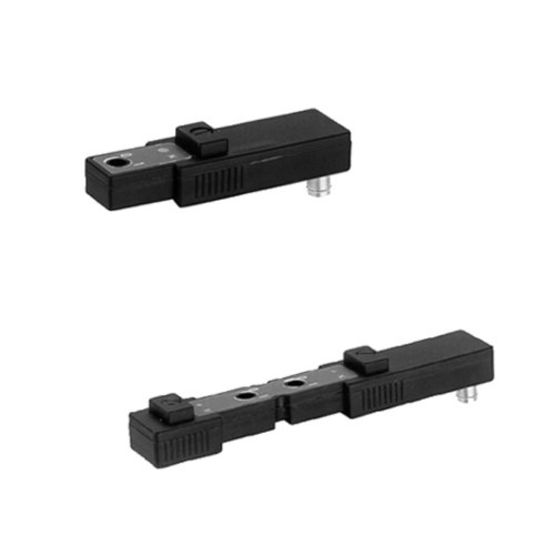

The AVENTICS Series CON-CB offers contact bridges which offers additional electrical connection types for Series CD01-PA, 579/589 as well as for other Form C coils. With the contact bridge it is possible to change Form C connection to SNAP D8 or M12.
Features
- Number of solenoid coils: 1
- Min. ambient temperature: -15 °C
- Max. ambient temperature: 50 °C
- Wire cross-section: 0.14 mm²
- Cable-Ø: 4.8 mm
- Cable length: 0.2 m
- n-Wire: 9
- Protection class: IP65
- Protective circuit: 43 V bi-directional
- Electrical connection 1: Plug
- Number of poles: 8-pin
- Cable exit: straight
- Cable exit angle: 180°
- Electrical connection 2: Socket
- Electrical connection 2: form C
- Number of poles: 2-pin
- Cable exit: straight
- Electrical connection 3: Socket
- Electrical connection 3: mini-DIN
- Number of poles: 8-pin
- Cable exit: straight
- Operational↩voltage: 24 V
- Operational↩voltage: DC
- DC operating voltage: 24 V
- Voltage tolerance DC: -20% / +20%:
