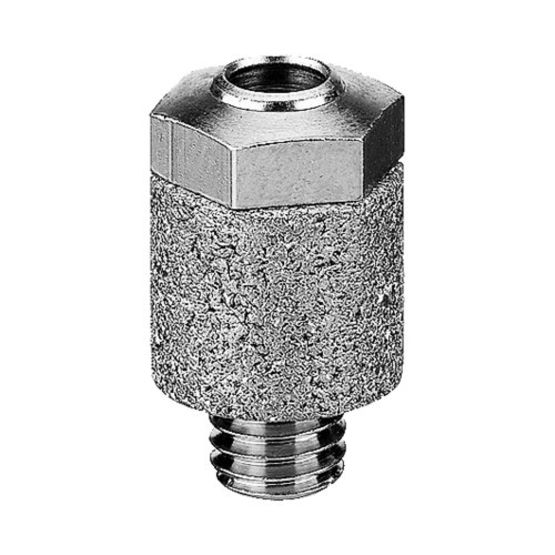

Representative photo. Please check item description for details.
AVENTICS CH02 Series Throttle Valve, G 1/4 External Thread, Screw-In Throttle
Series CH throttle valves can be used for nominal flows up to 4,100 l/min. The Series features special versions with integrated silencer and screw-in variants.
Features
- Working pressure min.: 0 bar
- Working pressure max: 10 bar
- Min. ambient temperature: -25 °C
- Max. ambient temperature: 80 °C
- Min. medium temperature: -25 °C
- Max. medium temperature: 80 °C
- Port 1: G 1/8
- Type: Throttle valve with silencer
- Medium: Compressed air
- Compressed air connection type: External thread
- Flow Qn: 700 l/min
- Tightening torque for silencer max.: 3 Nm
- Weight: 0.025 kg
- Housing material: Brass
- Seal material: Acrylonitrile butadiene rubber
- Silencer material: Stainless Steel:
