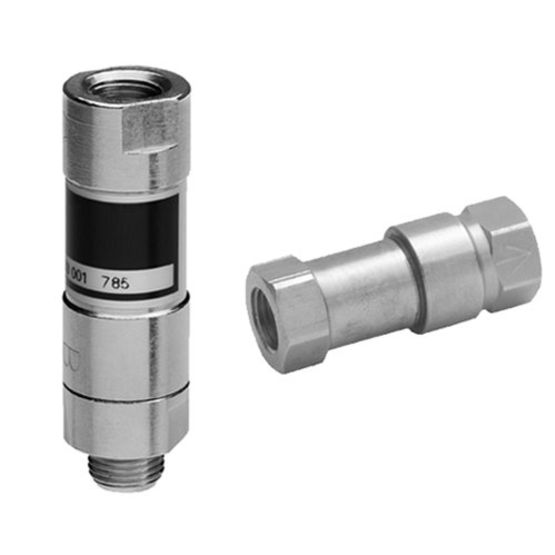

Representative photo. Please check item description for details.
AVENTICS NR01 Series Non-Return Valve, G 1/8 Port, Brass Housing, NBR Sealing
AVENTICS Series NR01, Thanks to an array of connection options, the NR non-return valves can be screwed in separately and are also suitable for direct installation in piping.
Features
- Compressed air connection 1: G 1/8
- Compressed air connection type 1: Internal thread
- Mounting: thread-in
- Compressed air connection type 2: External thread
- Type: Poppet valve
- Compressed air connection 2: G 1/8
- Nominal flow Qn 1 to 2: 920 l/min
- Working pressure min.: 0.2 bar
- Working pressure max: 10 bar
- Min. ambient temperature: -10 °C
- Max. ambient temperature: 70 °C
- Min. medium temperature: -10 °C
- Max. medium temperature: 70 °C
- Medium: Compressed air
- Weight: 0.02 kg
- Housing material: Brass
- Seal material: Acrylonitrile butadiene rubber:
