Representative photo. Please check item description for details.

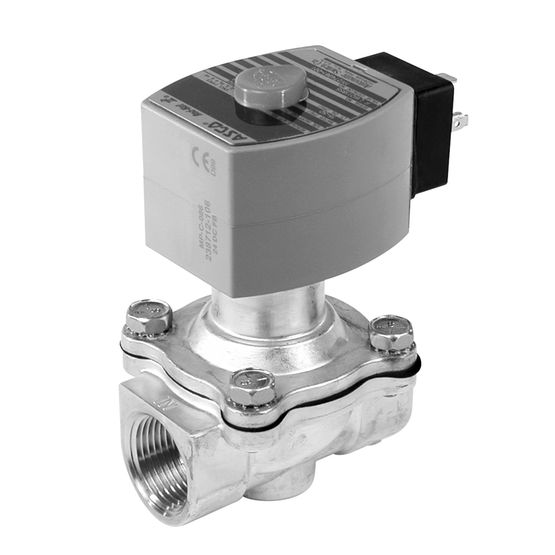

8203 Series Posiflow Solenoid Valve
The ASCO Series 203 is a line of pilot-operated diaphragm Posiflow solenoid valves that are designed to precisely control the flow of water and other liquids. The valves are ideal for food and beverage, medical and life science, and water and wastewater applications.
Features
- Body Material: Brass
- Valve Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/2
- Valve Actuation: Solenoid
- Voltage: 24DC
- Kit Number: *000000*
- Coil Class: FB
- Coil Number: 238710-106-D
- Watt Rating: 22.6 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/2 X 1/2 2NC BRASS 22.6/F DC:
The ASCO Series 203 is a line of pilot-operated diaphragm Posiflow solenoid valves that are designed to precisely control the flow of water and other liquids. The valves are ideal for food and beverage, medical and life science, and water and wastewater applications.
Features
- Body Material: Brass
- Valve Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/2
- Valve Actuation: Solenoid
- Voltage: 24DC
- Kit Number: *000000*
- Coil Class: FB
- Coil Number: 238710-106-D
- Watt Rating: 22.6 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/2 X 1/2 2NC BRASS 22.6/F DC:
Specifications
| Asco 8203 Series Posiflow | |
|---|---|
| Coil Options | None, [HB] Class H - Intermediate Power, [SD] Class F - Intermediate Power - DIN Connection, [SV] Class H - Intermediate Power - DIN Connection |
| Lead Length | Standard, 18" [D] |
| Product Specifications | [G002] Brass | 1/4" Pipe | 3/32" Orifice | .14 Cv Flow |
| Voltage | DC24/DC |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Breaker Piece | Brass |
| Valve: Pipe Size | 1/4 in |
| Valve: Actuation | Solenoid |
| Valve: Body Material | Copper Alloy |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | NBR |
| Valve: Enclosure Type | Redhat II |
| Valve: Flow Factor (Cv) | 0.14 |
| Valve: Media | Air-Inert Gas, Water, Light Oil |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Max Temperature °F | 104 |
| Valve: Seal Material | NBR |
| Valve: Springs | Stainless Steel |
| Valve: Core Tube | Stainless Steel |
| Valve: Diaphragm Material | NBR |
| Valve: Min Temperature °F | 14 |
| Valve: Rider Rings | PTFE |
