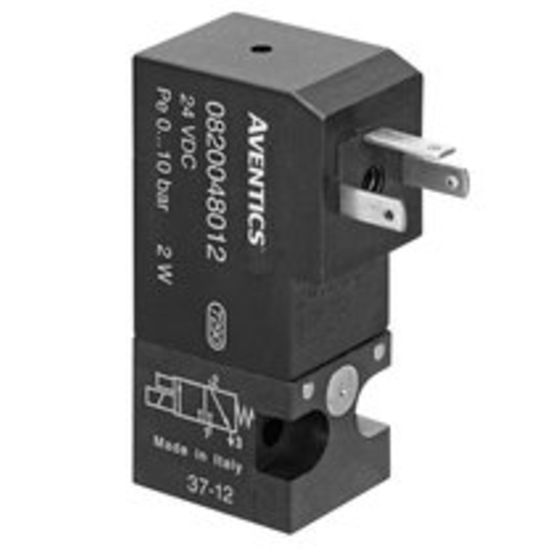

Representative photo. Please check item description for details.
AVENTICS DO16 Series 3/2 Directional Poppet Valve NO, 230 VAC, ISO 15217, Form C Plug, Manual Override w/o Detent
Features
- Activation: Electrically
- Switching principle: 3/2, with spring return
- Function: NO
- Working pressure min.: 0 bar
- Working pressure max: 6 bar
- Operational voltage AC at 50 Hz: 230 V
- Voltage tolerance AC 50 Hz: -10% / +15%
- Manual override: without detent
- Electrical connection type: Plug
- Electrical connection size: ISO 15217, form C
- Valve type: Poppet valve
- Sealing principle: Soft Seal
- Connection type: Plate connection
- Min. ambient temperature: -10 °C
- Min. medium temperature: -10 °C, 50 °C
- Medium: Compressed air
- Max. particle size: 5 µm
- Oil content of compressed air min.: 0 mg/m³
- Oil content of compressed air max.: 5 mg/m³
- Nominal flow Qn 1 to 2: 16 l/min
- Nominal flow Qn 2 to 3: 19 l/min
- Holding power AC 50 Hz: 1.6 VA
- Switch-on power AC 50 Hz: 2.2 VA
- Duty cycle: 100 %
- Protection class acc. to DIN EN 61140: Class I:
