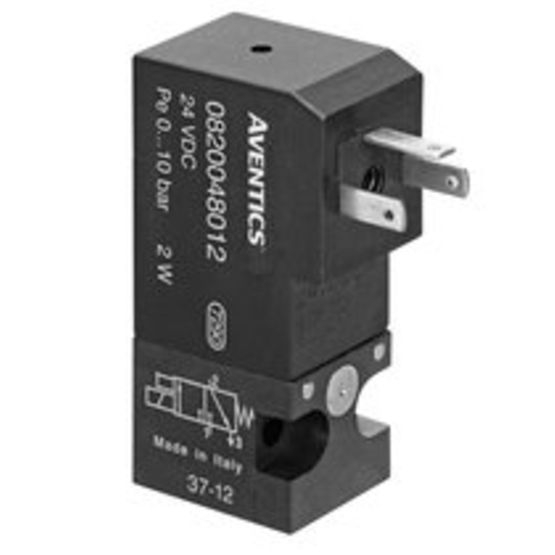

Representative photo. Please check item description for details.
AVENTICS DO16 Series 3/2 Directional Poppet Valve NO, 24 VDC, ISO 15217, Form C Plug, Manual Override w/Detent
Features
- Activation: Electrically
- Switching principle: 3/2, with spring return
- Function: NC
- Working pressure min.: 0 bar
- Working pressure max: 10 bar
- DC operating voltage: 24 V
- Voltage tolerance DC: -10% / +15%
- Manual override: with detent
- Electrical connection type: Plug
- Electrical connection size: ISO 15217, form C
- Valve type: Poppet valve
- Sealing principle: Soft Seal
- Connection type: Plate connection
- Min. ambient temperature: -10 °C
- Min. medium temperature: 50 °C, -10 °C
- Medium: Compressed air
- Max. particle size: 5 µm
- Oil content of compressed air min.: 0 mg/m³
- Oil content of compressed air max.: 5 mg/m³
- Nominal flow Qn 1 to 2: 25 l/min
- Nominal flow Qn 2 to 3: 36 l/min
- Power consumption DC: 2 W
- Duty cycle: 100 %
- Protection class acc. to DIN EN 61140: Class I
- Protection class with connection: IP65:
