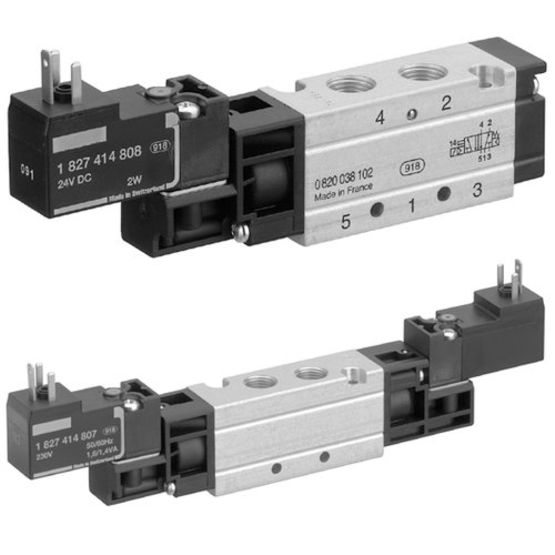

Representative photo. Please check item description for details.
AVENTICS WV02 Series Directional Valve, 24 VAC, G 1/8 Pipe, Man. Override w/o Detent, 5/2
The AVENTICS Series WV02 spool valves with anodized aluminium housing feature short switching times and low switching pressures, while offering low power consumption due to a seal with low friction co-efficient.
Features
- Activation: Electrically
- Nominal flow Qn: 500 l/min
- Switching principle: 5/2
- Compressed air connection output: G 1/8
- Working pressure min.: 2 bar
- Working pressure max: 10 bar
- DC operating voltage: 24 V
- Voltage tolerance DC: -10% / +10%
- Manual override: without detent
- Electrical connection type: Plug
- Electrical connection size: ISO 15217, form C
- Sealing principle: Soft Seal
- Pilot: Internal
- Pilot valve width: 15 mm
- Valve type: Spool valve, positive overlapping
- Connection type: Pipe connection
- Return: with spring/air spring return
- Control pressure min.: 2 bar
- Control pressure max.: 10 bar
- Min. ambient temperature: 0 °C
- Max. ambient temperature: 50 °C
- Min. medium temperature: 0 °C
- Max. medium temperature: 60 °C
- Medium: Compressed air
- Max. particle size: 5 µm:
