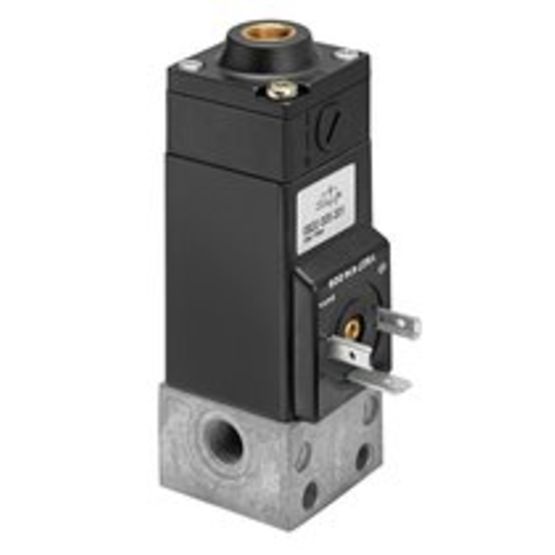

Representative photo. Please check item description for details.

AVENTICS DO35 Series 3/2 Directional Poppet Valve NO, 230 VAC, EN 175301 Plug, Manual Override w/Detent

https://www.branom.com/web/image/product.template/207229/image_1920?unique=c26756c
(0 review)

Features

  • Activation: Electrically
  • Switching principle: 3/2, with spring return
  • Function: NC
  • Compressed air connection output: G 1/8
  • Compressed air connection input: G 1/8
  • Compressed air connection, exhaust: G 1/8
  • Working pressure min.: 0 bar
  • Working pressure max: 10 bar
  • Operational voltage AC at 50 Hz: 230 V
  • Voltage tolerance AC 50 Hz: -10% / +10%
  • Manual override: with detent
  • Electrical connection type: Plug
  • Electrical connection size: EN 175301-803, form A
  • Valve type: Poppet valve
  • Sealing principle: Soft Seal
  • Connection type: Pipe connection
  • Min. ambient temperature: -10 °C
  • Min. medium temperature: 50 °C, -10 °C
  • Medium: Compressed air
  • Max. particle size: 5 µm
  • Oil content of compressed air min.: 0 mg/m³
  • Oil content of compressed air max.: 5 mg/m³
  • Nominal flow Qn 1 to 2: 140 l/min
  • Nominal flow Qn 2 to 3: 130 l/min
  • Holding power AC 50 Hz: 14 VA:

$ 160.40 160.4 USD $ 160.40

$ 160.40

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Features

    • Activation: Electrically
    • Switching principle: 3/2, with spring return
    • Function: NC
    • Compressed air connection output: G 1/8
    • Compressed air connection input: G 1/8
    • Compressed air connection, exhaust: G 1/8
    • Working pressure min.: 0 bar
    • Working pressure max: 10 bar
    • Operational voltage AC at 50 Hz: 230 V
    • Voltage tolerance AC 50 Hz: -10% / +10%
    • Manual override: with detent
    • Electrical connection type: Plug
    • Electrical connection size: EN 175301-803, form A
    • Valve type: Poppet valve
    • Sealing principle: Soft Seal
    • Connection type: Pipe connection
    • Min. ambient temperature: -10 °C
    • Min. medium temperature: 50 °C, -10 °C
    • Medium: Compressed air
    • Max. particle size: 5 µm
    • Oil content of compressed air min.: 0 mg/m³
    • Oil content of compressed air max.: 5 mg/m³
    • Nominal flow Qn 1 to 2: 140 l/min
    • Nominal flow Qn 2 to 3: 130 l/min
    • Holding power AC 50 Hz: 14 VA:
