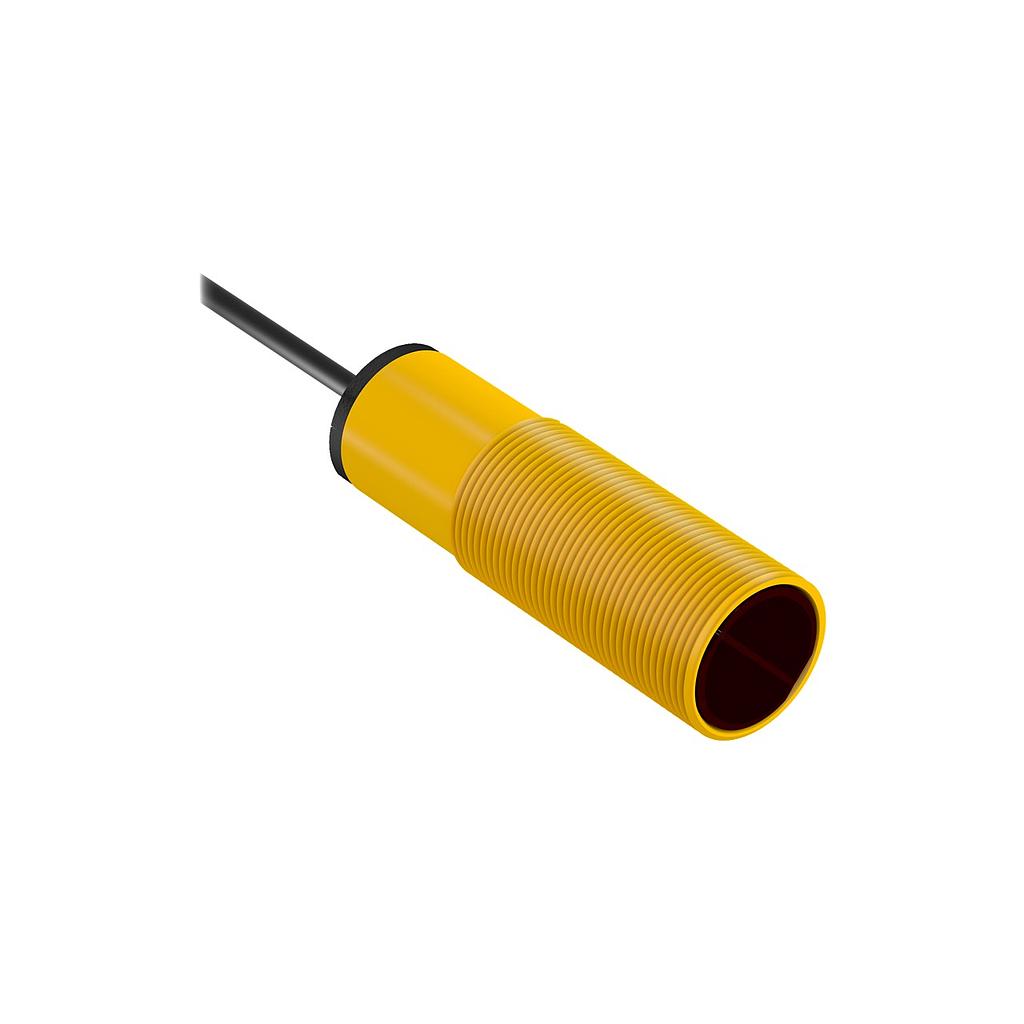

4-PIN EURO 6IN PUR (S18SP6DQPMA)

https://www.branom.com/web/image/product.template/52613/image_1920?unique=c26756c
(0 review)

Features:

  • S18SP6DQPMA 4-PIN EURO 6IN PUR
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67/69
  • Repeatability (µs): 750
  • Sensing Beam: Infrared LED
  • Housing Style: Barrel
  • Max Sensing Distance: 100 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12 (Euro)
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 3 ms
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Barrel Diameter: 18
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Pigtail PUR QD
  • NEMA / UL: NEMA 6P
  • Feature: Health/Marginal Signal Output: Yes
  • Indicator Type: LED

$ 103.00 103.0 USD $ 103.00
