Wika Series HPBV High Pressure Ball Valve, 316L SS, 3/8" NPTF to 3/8" NPTF, 15000 psi, 0.25 in. (6.4 mm) Bore

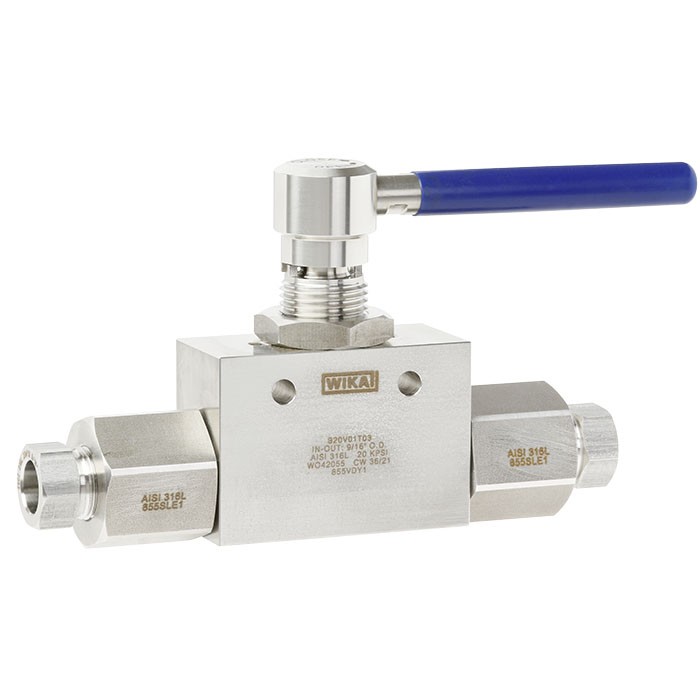

Representative photo. Please check item description for details.

Wika Series HPBV High Pressure Ball Valve, 316L SS, 3/8" NPTF to 3/8" NPTF, 15000 psi, 0.25 in. (6.4 mm) Bore

https://www.branom.com/web/image/product.template/510561/image_1920?unique=c26756c
(0 review)

Applications

  • Process industry: Oil & gas, petrochemical, chemical industries, power generation, water and wastewater
  • For liquid media (e.g. water, hydraulic oil) in high-pressure applications
  • Test benches (e.g. for hydraulic components)
  • High-pressure panels
  • Wellhead control panels (WHCPs) and hydraulic power units (HPUs)

Special features

  • Maximum safety ensured by blow-out proof valve stem and ball
  • Low-torque operation combined with long service life due to special valve design
  • Minimum pressure drop assured by straight-through flow path
  • Bidirectional flow capability
  • Nominal pressures of 10,000 psi [689 bar], 15,000 psi [1,034 bar] or 20,000 psi [1,379 bar] depending on the connection size

Features

  • HPBV 15000 PSI 2W SV F/F 3/8 NPT 316L
  • High Pressure Ball Valves
  • Rated Pressure: 15000 PSI
  • Body Pattern: Two way straight valve F/F
  • Size and Connection: 3/8" NPT
  • Internal bore: 6.4 mm [0.25"]
  • Body Material: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
  • Spindle tip material: Stainless Steel A564 17-4-PH – 1.4542 - S17400
  • Packing Material: PTFE glass filled
  • Seats Material: PEEK
  • O-Ring Material: FKM -15/+180°C [5/+356°F]
  • Handle: T-bar handle from stainless steel 316L
  • Mounting: Panel mounting
  • Certificates: 3.1 standard certificate as per EN 10204, all wetted parts material

  • Measurement Maximum
  • Process Connection Type
  • Instrument Connection Size
  • Instrument Connection Type
  • Valve Material
  • Pressure Rating
  • Bore Size
  • Measurement Minimum
  • Packings
  • O-Ring Material
  • Valve Position

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Applications

  • Process industry: Oil & gas, petrochemical, chemical industries, power generation, water and wastewater
  • For liquid media (e.g. water, hydraulic oil) in high-pressure applications
  • Test benches (e.g. for hydraulic components)
  • High-pressure panels
  • Wellhead control panels (WHCPs) and hydraulic power units (HPUs)

Special features

  • Maximum safety ensured by blow-out proof valve stem and ball
  • Low-torque operation combined with long service life due to special valve design
  • Minimum pressure drop assured by straight-through flow path
  • Bidirectional flow capability
  • Nominal pressures of 10,000 psi [689 bar], 15,000 psi [1,034 bar] or 20,000 psi [1,379 bar] depending on the connection size

Features

  • HPBV 15000 PSI 2W SV F/F 3/8 NPT 316L
  • High Pressure Ball Valves
  • Rated Pressure: 15000 PSI
  • Body Pattern: Two way straight valve F/F
  • Size and Connection: 3/8" NPT
  • Internal bore: 6.4 mm [0.25"]
  • Body Material: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
  • Spindle tip material: Stainless Steel A564 17-4-PH – 1.4542 - S17400
  • Packing Material: PTFE glass filled
  • Seats Material: PEEK
  • O-Ring Material: FKM -15/+180°C [5/+356°F]
  • Handle: T-bar handle from stainless steel 316L
  • Mounting: Panel mounting
  • Certificates: 3.1 standard certificate as per EN 10204, all wetted parts material

Specifications

Measurement Maximum 0
Process Connection Type NPT-Female
Instrument Connection Size 3/8"
Instrument Connection Type NPT-Female
Valve Material 316L SS
Pressure Rating 15000 psi
Bore Size 0.25 in. (6.4 mm)
Measurement Minimum 0
Packings PEEK
O-Ring Material FKM
Valve Position Two Way, Angled
