  3. Wika IV190 Series IV190 Series Standard 90° Angled Valve, 316/316L SS, 1/2" NPTM to 1/2" NPTF, 10000 psi
Public Pricelist (v2)

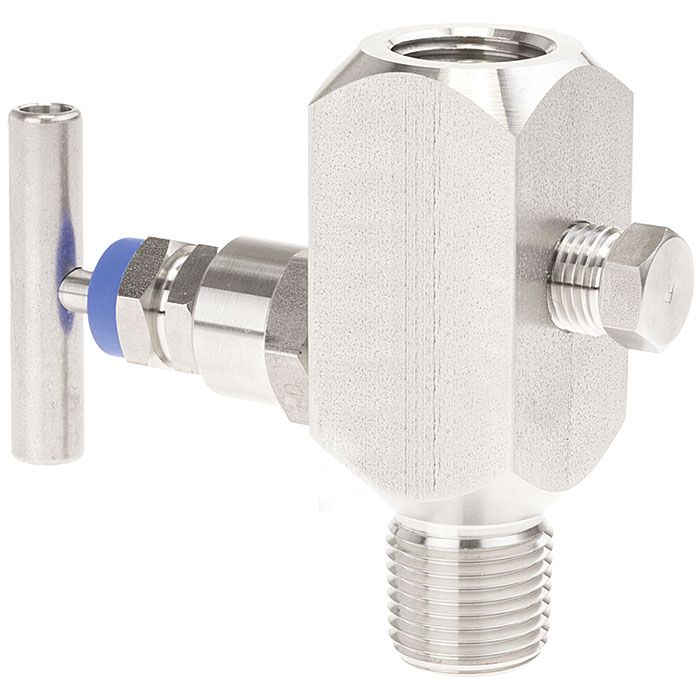

Wika IV190 Series IV190 Series Standard 90° Angled Valve, 316/316L SS, 1/2" NPTM to 1/2" NPTF, 10000 psi
Representative photo. Please check item description for details.

Wika IV190 Series IV190 Series Standard 90° Angled Valve, 316/316L SS, 1/2" NPTM to 1/2" NPTF, 10000 psi

https://www.branom.com/web/image/product.template/512496/image_1920?unique=c26756c
(0 review)

Applications of the needle valve

  • Shut off and vent pressure measuring instruments
  • For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
  • Process industry: Oil & gas, petrochemical, chemical industries, power generation, water and wastewater

Special features of the needle valve

    • Low-wear design due to non-rotating spindle tip in the bonnet
    • Low torque and smooth operation of valve handle even at high pressure
    • Enhanced safety due to blow-out proof bonnet design
    • Valve seat tested for leak tightness per BS6755 / ISO 5208 leak rate A
    • Customer-specific combination of valves and instruments (hook-up) on request

Features

  • IV19 1/2 NPT M - 1/2 NPT F 316/316L PTFE 10k
  • Design : Angled Connections 90°
  • 1/2 NPT male - 1/2 NPT female
  • Material body: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
  • Nominal pressure: 10000 psi / 689 bar
  • Material packing: PTFE
  • NACE MR0175 Sour Gas Service &amp
  • Inspection certificate 3.1, EN 10204, all wetted parts material
