Representative photo. Please check item description for details.

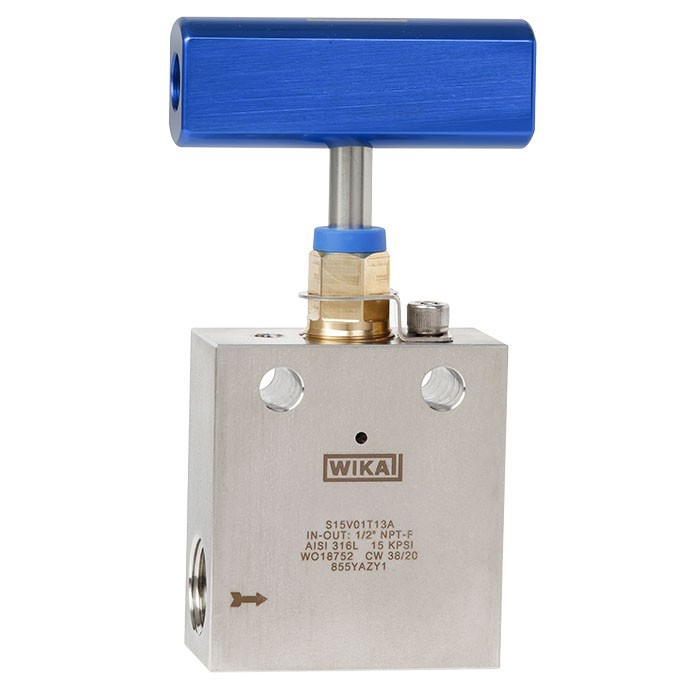

Wika HPNV Series High Pressure Needle Valve, 316L SS, 1/4" NPTF to 1/4" NPTF, 15000 psi
Applications
- Oil and gas, chemical industry, machine building and automation
- For injection systems, test benches, hydraulic power packs, blow-out protection
- Blasting/cutting with water, high-pressure cleaning
Special features
- Low-wear design due to non-rotating spindle tip in the bonnet
- Low torque and smooth operation of valve handle even at high pressure
- Leak-tested tightness in accordance with BS6755 / ISO 5208 leakage rate A
- Large selection of materials and configurations available
- Customer-specific combination of valves and measuring instruments (instrument hook-up) on request
Features
- HPNV 15000 PSI 2W SV F/F 1/4 NPT 316L
- High Pressure Needle Valves
- Rated Pressure: 15000 PSI
- Body Pattern: Two way straight valve F/F
- Size and Connection: 1/4" NPT
- Body Material: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
- Spindle tip material: Stainless Steel A564 17-4-PH – 1.4542 - S17400
- Packing Material: PTFE glass filled
- Bonnet design: Standard
- Handle: Standard Anodized Aluminium handle (EN AW-6060 T6)
- Certificates: 3.1 standard certificate as per EN 10204, all wetted parts material
Applications
- Oil and gas, chemical industry, machine building and automation
- For injection systems, test benches, hydraulic power packs, blow-out protection
- Blasting/cutting with water, high-pressure cleaning
Special features
- Low-wear design due to non-rotating spindle tip in the bonnet
- Low torque and smooth operation of valve handle even at high pressure
- Leak-tested tightness in accordance with BS6755 / ISO 5208 leakage rate A
- Large selection of materials and configurations available
- Customer-specific combination of valves and measuring instruments (instrument hook-up) on request
Features
- HPNV 15000 PSI 2W SV F/F 1/4 NPT 316L
- High Pressure Needle Valves
- Rated Pressure: 15000 PSI
- Body Pattern: Two way straight valve F/F
- Size and Connection: 1/4" NPT
- Body Material: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
- Spindle tip material: Stainless Steel A564 17-4-PH – 1.4542 - S17400
- Packing Material: PTFE glass filled
- Bonnet design: Standard
- Handle: Standard Anodized Aluminium handle (EN AW-6060 T6)
- Certificates: 3.1 standard certificate as per EN 10204, all wetted parts material
Specifications
| Valve: Design | Needle |
