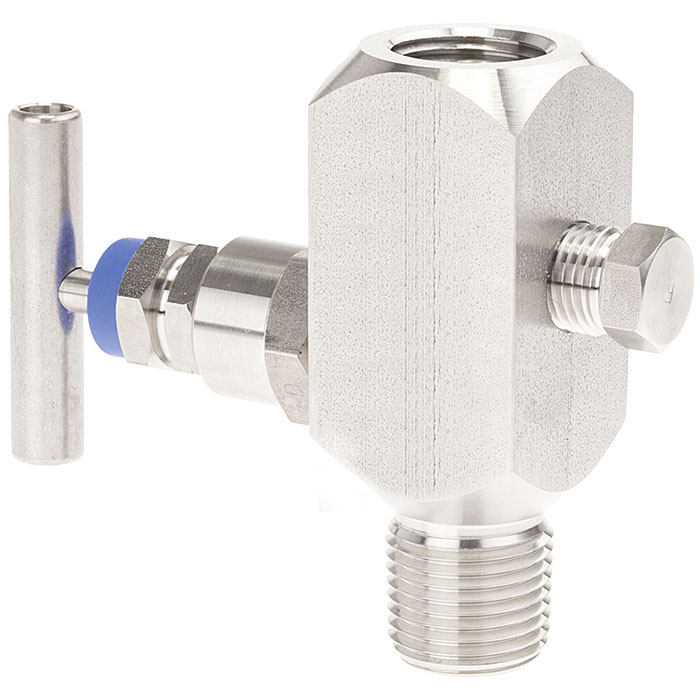

Representative photo. Please check item description for details.
Wika IV2F2 Series IN2F2 Series Flat, Direct-Mount In-Line Valves, 316/316L SS, IEC 61518 to IEC 61518-B, 6000 psi
Applications of the needle valve
- Shut off and vent pressure measuring instruments
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Process industry: Oil & gas, petrochemical, chemical industries, power generation, water and wastewater
Special features of the needle valve
- Low-wear design due to non-rotating spindle tip in the bonnet
- Low torque and smooth operation of valve handle even at high pressure
- Enhanced safety due to blow-out proof bonnet design
- Valve seat tested for leak tightness per BS6755 / ISO 5208 leak rate A
- Customer-specific combination of valves and instruments (hook-up) on request
Features
- IV2F2 IEC - IEC B 316/316L VENT 1/4NPT F PTFE 6k
- Block and bleed valve, 2-valve manifold
- Design: Flat, Direct Mounting, in-line
- IEC 61518 - IEC 61518-B
- Material body: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
- with bracket holes
- Vent connection: 1/4" NPT female with plug
- Nominal pressure: 6000 psi / 420 bar
- Material packing: PTFE
- Bolt for manifolds: in carbon steel, 8.8
- NACE MR0175 Sour Gas Service &
- Inspection certificate 3.1, EN 10204, all wetted parts material
