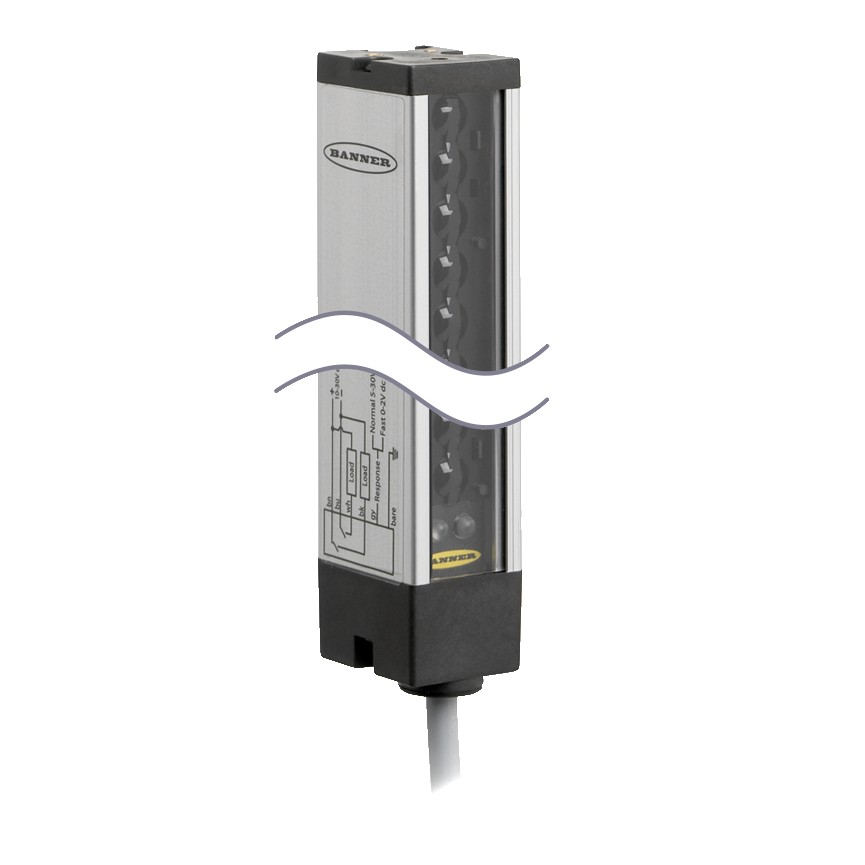

Representative photo. Please check item description for details.

LX Series: Receiver (LX30RQ)

https://www.branom.com/web/image/product.template/52470/image_1920?unique=c26756c
(0 review)

Features:

  • LX Series: Receiver
  • Standard Range
  • Range: Normal 300 mm to 2 m
  • Input 10-30 V dc
  • Output: Bipolar: 1 NPN
  • 1 PNP
  • Euro 150 mm (6 in) Pigtail Quick-Disconnect
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP65
  • Housing Style: Array
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Receiver
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Aluminum
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Output: Bipolar (NPN & PNP)
  • Number of Pins: 5
  • Operation: Dark Operate
  • Feature: Remote Teach: No
  • Min Object Detection: 9.5 mm
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 0.2 m
  • Indicator Type: LED
  • Slot Depth/Array Length (mm): 762 mm
  • Slot Overall Depth (mm): 25.4 mm

$ 1,397.00 1397.0 USD $ 1,397.00

$ 1,397.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
