K50 Pro Compact Audible With Io-Link (K50PCLKAQ)
Representative photo. Please check item description for details.

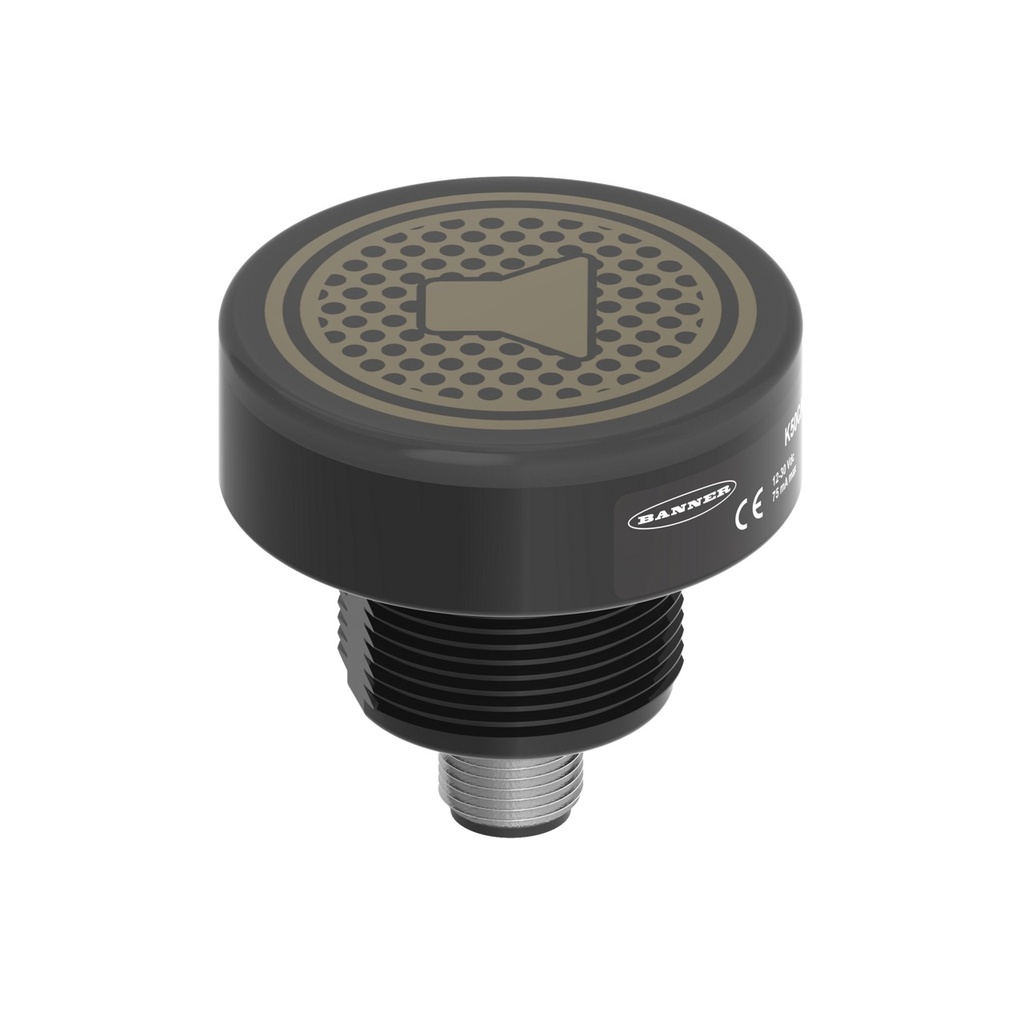

K50 Pro Compact Audible With Io-Link (K50PCLKAQ)

https://www.branom.com/web/image/product.template/203663/image_1920?unique=c26756c
(0 review)

Features:

    K50 Pro Compact Audible with IO-Link; Voltage: 18-30 V dc; Housing: Polycarbonate; IP66 IP67 IP69K; Input: Bimodal; M12 5-pin Integral Connector
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 25 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP67/69
  • Housing Style: Base Mount - Flat Window
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • Feature: IO Link: Yes
  • Feature: Modbus RTU: No
  • Physical Dimensions: 50.0 x 69.6 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Max Audible Intensity: 92 dB @ 1 m
  • Supply Voltage: 18-30 VDC
  • Feature: Quick Disconnect: Yes
  • Min Audible Intensity @ 1m: 83 dB
  • Feature: Audible: Audible Only
  • Housing Color: Black
  • Quick Disconnect Type: M12
  • Audible Operating Frequency (kHz): 2.9
  • Product Size (mm): 50 mm
  • Number of Input Pins/Conductors: 5
  • Input Type: Communication Protocol
  • Max Op. Relative NC Humidity: 90% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 250 ms
  • Feature: Chemical Resistant: No
  • Audible Alarm Type: Programmable
  • Storage Temp: -40 to 70 °C
  • Feature: I/O Block Compatible: Yes
  • Connection Type: Integral QD

$ 128.00 128.0 USD $ 128.00

$ 128.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
