Emergency Stop: Flush Mounting 40 Mm Push Button (SSA-EB1PLGR-02ED1Q5B)

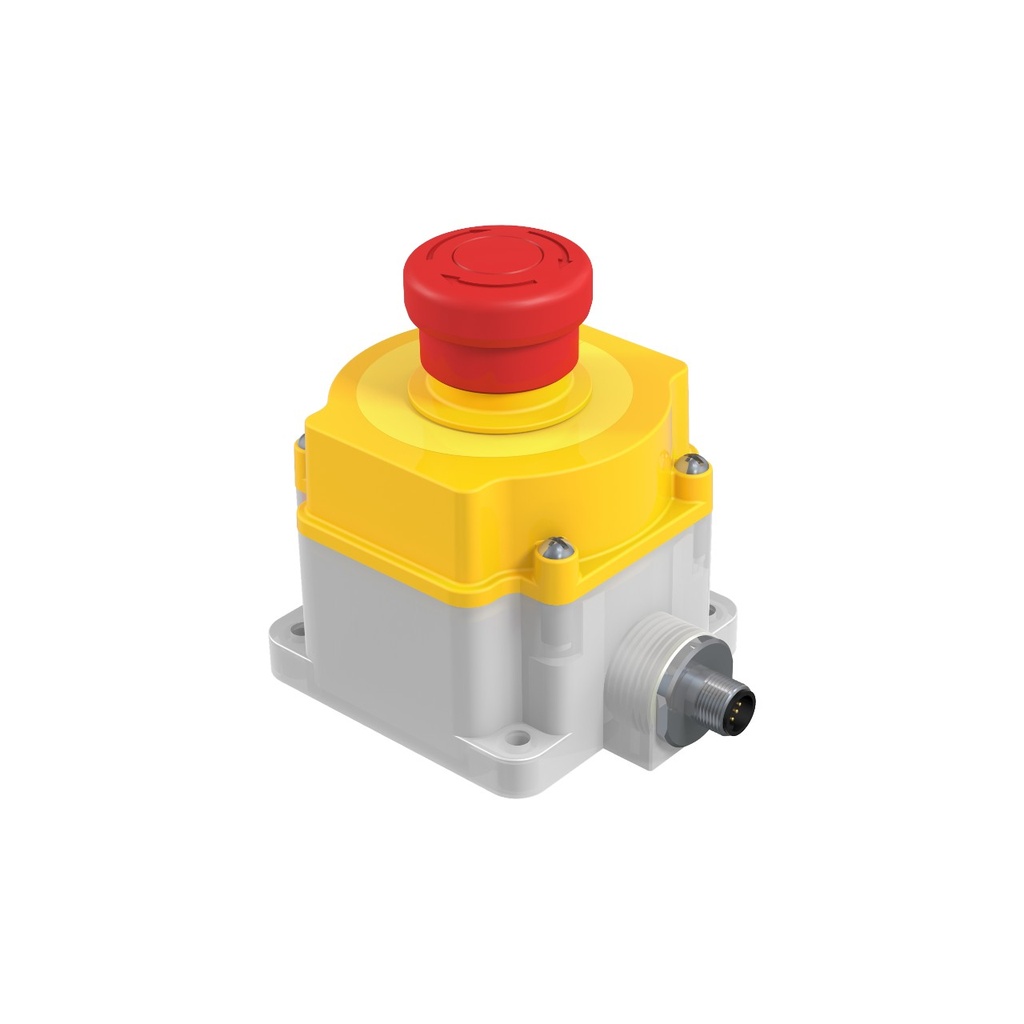

Representative photo. Please check item description for details.

Emergency Stop: Flush Mounting 40 Mm Push Button (SSA-EB1PLGR-02ED1Q5B)

https://www.branom.com/web/image/product.template/202159/image_1920?unique=c26756c
(0 review)

Features:

    Emergency Stop: Flush Mounting 40 mm Push Button; Environ. Rating: IP65; Lighted; Color: Green, Red Flashing; 2 N.C. safety contacts; Siemens ET200Pro; 5 Pin Euro-style Quick-Disconnect Connector
    • Valve: Actuation: Twist/Pull-to-Release
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 55 °C
  • Ingress Protection: IP65
  • Housing Style: Base
  • Device Type: Push Button
  • Housing Material_: Polycarbonate
  • Light Color: Red
  • Physical Dimensions: 103 x 110 x 81 mm
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Contact Quantity: 2 NC
  • Actuated Color: Red - Flash
  • Actuator/Button Material: Thermoplastic
  • Contact Rating: 2 A @ 24 VDC
  • Mounting Thread/Style: Flat
  • Feature: Illuminated: Yes
  • Feature: Lockable: No
  • Illumination Type: Base
  • Armed Color (Solid): Green
  • Connection Type: M12
  • Button Diameter: 40 mm
  • Feature: Button Shroud: No
  • Stop Signal Color (Solid): Red
  • Feature: In-Series Diagnostics: No
  • Feature: Actuation: Twist/Pull-to-Release

$ 263.00 263.0 USD $ 263.00

$ 263.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share
