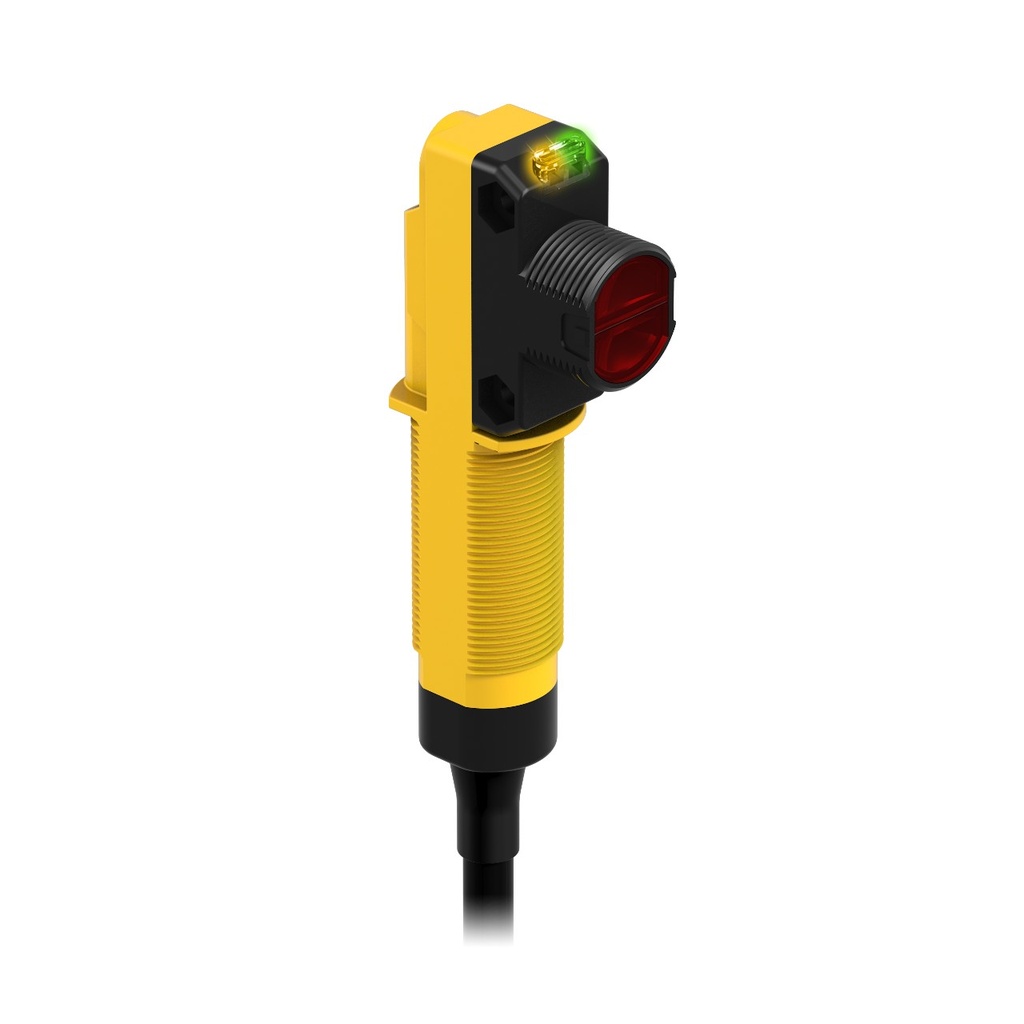

WORLD-BEAM QS18 Series: Polarized Retro (QS18RNWLPC1)

https://www.branom.com/web/image/product.template/52410/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS18 Series: Polarized Retro
  • Range: 3.5 m
  • Input: 20-270 V ac/dc
  • Output: Dark Operate Solid State N-MOSFET
  • 2 m (6.5 ft) Cable
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 70 if < 140V, 55 if > 140V °C
  • Lens Material: PMMA
  • Power Supply: 20-270 VAC/VDC
  • Delay at Power-Up: 100 ms DC / 300 ms AC
  • Ingress Protection: IP67
  • Repeatability (µs): 1500
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 630
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 3500 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 95% @ 55 °C
  • Housing Material_: ABS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 8.3 ms
  • Operation: Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 130.00 130.0 USD $ 130.00

$ 130.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
