Tl70 Pro Tower Light With Io-Link (TL70P3APKQ)

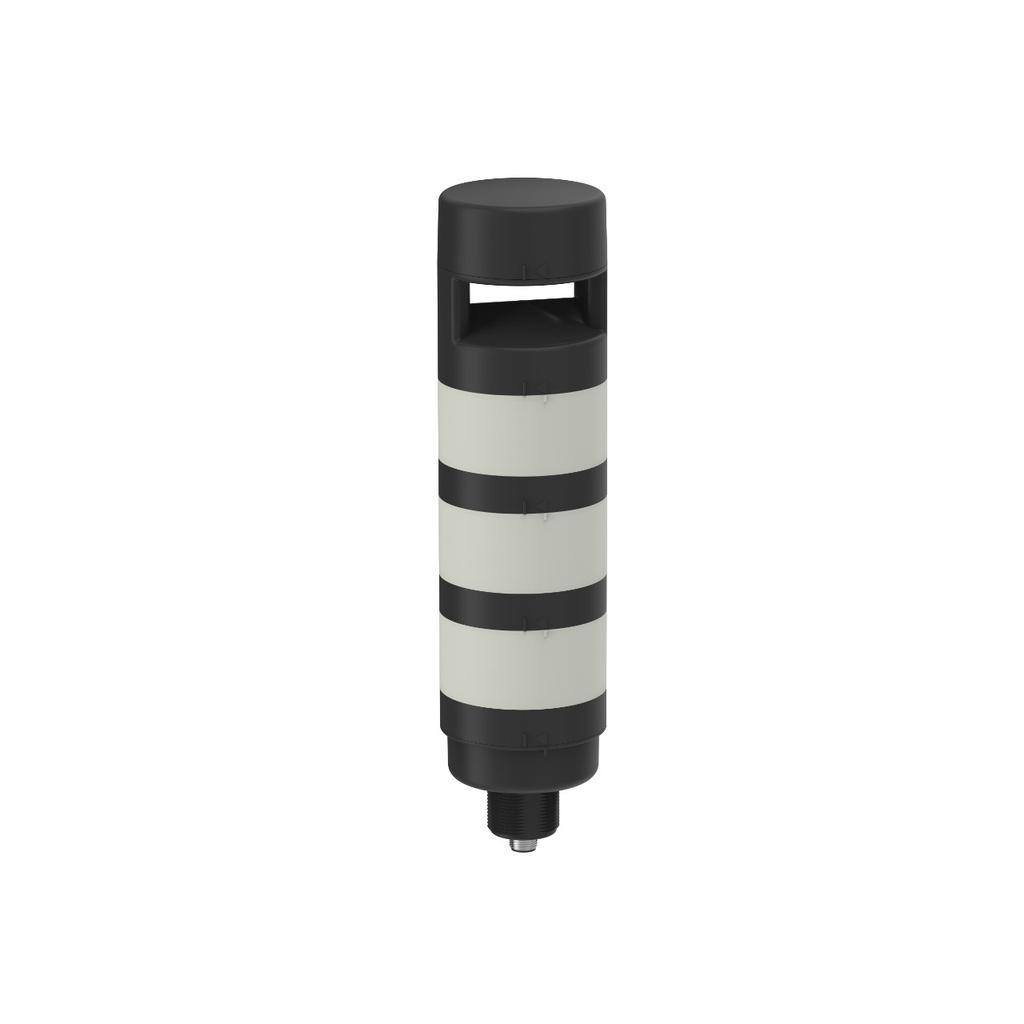

Representative photo. Please check item description for details.

Tl70 Pro Tower Light With Io-Link (TL70P3APKQ)

https://www.branom.com/web/image/product.template/205414/image_1920?unique=c26756c
(0 review)

Features:

    TL70 Pro Tower Light with IO-Link; 3 Lighted Segments; Programmable Audible; 18-30 V dc; IP65; Black Housing; Colors: Multicolor; M12 4-pin Quick-Disconnect
    • Power: DC
  • Feature: Display: No
  • Max Current Color: 420 mA
  • Max Current - Audible Alarm (mA): 290 mA
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP65
  • Housing Style: Base Mount - Tower
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: Yes
  • Feature: Modbus RTU: No
  • Physical Dimensions: 70.0 x 268.6 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Max Audible Intensity: 85 dB @ 1 m
  • Supply Voltage: 18-30 VDC
  • Feature: Quick Disconnect: Yes
  • Color Technology: RGB Configurable
  • Feature: Audible: Yes
  • Color Option 1: RGB
  • Housing Color: Black
  • Color Input Control: Communication Protocol
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: IO-Link Controlled
  • Quick Disconnect Type: M12
  • Audible Operating Frequency (kHz): 2.5
  • Number of Colors / Segments: 3
  • Product Size (mm): 70 mm
  • Number of Input Pins/Conductors: 4
  • Input Type: Communication Protocol
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 20 ms
  • Feature: Chemical Resistant: No
  • Audible Alarm Type: Programmable Single Tone
  • Storage Temp: -40 to 70 °C
  • Dimming Option: Programmable
  • Number of Tower Light Segments: 4
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 4X

$ 617.00 617.0 USD $ 617.00
