T30R Near Range Radar Sensor (T30R-1515-CKUQP)
Representative photo. Please check item description for details.

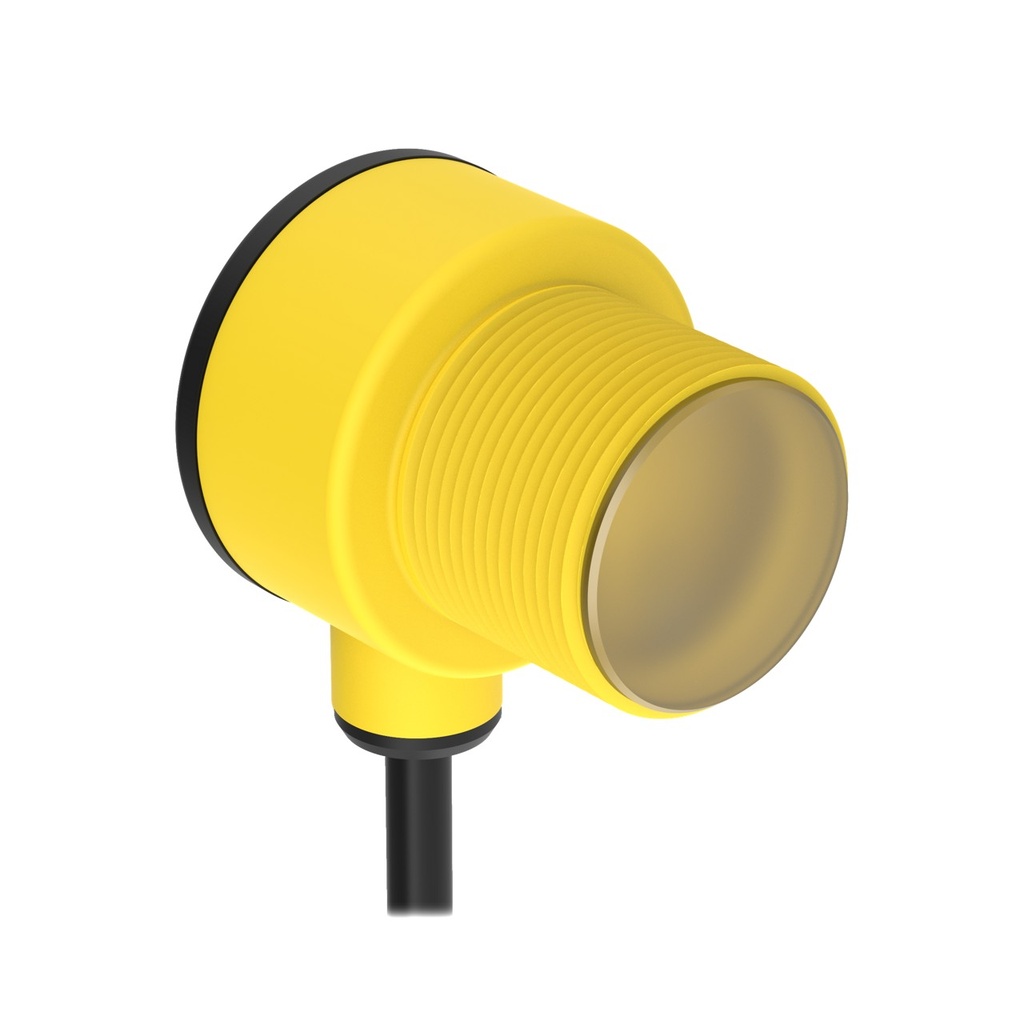

T30R Near Range Radar Sensor (T30R-1515-CKUQP)

https://www.branom.com/web/image/product.template/204641/image_1920?unique=c26756c
(0 review)

Features:

    T30R Near Range Radar Sensor; Range 6 m; Input 10-30 V dc; 0-10 V Analog, 1 NPN/PNP Configurable with IO Link; 150 mm cable with 5 pin M12 QD
    • Max Off-State Leakage Current (µA): <40 µA @ 30 VDC (NPN) / <10 µA @ 30 VDC (PNP)
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 65 °C
  • Power/Current Consumption (exclusive of load): 100 mA max @ 24 V dc
  • Power Supply: 12-30 VDC
  • Delay at Power-Up: 300 ms
  • Ingress Protection: IP67
  • Sensing Beam: Radar
  • Housing Style: Barrel
  • Max Sensing Distance: 6000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: PBT
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Analog Output: 0 to 10 VDC
  • Feature: IO Link: Yes
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Chemical Resistant: No
  • Number of Pins: 5
  • Adjustments: Software; Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Analog & Discrete
  • Barrel Diameter: 30
  • Min Response Time: 6 ms
  • Vibration: MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Mechanical Shock: MIL-STD-202G, Meth. 213B, conditions H&I (Shock: 75G with unit operation: 100G for non-operation).
  • Output Saturation Voltage PNP Outputs: < 3 V @ 50 mA
  • Analog Resolution/Discrete Repeatability: < 1 mm at Excess Gain >= 10x < 10 mm at Excess Gain < 10x
  • Max Discrete (Switched) Output (mA): 50
  • Min Sensing Distance: 100 mm
  • Feature: Clear Object Detection: Yes
  • Min Window Size: 20 mm
  • Remote Teach and Laser Control Input Impedence: 55 kΩ
  • Discrete (Switched) Outputs: 1 NPN/PNP Configurable
  • Max Measurement Range: 5-20 m
  • Output Protection: Protected against short circuit
  • SSI: No
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Output Saturation Voltage NPN Outputs: <3 V @ 50 mA
  • Analog Voltage Output Rating: 2.5 kΩ min. load impedance
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Operating Frequency: 122 GHz
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 0.15 m
  • Barrel Thread: M30
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: Yes
  • Radar Beam Pattern (H x V °): 15 x 15
  • Indicator Type: LED
  • Discrete Output Hysteresis: 50 - 5000 mm, Manual Adjust
