Description
Features:

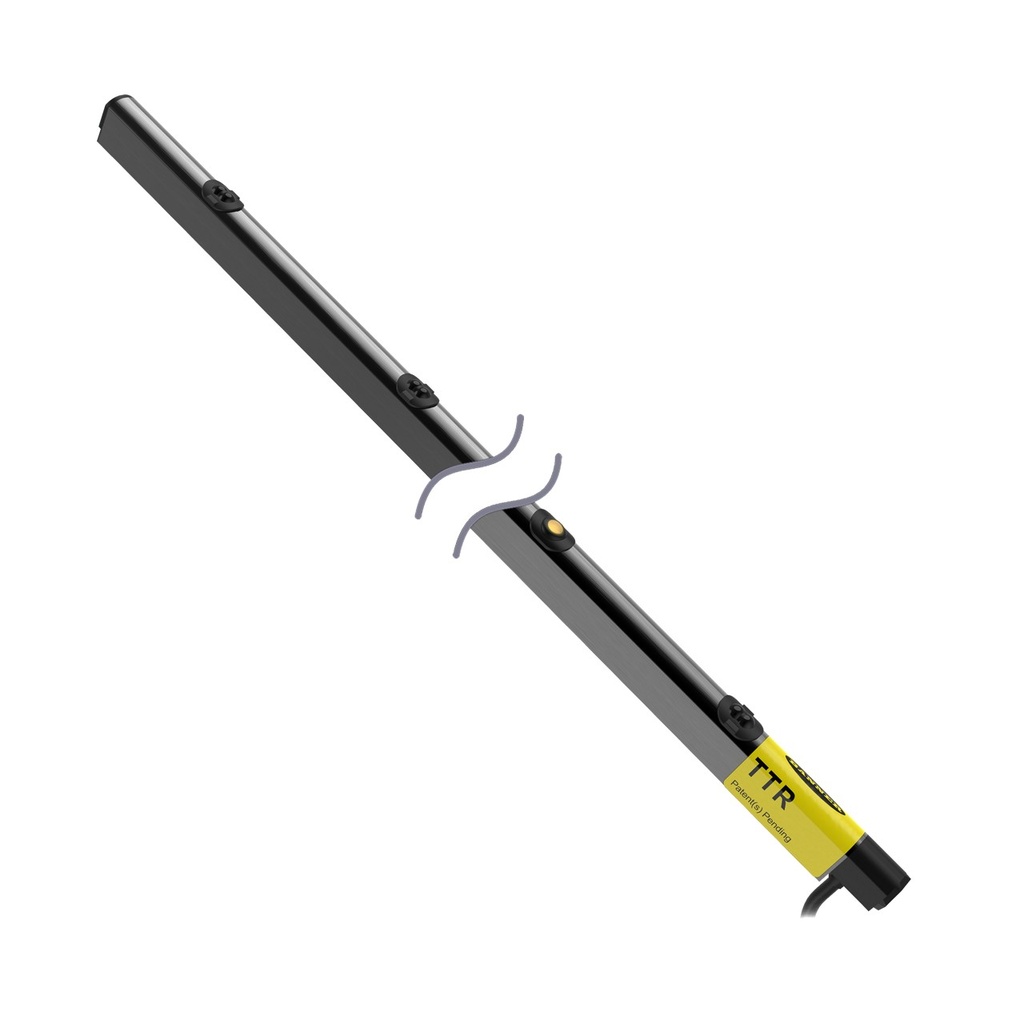

- TTR Series 3 Beam Sensor Array 25.6 inch Between Frame; Beam Spacing: 186.2mm Standard Gain Range: 120mm ; Output: LO PNP Input: 18-30VDC; 2.0 m (6.5 ft) M8 male snap connector Endcaps T: T-slot mounting
- Min Operating Temperature: -10 °C
- Max Operating Temperature: 55 °C
- Lens Material: Polycarbonate
- Power Supply: 18-30 VDC
- Delay at Power-Up: 1500 ms
- Ingress Protection: IP50
- Housing Style: Roller Conveyor
- Max Sensing Distance: 120 mm
- Sensing Mode (Detailed): Diffuse
- Beam Spacing: 186.2 mm
- Max Relative Humidity: 95% @ 55 °C
- Number of Beams: 3
- Housing Material_: Black Anodized Aluminum
- Feature: Quick Disconnect: Yes
- Quick Disconnect Type: M8
- Output: PNP
- Number of Pins: 4
- Output Response Time: 1 ms
- Operation: Light Operate
- Adjustments: N/A
- Distance to First Beam: 138.8 mm
- Connection Type: Pigtail QD
- Cord/Cable Length: 2 m
- End Cap Type: T: T-Slot Mounting
- Last Beam Distance to End: 132.80 mm
- Indicator Type: Indicator LED
- Max Sensing Range: 120 mm
- Slot Depth/Array Length (mm): 650 mm
- Slot Overall Depth (mm): 19 mm
